M80-5S13442MC-01-331-00-000

34+1 Pos. Male Signal+Power Vertical SMT Conn. 101Lok

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Order Sample

Add to Favorites

Made to order

0 similiar products View products

Samacsys account required

Download

No login is required

Product Description

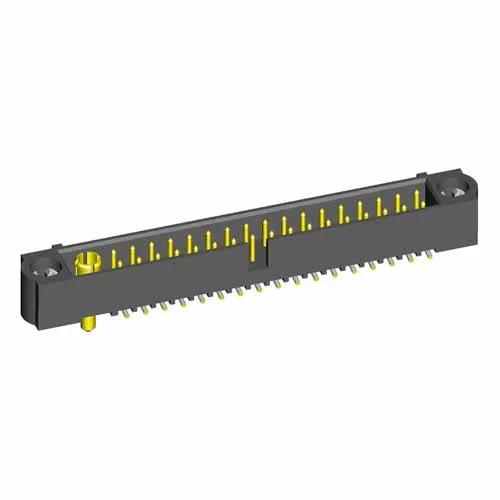

101Lok retainers, 34 x signal and 1 x power contacts assembled for vertical PCB connection. Surface Mount signal contacts, 3.5mm length PC Tail power contacts.
Signal: Gold finish on contact area, Tin finish on termination. Power: Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-5S13442MC-01-331-00-000 - 34+1 Pos. Male Signal+Power Vertical SMT Conn. 101Lok

Youtube video for M80-5S13442MC-01-331-00-000

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT) & PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

101Lok Bayonet Receptacle Fixing

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Mixed

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

100% Tin over Nickel (signal), Gold (power)

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze (signal), Beryllium Copper (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

2.197g

Overall Dimensions (L x W x D) in mm:

48.00 x 6.75 x 8.85

Height of Connector above PCB:

5.80mm

Length of Throughboard Tail:

3.10mm

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles
