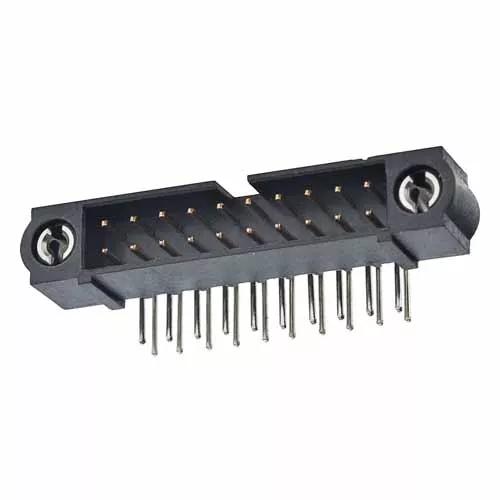

10+10 Pos. Male DIL Horizontal Throughboard Conn. 101Lok
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Made to order
6 similiar products View products
- Double Row, 3mm PC Tail connector with 101Lok retainers – 20 contacts (10+10).
- Gold finish on contact area, Tin/Lead finish on termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Max Solder Temperature: 235°C for 5 seconds
Style of Jackscrews:
101Lok Bayonet Receptacle Fixing
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.00 x 8.25 x 9.00
Height of Connector above PCB:
Length of Throughboard Tail:
