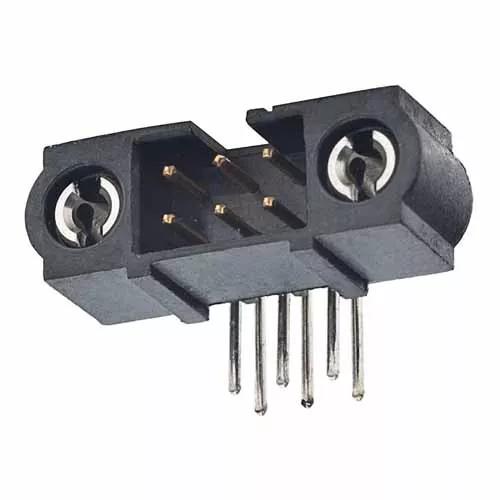

M80-5L10642MC

3+3 Pos. Male DIL Horizontal Throughboard Conn. 101Lok

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Add to Favorites

186 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row, 3mm PC Tail connector with 101Lok retainers – 6 contacts (3+3).
  • Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

101Lok Bayonet Receptacle Fixing

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.991g

Overall Dimensions (L x W x D) in mm:

16.00 x 8.25 x 9.00

Height of Connector above PCB:

6.00mm

Length of Throughboard Tail:

3.00mm
