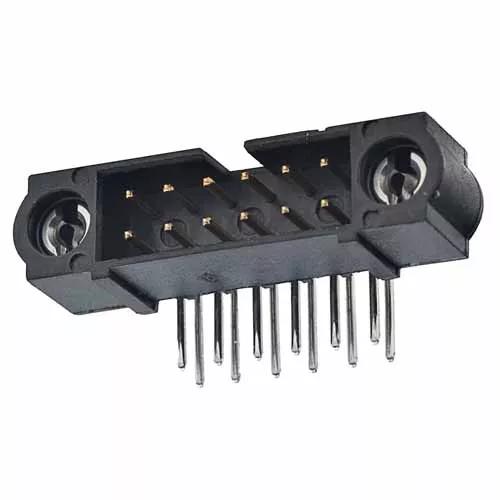

2+2 Pos. Male DIL Horizontal Throughboard Conn. 101Lok
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Samacsys account required
No login is required
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
101Lok Bayonet Receptacle Fixing
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
14.00 x 8.25 x 9.00
Height of Connector above PCB:
Length of Throughboard Tail:
