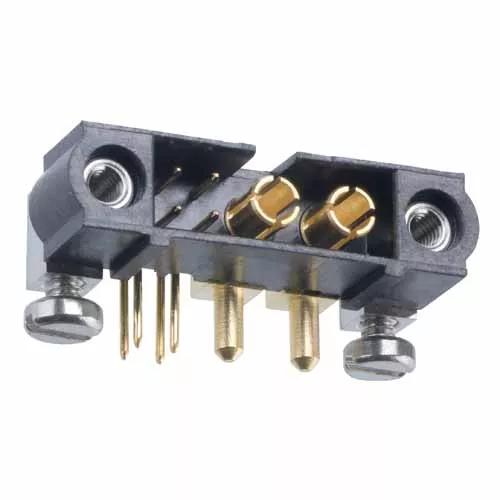

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Jackscrews + 5mm board mount (with slotted bolt), 4 x signal and 2 x power contacts assembled for horizontal PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
Gold finish on contact area and termination. For spare board mount bolts, order M80-2270000B.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size:
Ø0.5mm (signal)
Number of Rows:
Mixed
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
2
Number of Signal Contacts:
4
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze (signal), Beryllium Copper (power)
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
2.889g
Dimensions:
22.00 x 8.60 x 9.50
Thread Size:
M2
PC Tail Length:
3.00mm and 3.50mm
Height of Connector above PCB:
6.00mm
Downloads
Technical Drawing / Datasheet - M80-5L10405M5-02-333-00-000.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
Plating thickness on Datamate power and coax contacts
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical
Test Report HT078 - Datamate Mix-Tek 20A Power testing
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
RoHS - M80-5L10405M5-02-333-00-000
