Home > M80-5L10205MD-02-PM3-00-000
Active Product

M80-5L10205MD-02-PM3-00-000

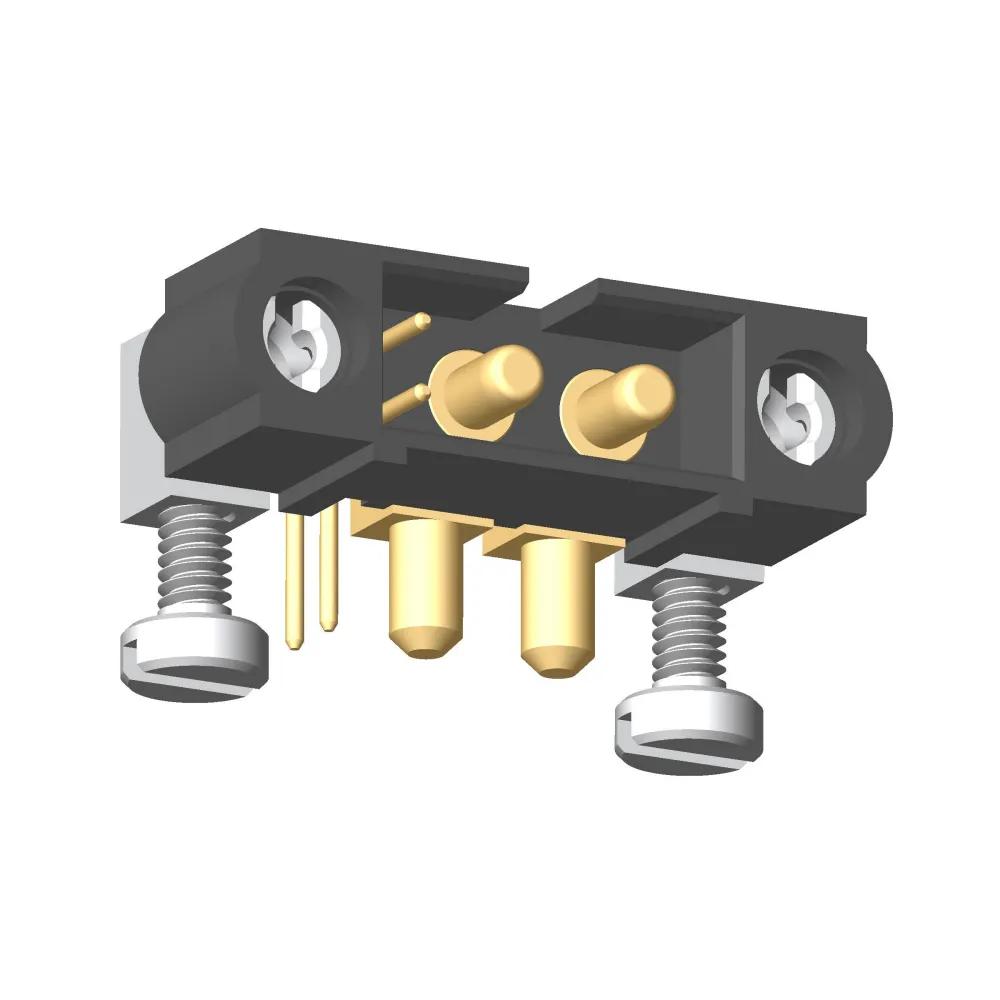

2+2 Pos. Male Signal+Power Horizontal Throughboard Conn. 101Lok

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Add to Favorites

Made to order

2 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • 101Lok retainers with 5mm board mount, 2 x signal and 2 x high power contacts assembled for horizontal PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail High Power contacts.
  • Gold finish on contact area and termination. For spare board mount bolts, order M80-2270000B.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

101Lok Bayonet Receptacle with Board Mount Stud

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

Mixed

Number of Signal Contacts:

2

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze (signal), Beryllium Copper (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

2.892g

Overall Dimensions (L x W x D) in mm:

20.00 x 8.60 x 9.50

Thread Size:

M2

Height of Connector above PCB:

6.00mm

Length of Throughboard Tail:

3.00mm & 3.50mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
