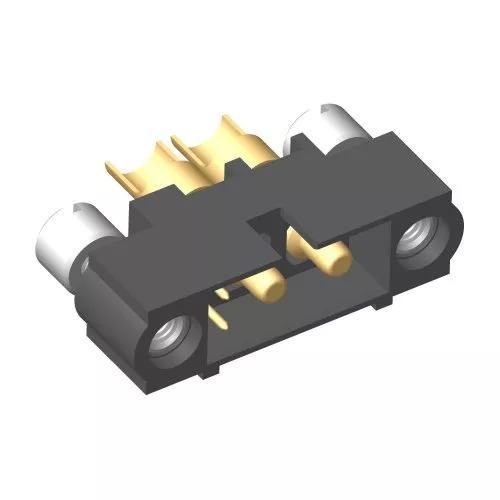

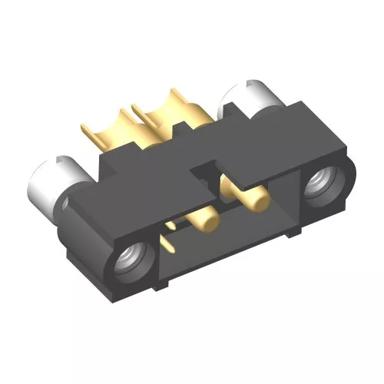

M80-5D10205M2-02-PM5-00-000
2+2 Pos. Male 22AWG+10AWG Cable Conn. Kit, Panel Mount
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Made to order
2 similiar products View products
Samacsys account required
No login is required
Product Description
- Complete kit: housing (with jackscrews + 3.5mm panel mount) with 2 x signal and 2 x high power contacts supplied loose. For spare panel mount nuts, order M80-2130000B.
- Rated to 40A nominal, Power solder contact suitable for 10AWG. Small Bore signal contact suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Solder + Crimp)
Cable Conductor Size:
24-28AWG + 10AWG
Mating Pin Size:
Ø0.5mm (signal)
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Internal Thread Jackscrew with Front Panel Mount Stud and Slotted Nuts (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
Mixed
Number of Signal Contacts:
2
Number of Special (Power or Coax) Contacts:
2
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass (signal), Beryllium Copper (power)
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Single Pack
Dimensions
Individual Part Weight:
2.358g
Overall Dimensions (L x W x D) in mm:
20.00 x 6.00 x 14.00
Thread Size:
M2
Mating Profiles:
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
Was this answer useful?
Can I use a Metal Backshell (M80-945 or M80-946) with this connector?
Sorry no, I’m afraid the metal backshells are not compatible with Datamate Mix-Tek connectors fitted with 10AWG High Power contacts. You will need to specify an alternative contact from the standard power contacts (33x or M80-33x), one that uses 12 to 20AWG cable. Do please contact our Experts if you need assistance specifying an alternative.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
Was this answer useful?
