Home > M80-5C14405MU
Active Product

M80-5C14405MU

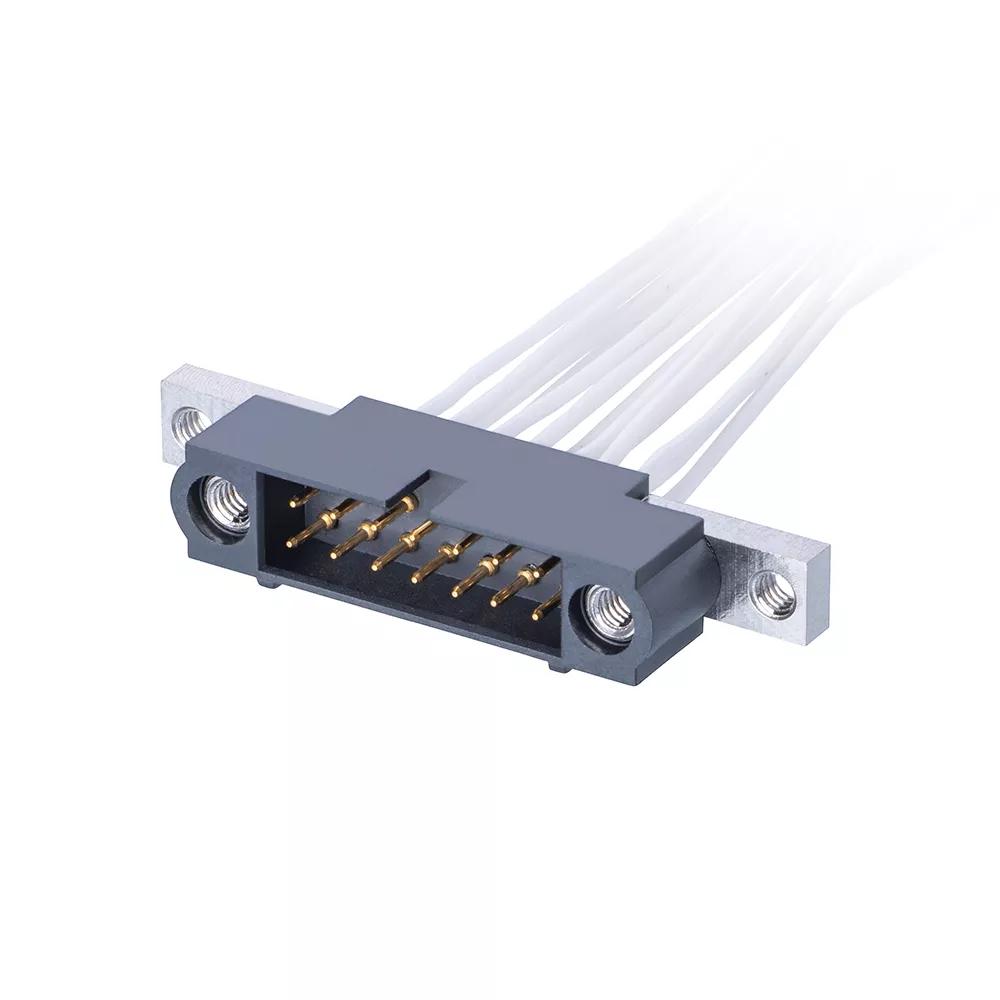

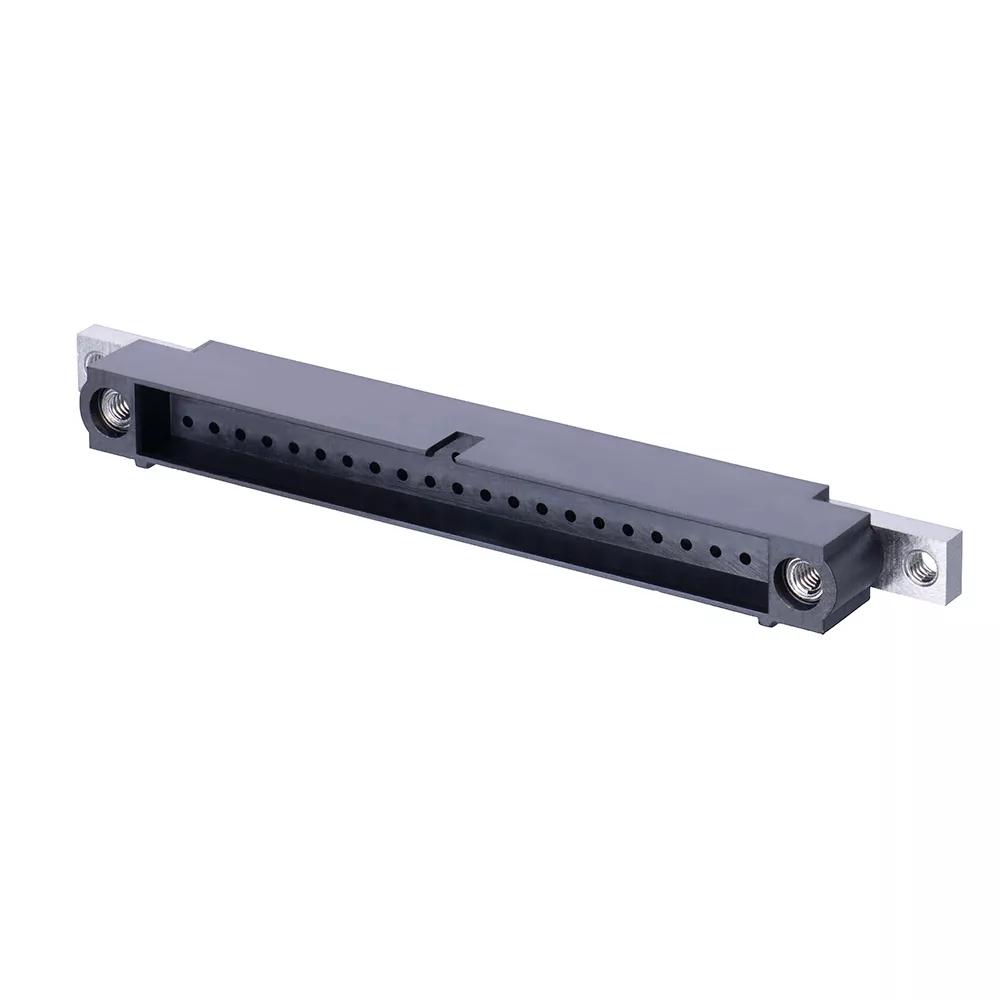

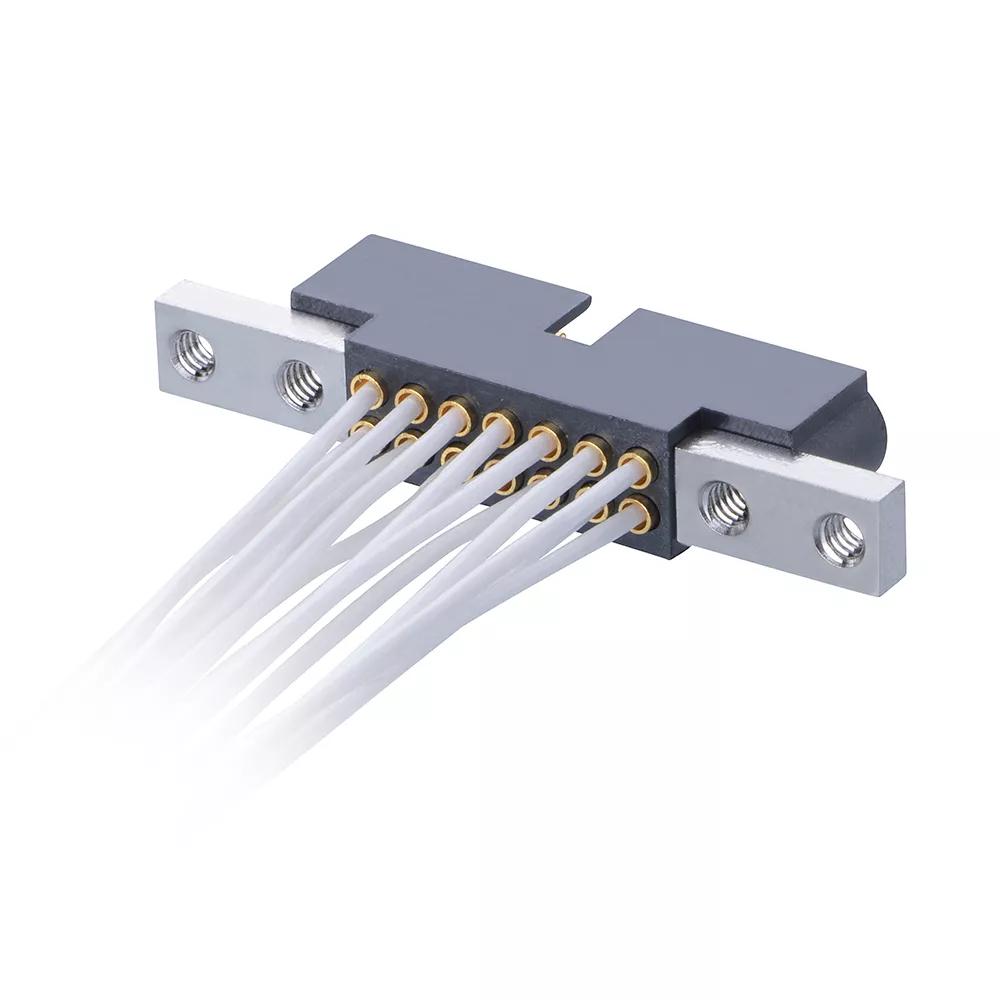

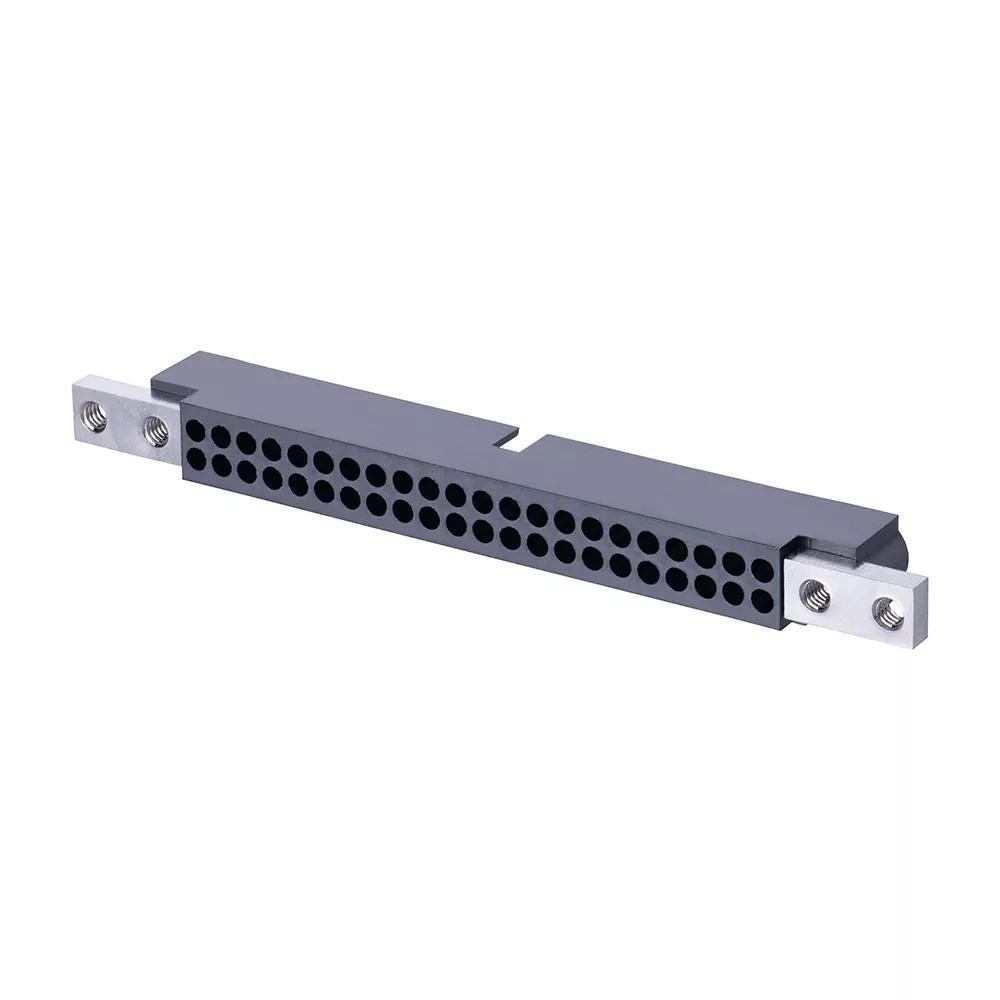

22+22 Pos. Male DIL 24-28AWG Cable Conn. Kit, Panel Mount

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Add to Favorites

Made to order

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

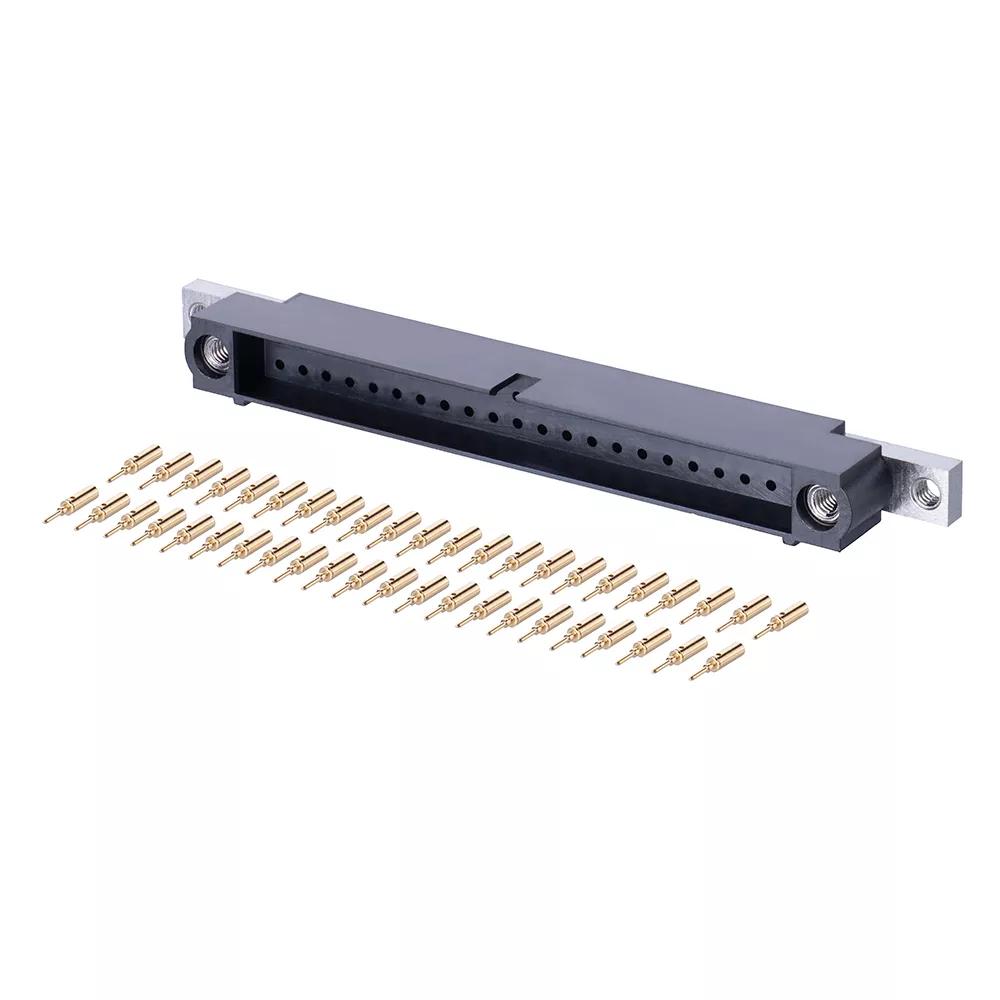

  • Complete kit: housing with internally threaded jackscrews and extended lugs for rear panel mount fitted, 44 x contacts loose – Gold finish on contact area and termination.

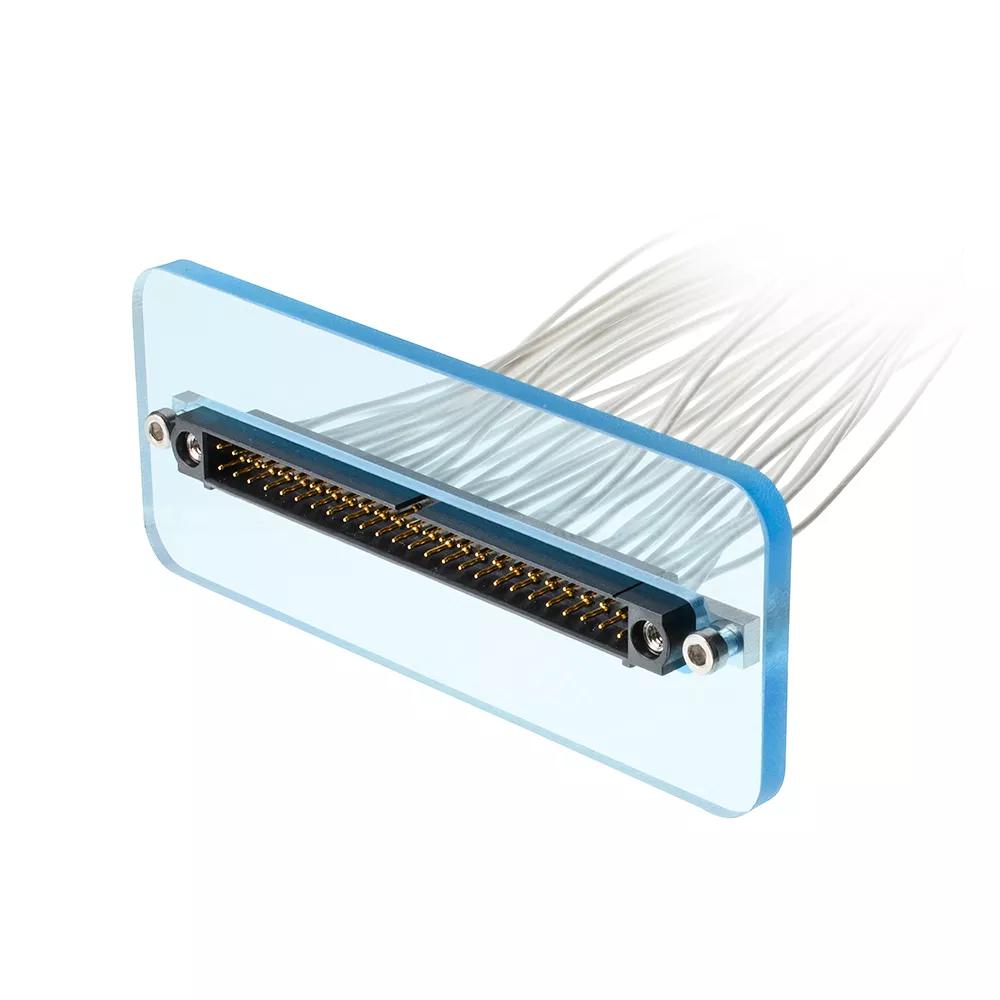

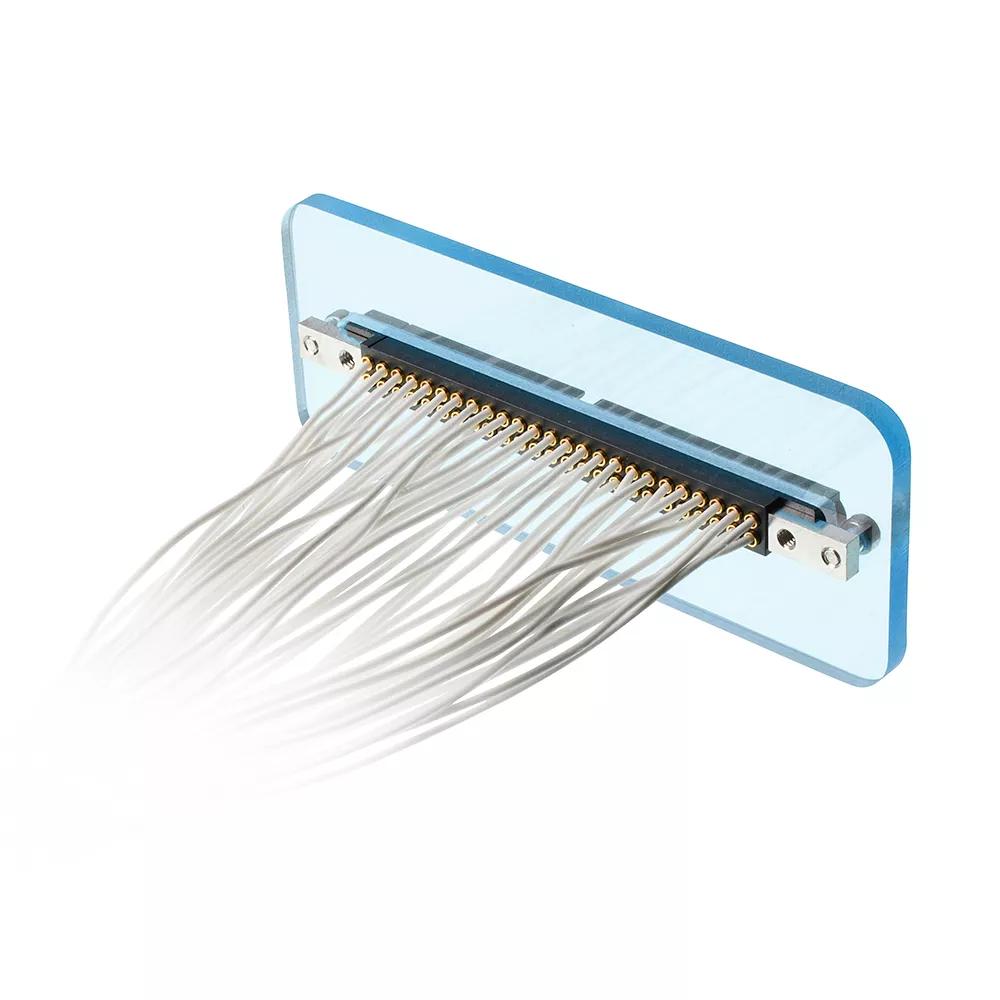

  • Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-1950005. Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B for mounting to panels up to 3mm thickness.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-28AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Internal Thread Screw-Lok with Rear Panel Mount (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

44

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

5.229g

Overall Dimensions (L x W x D) in mm:

62.30 x 6.00 x 7.85

Thread Size:

M2

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
