M80-5C12605MU

13+13 Pos. Male DIL 24-28AWG Cable Conn. Kit, Panel Mount

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

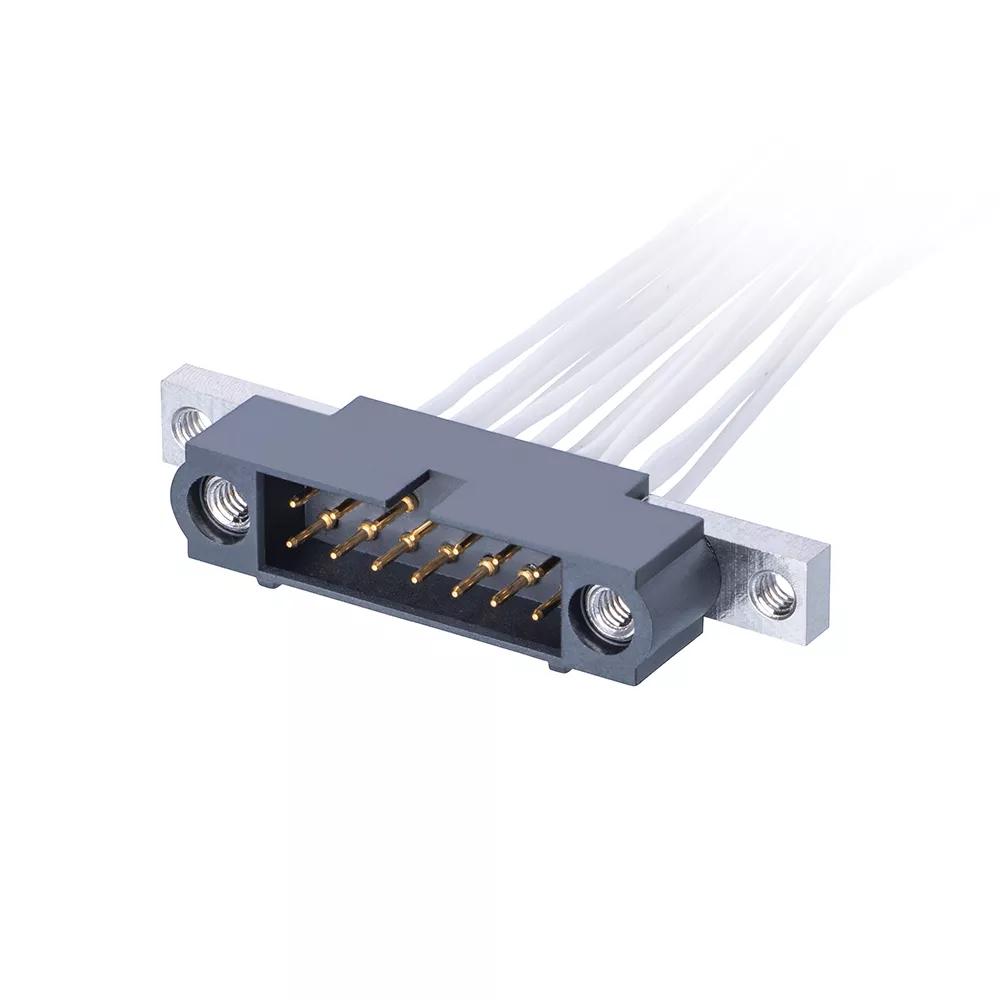

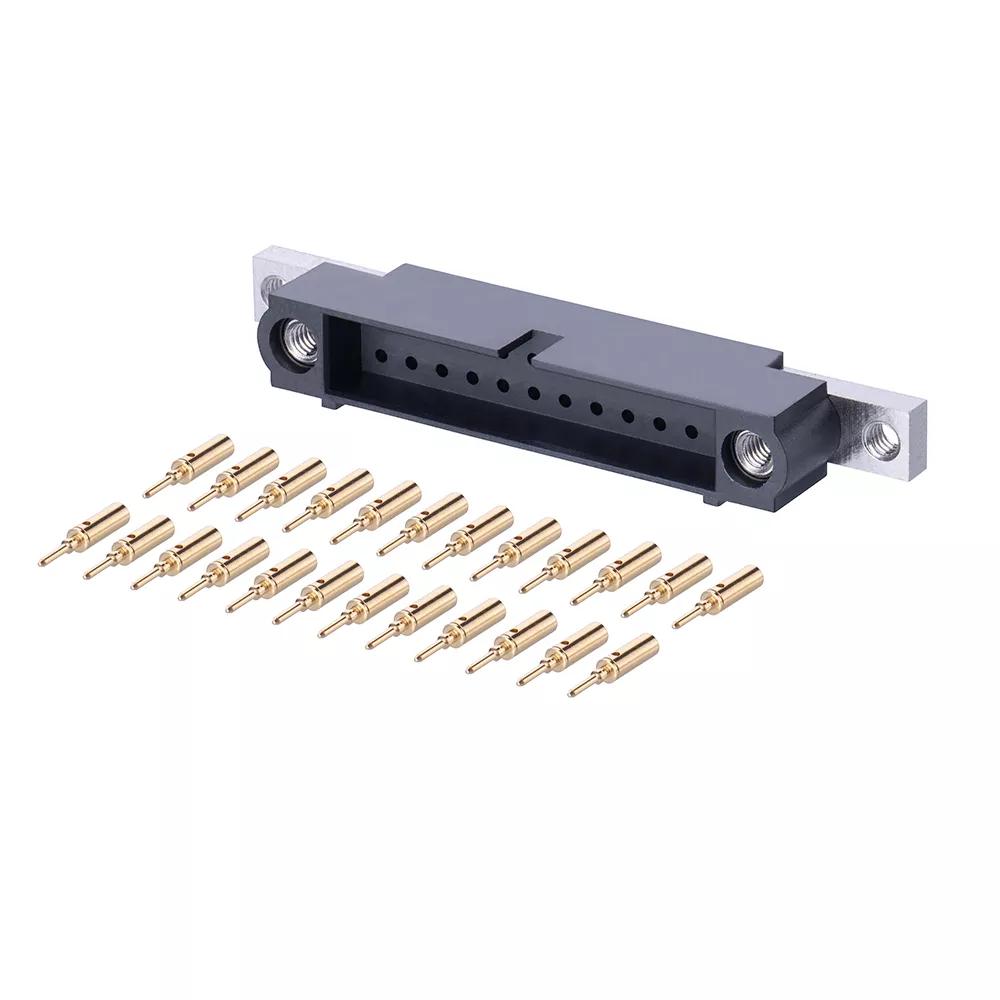

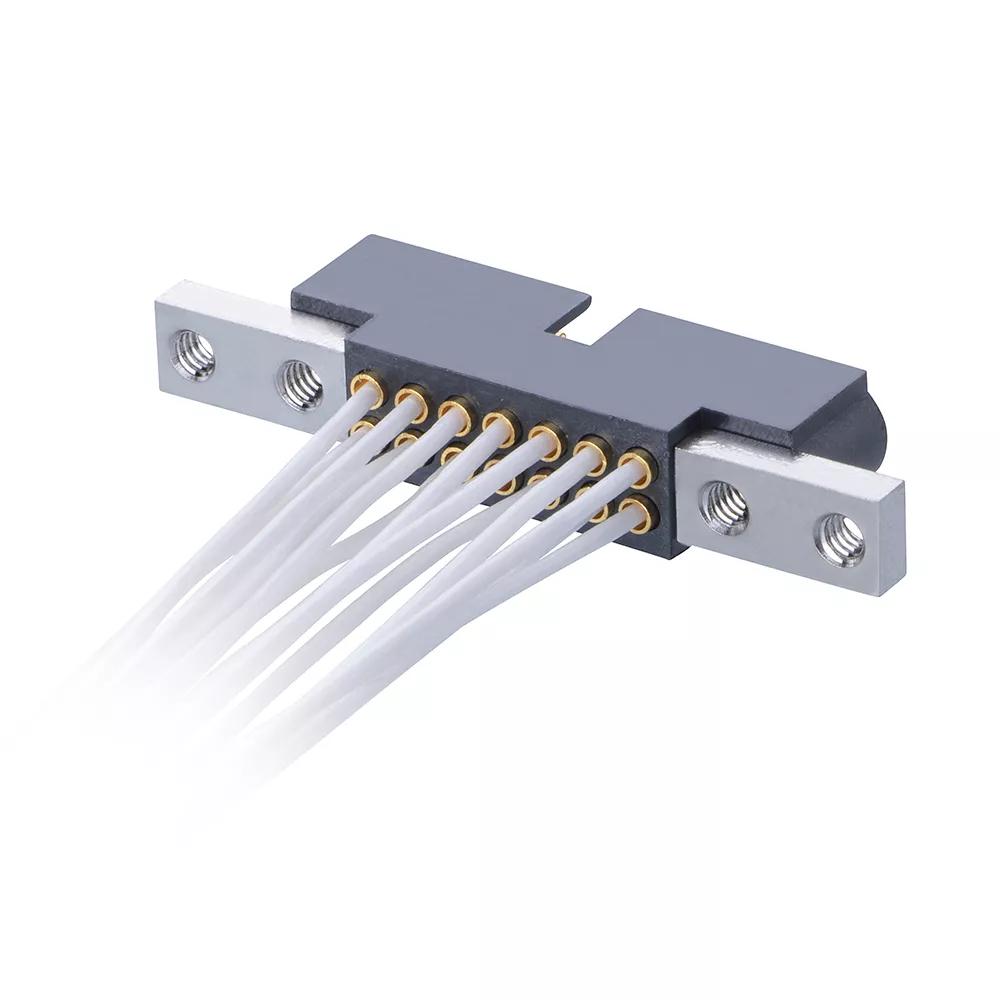

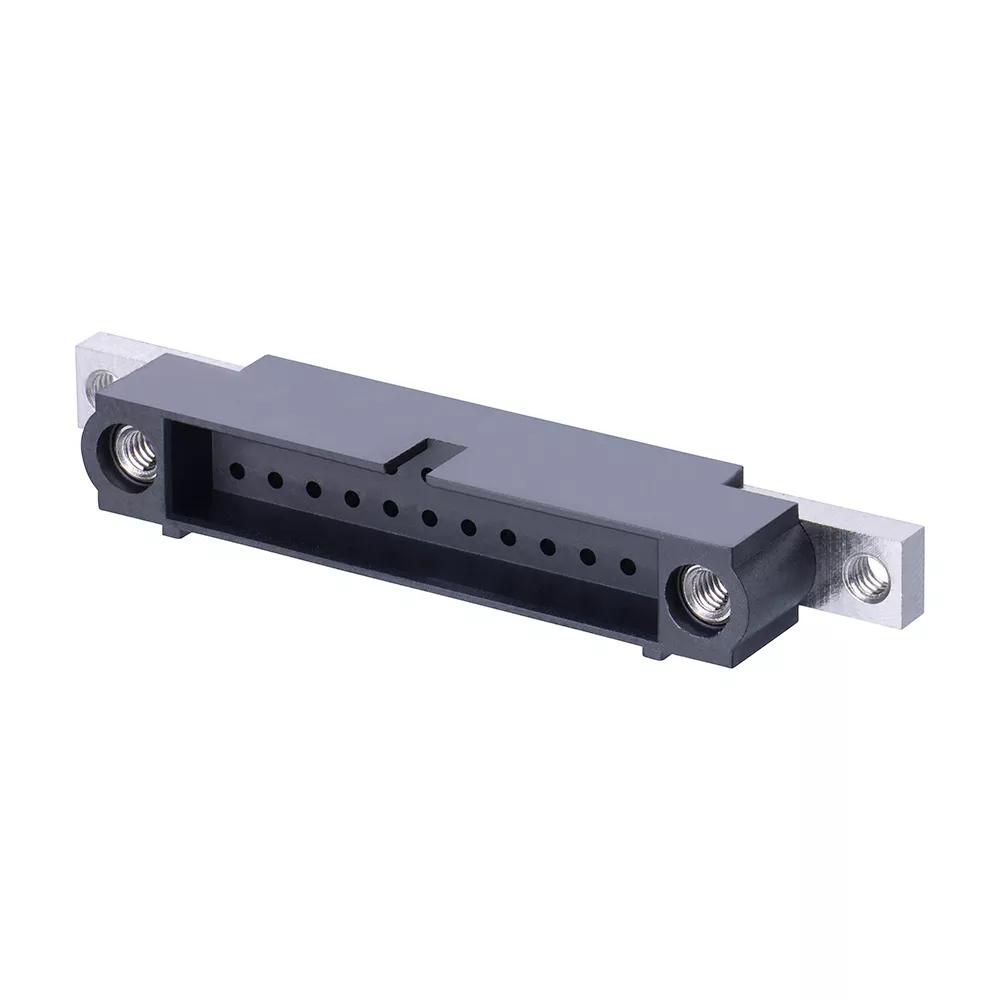

  • Complete kit: housing with internally threaded jackscrews and extended lugs for rear panel mount fitted, 26 x contacts loose – Gold finish on contact area and termination.

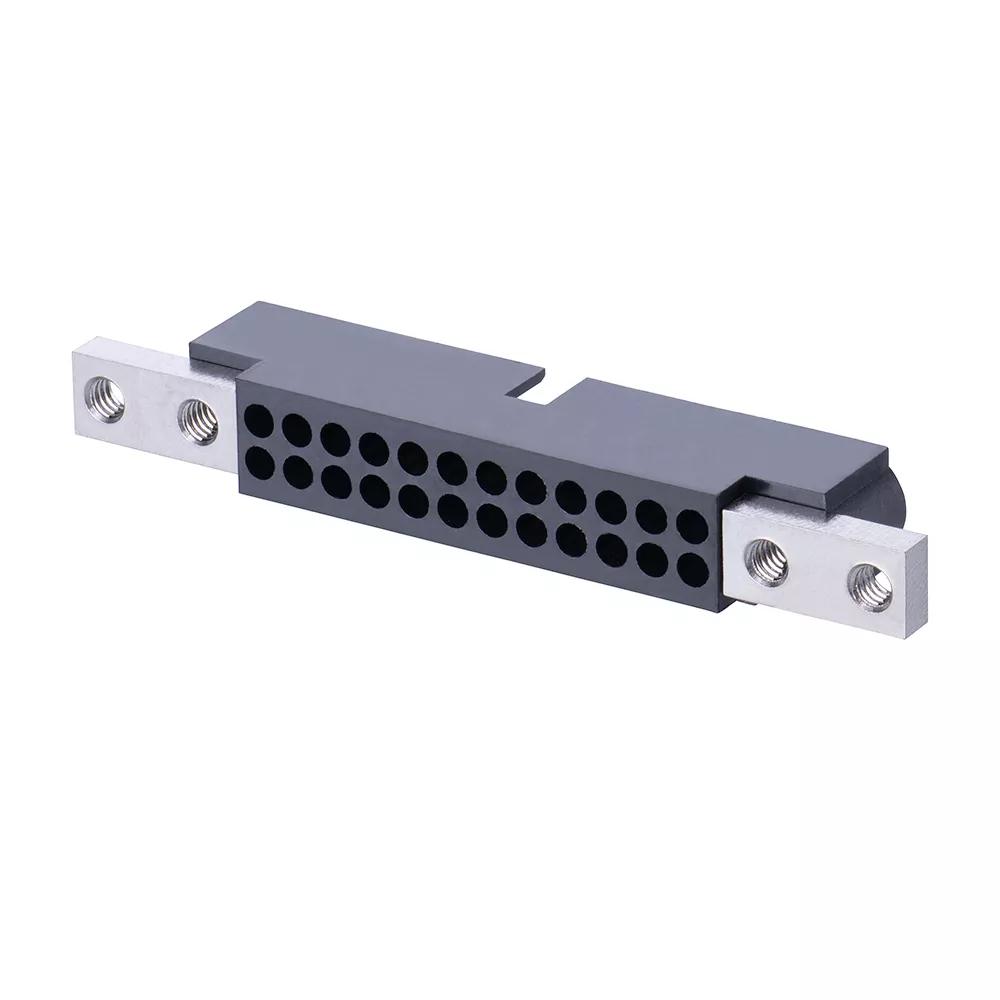

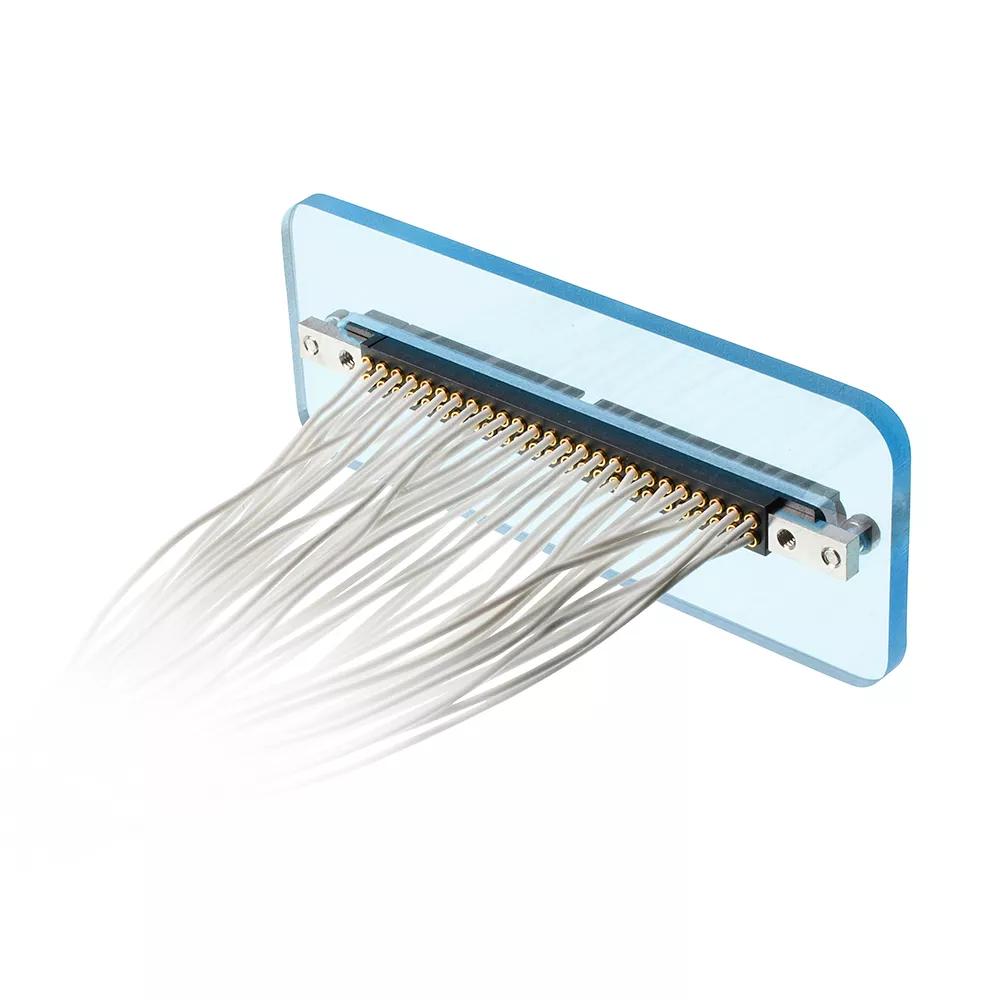

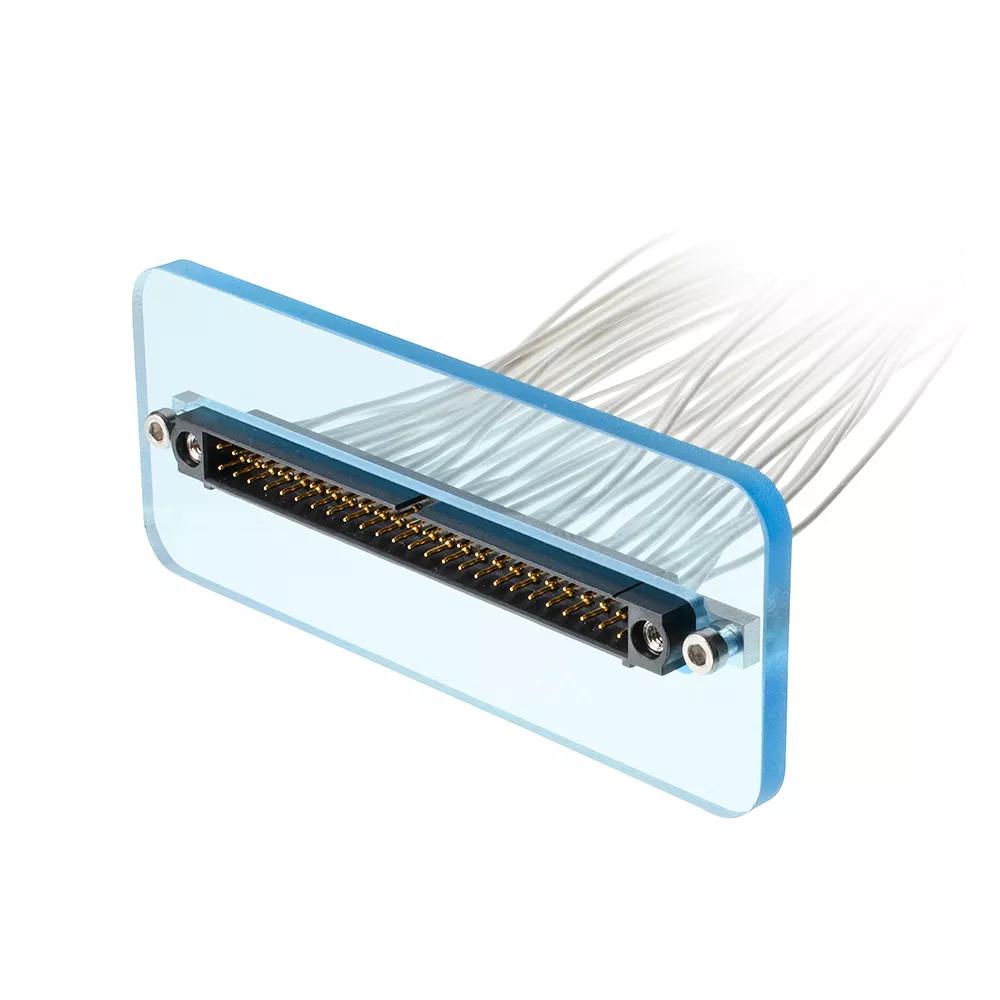

  • Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-1950005. Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B for mounting to panels up to 3mm thickness.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-28AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Internal Thread Screw-Lok with Rear Panel Mount (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

3.755g

Overall Dimensions (L x W x D) in mm:

44.30 x 6.00 x 7.85

Thread Size:

M2

Availability

124 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 40
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 40
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 24
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 20

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c
