M80-5C12005MU

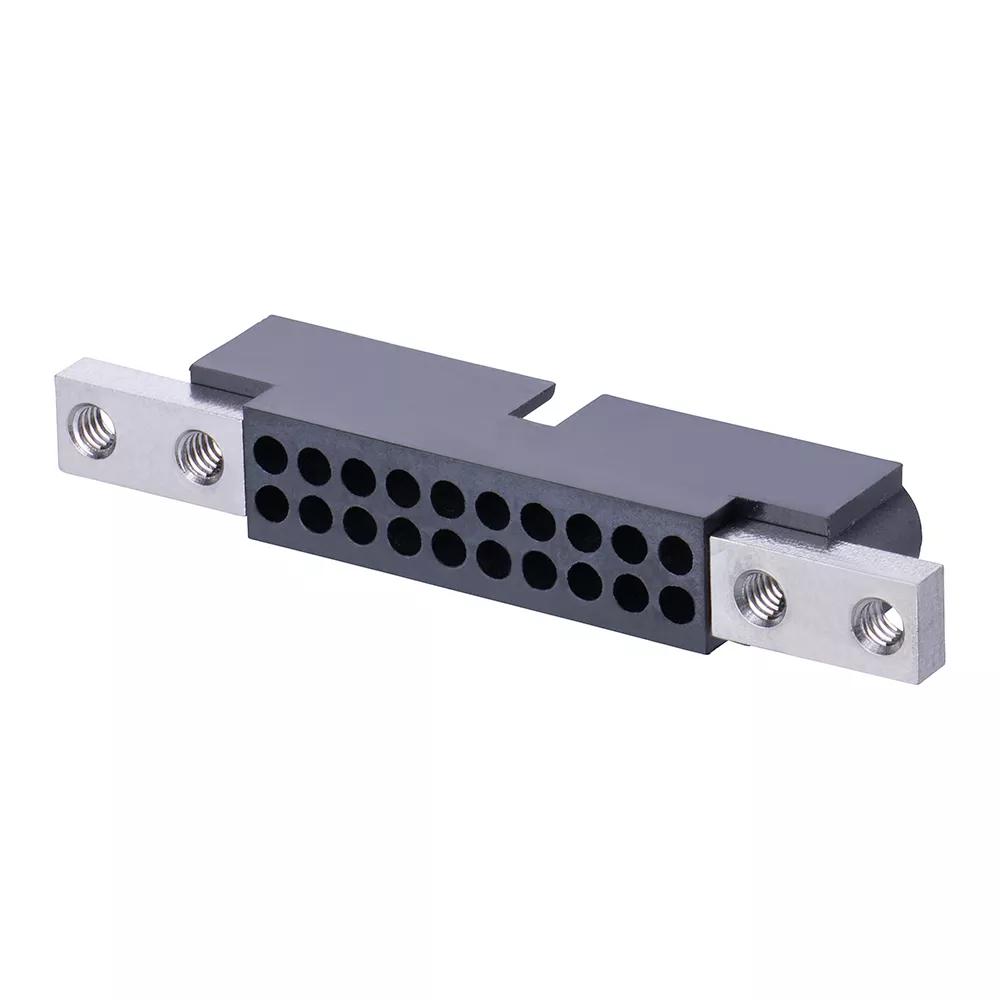

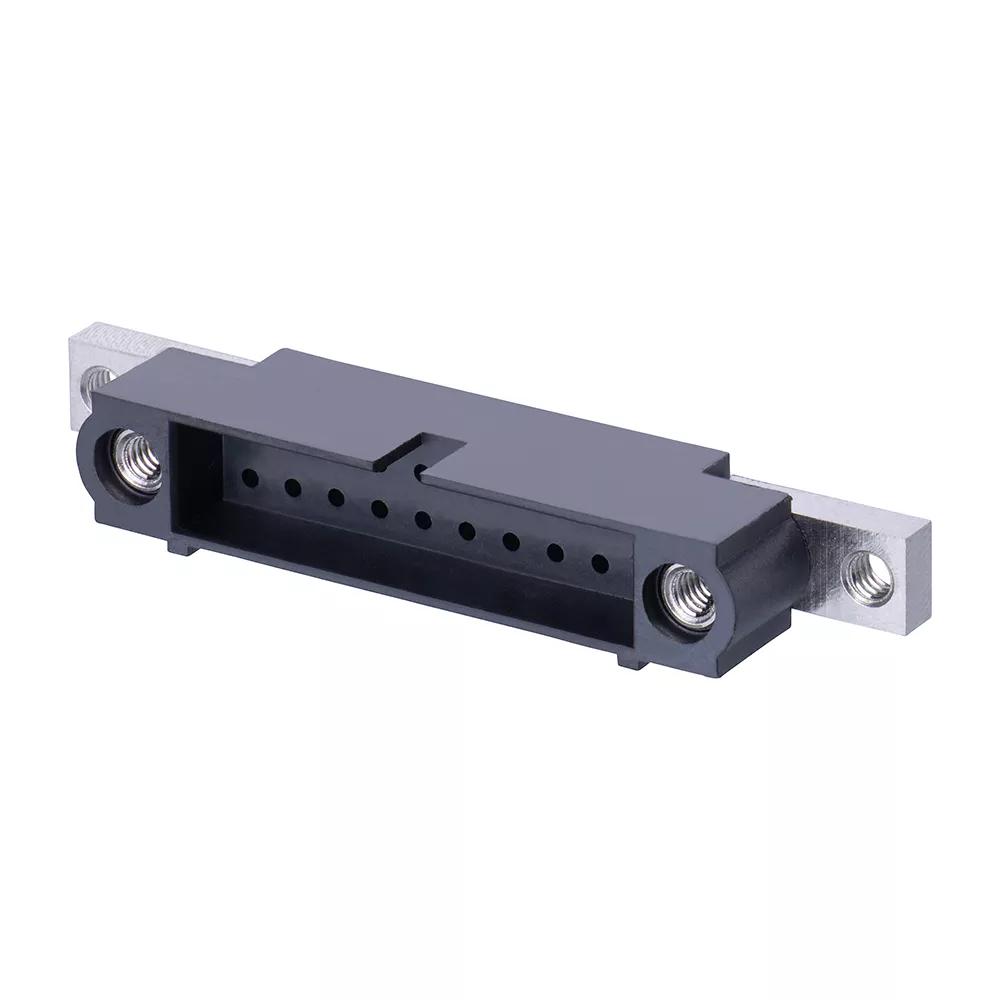

10+10 Pos. Male DIL 24-28 AWG Cable Conn. Kit, Panel Mount
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Loading… Check availability
9 similar products View products
Traceparts account required

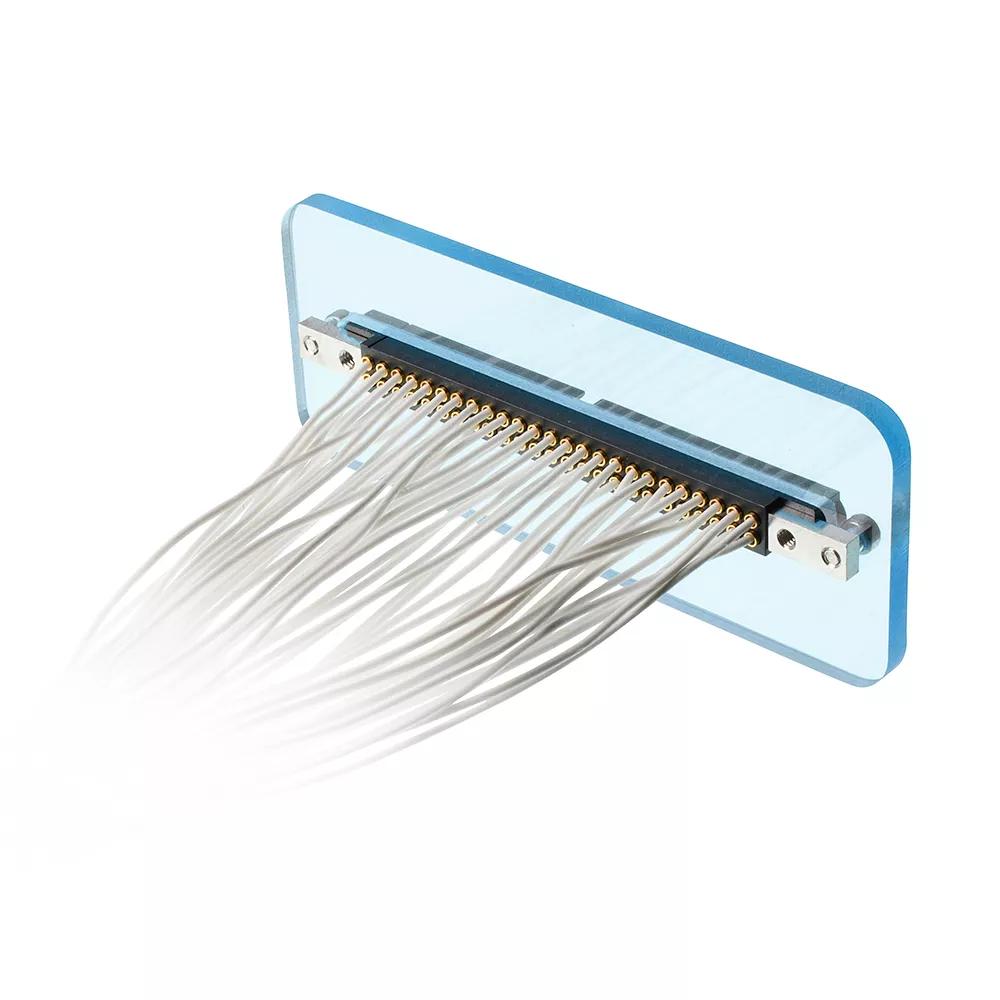

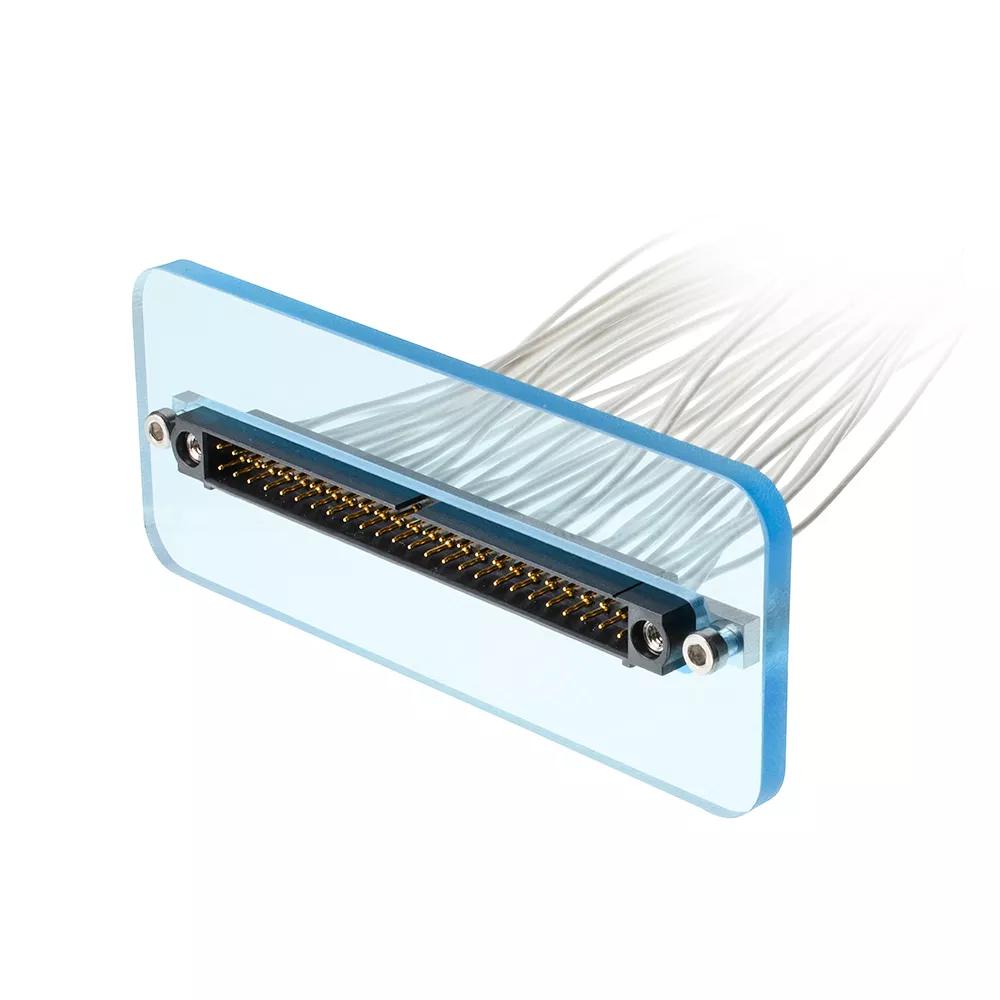

Product Description

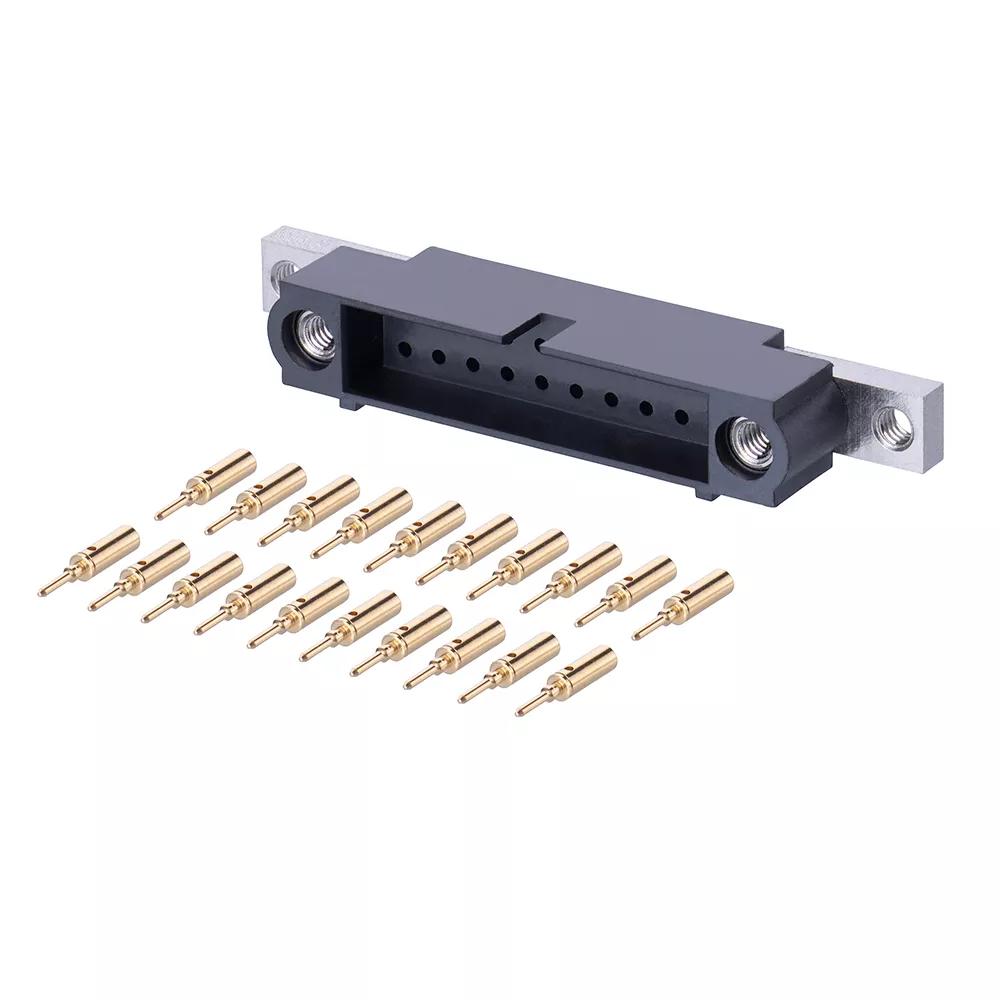

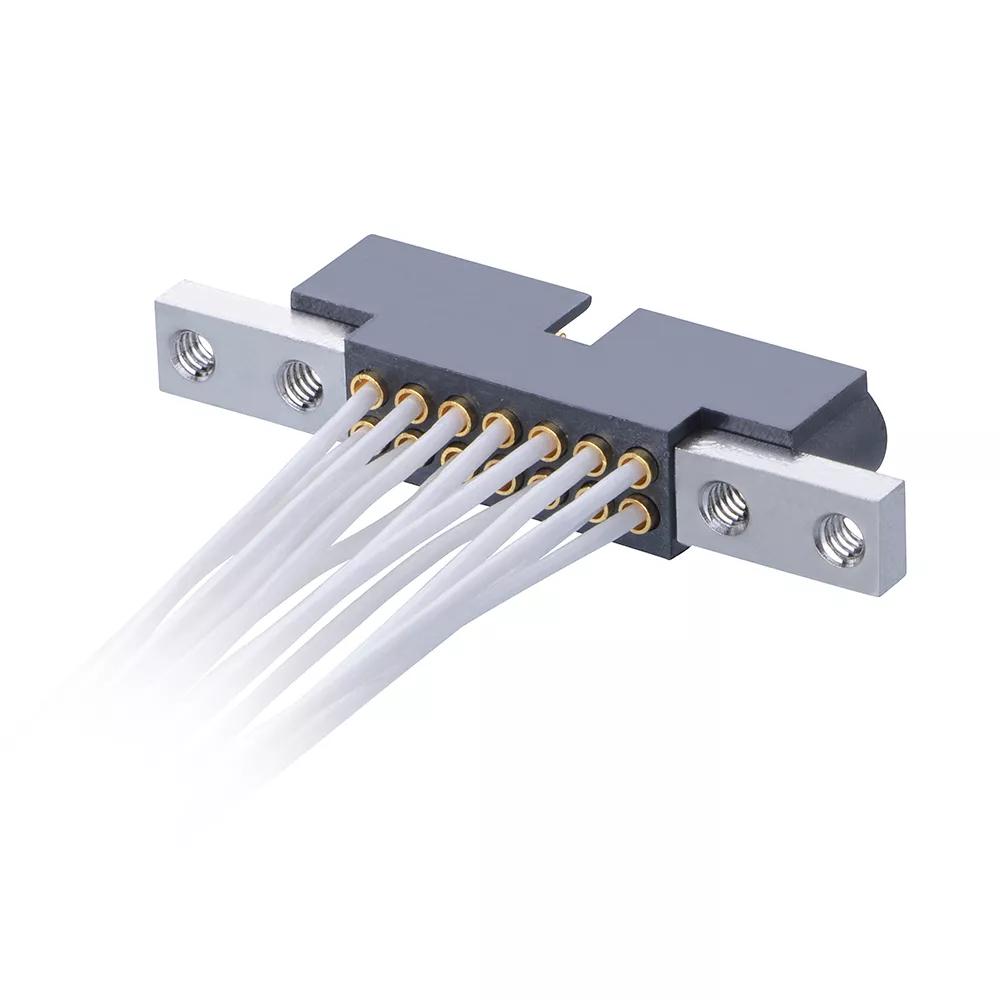

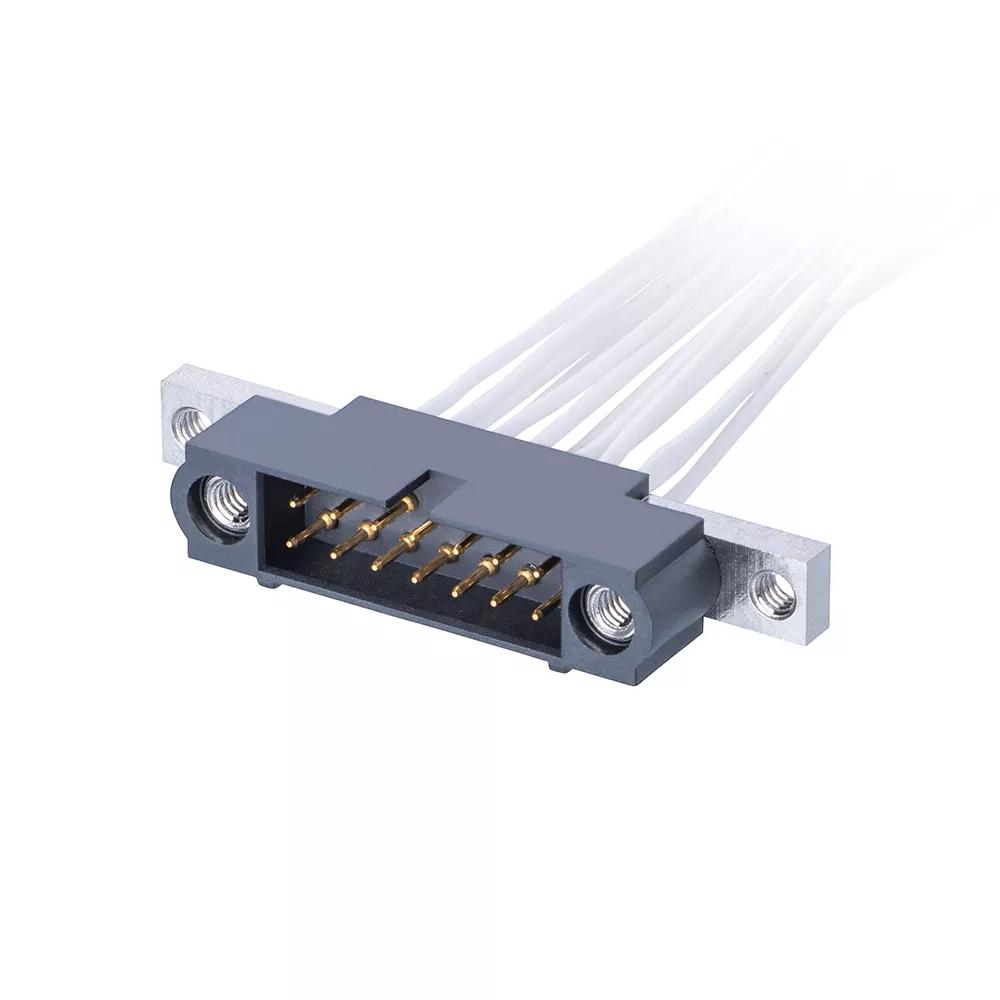

- Complete kit: housing with internally threaded jackscrews and extended lugs for rear panel mount fitted, 20 x contacts loose – Gold finish on contact area and termination.
- Small Bore – suitable for 24 to 28 AWG cable (Ø1.1mm max insulation). Spare contacts = M80-1950005. Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B for mounting to panels up to 3mm thickness.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
24-28 AWG
Mating Pin Size:
Ø0.5mm
Current Rating:
Dependent on mating contact
Operating Temperature:
-55°C to +125°C
Style of Jackscrews:
Internal Thread Screw-Lok with Rear Panel Mount (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
20
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
3.264g
Overall Dimensions (L x W x D) in mm:
38.30 x 6.00 x 7.85
Thread Size:
M2
Mating Profiles:
