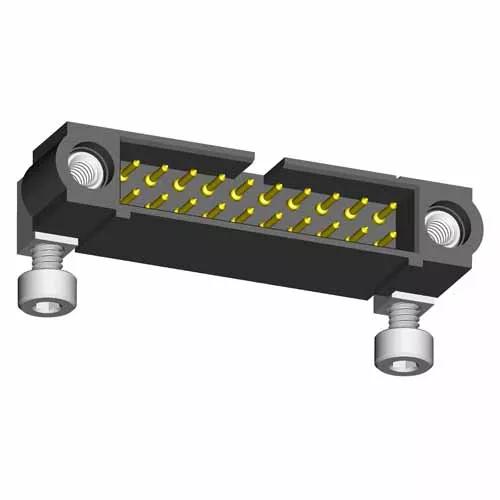

5+5 Pos. Male DIL 24-28AWG Cable Conn. Kit, Panel Mount
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Complete kit: housing with horizontal 5mm panel mount jackscrews fitted, 10 x contacts + hex socket head panel mount bolts loose – Gold finish on contact area and termination. For spare panel mount bolts, order M80-2320000B.
- Small Bore – suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-1950005.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Style of Jackscrews:
Internal Thread Jackscrew with Hex Socket Side Panel Mount Bolts (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
20.00 x 6.00 x 8.60
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount bolts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2320000B to order more.
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
