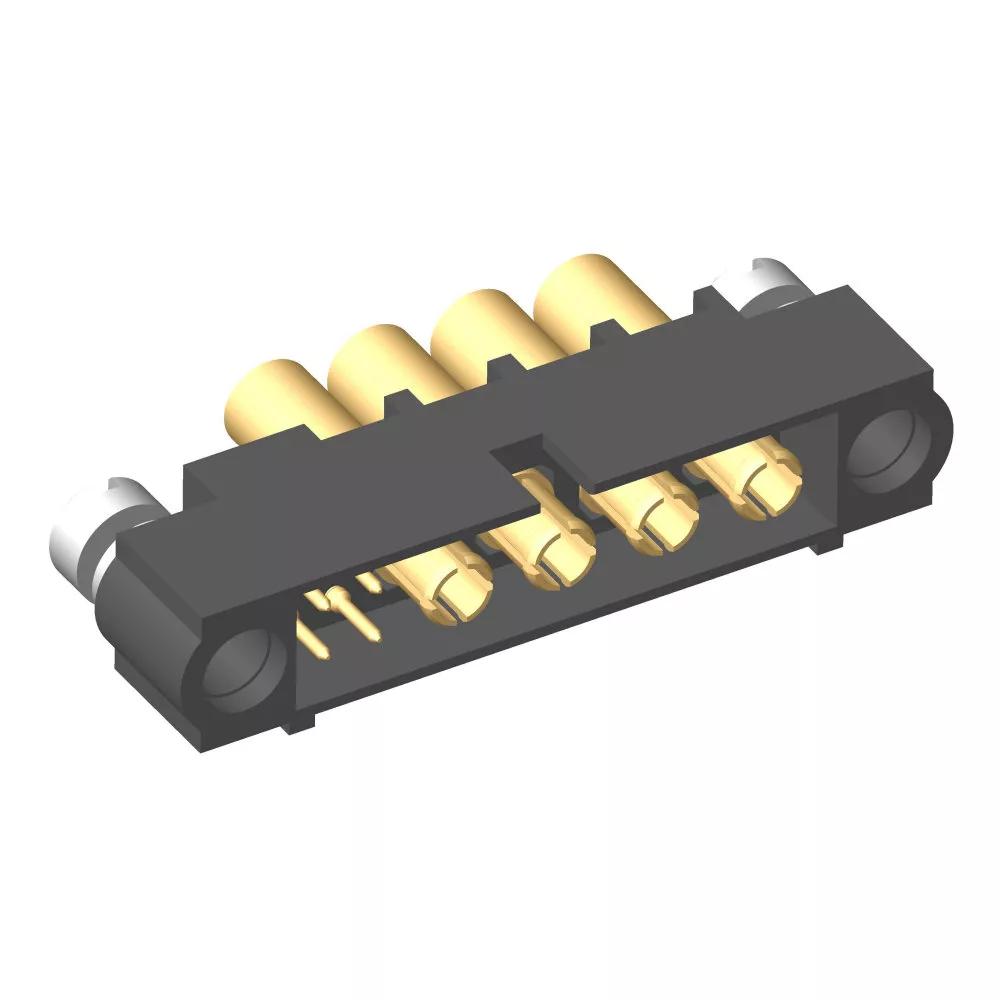

4+4 Pos. Male 24-28AWG+12AWG Cable Conn. Kit, Reverse fix

Traceparts account required

M80-5C10405MA-04-335-00-000

4+4 Pos. Male 24-28AWG+12AWG Cable Conn. Kit, Reverse fix


2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Complete kit: housing (with Reverse Fix jackscrews, slotted head) with 4 x signal and 4 x power contacts supplied loose.

  • Power solder contact suitable for 12 AWG, Small Bore signal contact suitable for 24 to 28 AWG cable (√ò1.1mm max insulation). Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Technical Details

Specifications

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Straight

  • Wire Size:

    24-28 AWG + 12 AWG

  • Mating Pin Size:

    Ø0.5mm (signal)

  • Style of Jackscrews:

    Floating Jackscrew with Slotted Head (Reverse Fix)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    Mixed

  • Number of Signal Contacts:

    4

  • Number of Special (Power or Coax) Contacts:

    4

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass (signal), Beryllium Copper (power)

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Single Pack

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Solder + Crimp)

  • Current Rating:

    Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

  • Weight:

    2.502g

  • Dimensions:

    30.00 x 6.00 x 12.70

  • Operating Temperature:

    -55°C to +125°C
