M80-5C10405M3-05-335-01-335

M80-5C10405M3-05-335-01-335

4+6 Pos. Male 24-28 AWG+12 AWG Cable Conn. Kit, Panel Mount

HRi
HRi

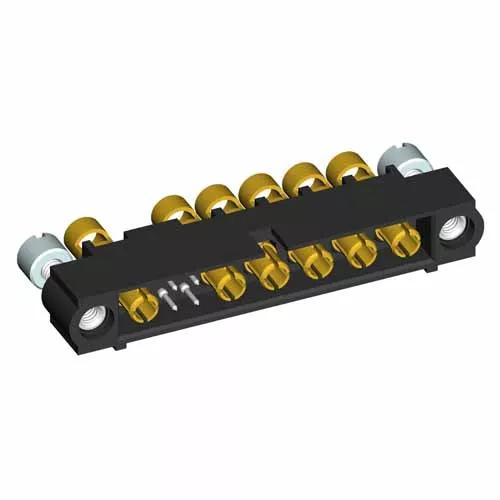

Image may be representative. Refer to the product title for more information.

M80-5C10405M3-05-335-01-335

4+6 Pos. Male 24-28 AWG+12 AWG Cable Conn. Kit, Panel Mount

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Complete kit: housing (with jackscrews + 5mm panel mount) with 4 x signal and 6 x power contacts and slotted nuts supplied loose. For spare panel mount nuts, order M80-2130000B.

  • Power solder contact suitable for 12 AWG, Small Bore signal contact suitable for 24 to 28 AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see the Component Specification C005XX.

Checking stock availability...

Technical Drawings & CADs

Jump to technical details

  • Technical Drawing

  • TraceParts

    CAD/ECAD

  • TraceParts

    3D Viewer

  • SamacSys

    3D Model, PCB Symbol & Footprint

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable

    No

  • Style of Jackscrews

    Internal Thread Fixing with Board/Front Panel Mount

  • Mating Pin Size

    Ø0.5mm (signal)

  • Number of Rows

    Mixed

  • Connector Orientation

    Straight

  • Country of Origin

    GB

  • Side Stackable

    No

  • Number of Power/Coax Contacts

    6

  • Number of Signal Contacts

    4

  • Operating Temperature

    -55°C to +125°C

  • RoHS Status

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating

    Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

  • Polarised

    Yes

  • Cuttable

    No

Materials

  • Finish / Plating on Contact Surface

    Gold

  • Housing Material

    PPS

  • Base Material of Contact

    Brass (signal), Beryllium Copper (power)

  • Flammability Rating

    UL94V-0

  • Packaging Style

    Single Pack

  • Finish / Plating on Termination

    Gold

  • Housing Colour

    Black

Dimensions

  • Contact Pitch

    2.00mm/4.00mm (0.079"/0.157")

  • Weight

    4.492g

  • Dimensions

    38.00 x 6.00 x 12.70

  • Thread Size

    M2

  • Wire Size

    24 AWG,26 AWG,28 AWG,12 AWG

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - M80-5C10405M3-05-335-01-335.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on Datamate signal contacts & T-Contact

  • Plating thickness on Datamate power and coax contacts

Product Information

  • Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Panel Mount with Datamate

  • Product Training Module - Cable Products from Harwin

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • IS-52 - Datamate Mix-Tek Assembly and Contact Removal Instruction Sheet

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • Product Datasheet - Datamate Mix-Tek range (HRi)

Test Reports

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT006 - Datamate L-Tek and J-Tek Male Crimp Retention and Integrity (Pull-Off Force)

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical

  • Test Report HT078 - Datamate Mix-Tek 20A Power testing

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M80-5C10405M3-05-335-01-335 product

  • RoHS Declaration - M80-5C10405M3-05-335-01-335
