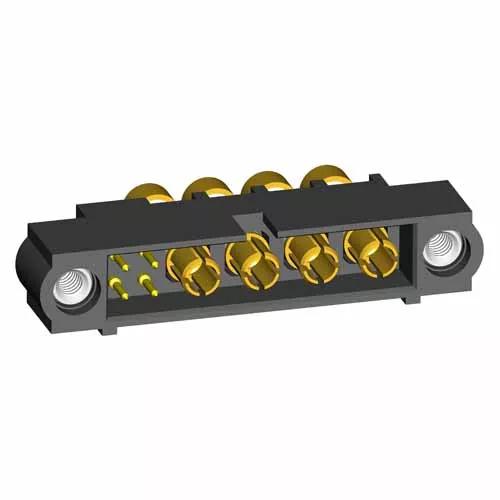

4+4 Pos. Male 24-28AWG+12AWG Cable Conn. Kit, Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
- Complete kit: housing (with jackscrews) with 4 x signal and 4 x power contacts supplied loose.
- Power solder contact suitable for 12AWG, Small Bore signal contact suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable (Solder + Crimp)
Cable Conductor Size:
24-28AWG + 12AWG
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
-55°C to +125°C
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Brass (signal), Beryllium Copper (power)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.00 x 6.00 x 12.70
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
