M80-5625005

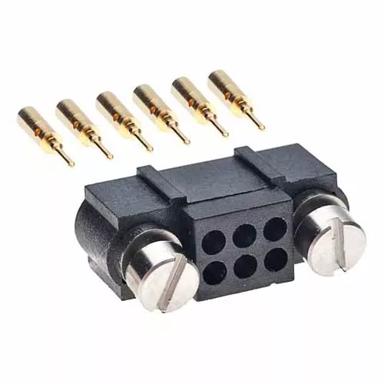

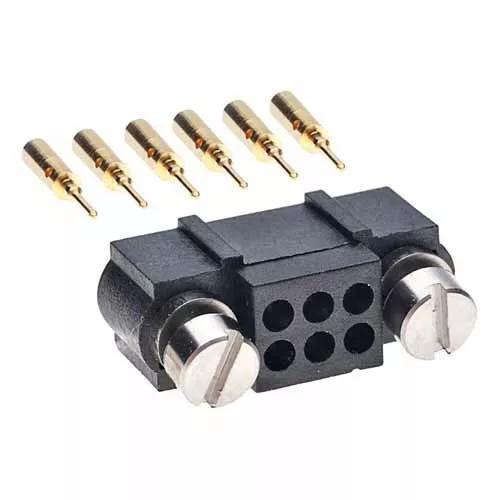

Datamate J-Tek DIL Male Large Bore (22 AWG) Crimp Connector, gold, with reverse fix slotted jackscrews, 25+25 contacts


2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Complete kit: housing, reverse fix jackscrews with slotted head fitted, 50 x contacts loose - Gold finish on contact area and termination.

  • Large Bore - suitable for 22 AWG cable (Ø1.1mm max insulation). Spare contacts = M80-1940005.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • Contact Pitch:

    2.00mm (0.079")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Straight

  • PCB Mounting:

    Cable (Crimp)

  • Wire Size:

    22 AWG

  • Mating Pin Size:

    Ø0.5mm

  • Style of Jackscrews:

    Floating Jackscrew with Slotted Head (Reverse Fix)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    50

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Brass

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Crimp)

  • Current Rating:

    Dependent on mating contact

  • Weight:

    5.017g

  • Dimensions:

    60.00 x 6.00 x 8.55

  • Operating Temperature:

    -55°C to +125°C

  • Country of Origin:

    GB

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Black

  • Thread Size:

    M2

Downloads

    Environmental Compliance

  • RoHS - M80-5625005

  • Material composition for M80-562 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M80-562.pdf

  • Plating thickness on Datamate signal contacts & T-Contact

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT006 - Datamate L-Tek and J-Tek Male Crimp Retention and Integrity (Pull-Off Force)

  • Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Product Information

  • IS-25 - Z80-280 Assembly Tool Instruction Sheet

  • Catalog page - Datamate J-Tek Mating Profiles

  • Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona

  • IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Training Module - Panel Mount with Datamate

  • Product Training Module - Cable Products from Harwin

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Product Datasheet - Datamate range: signal connectors (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
