M80-5420642

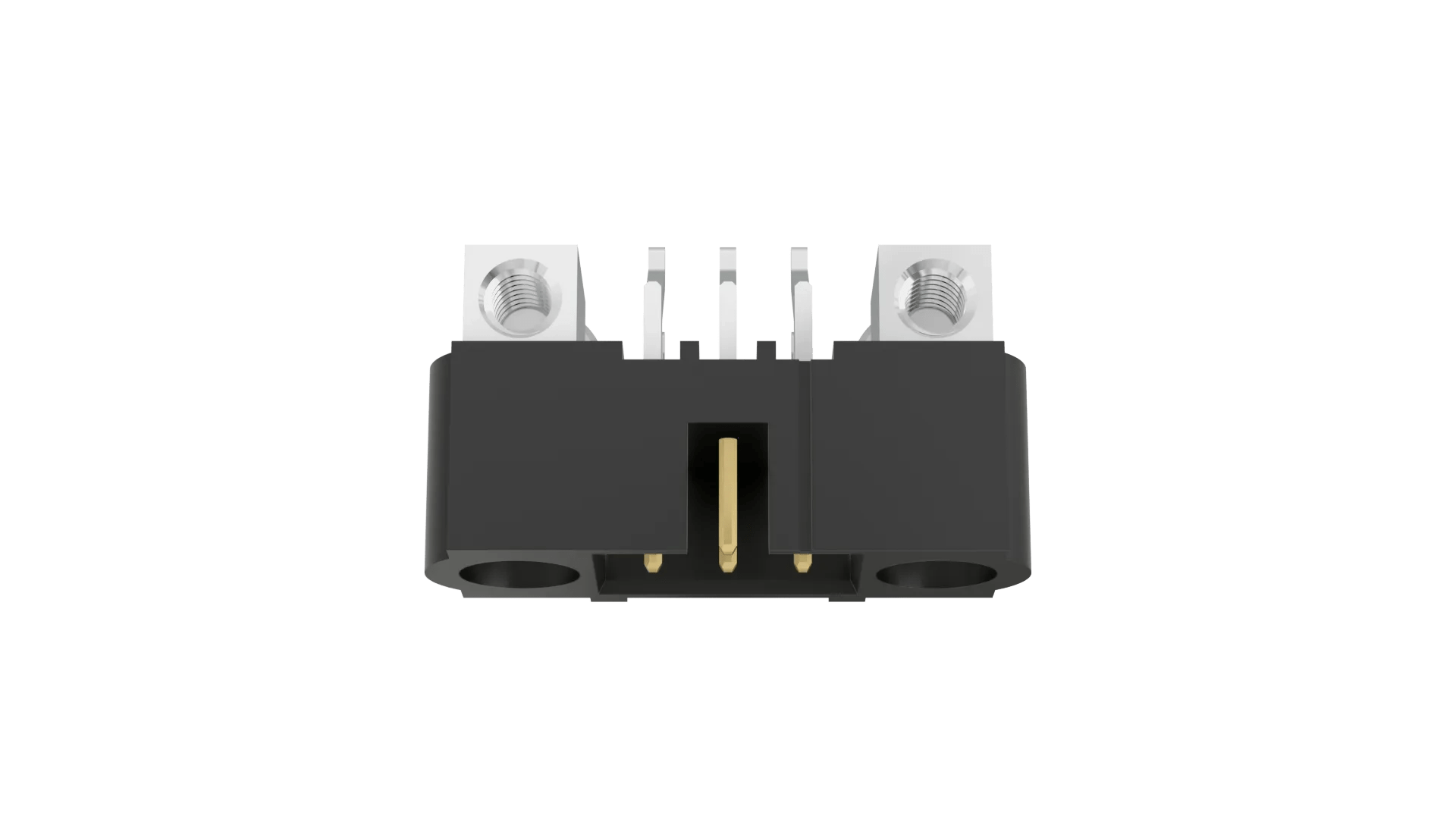

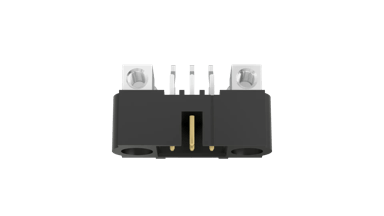

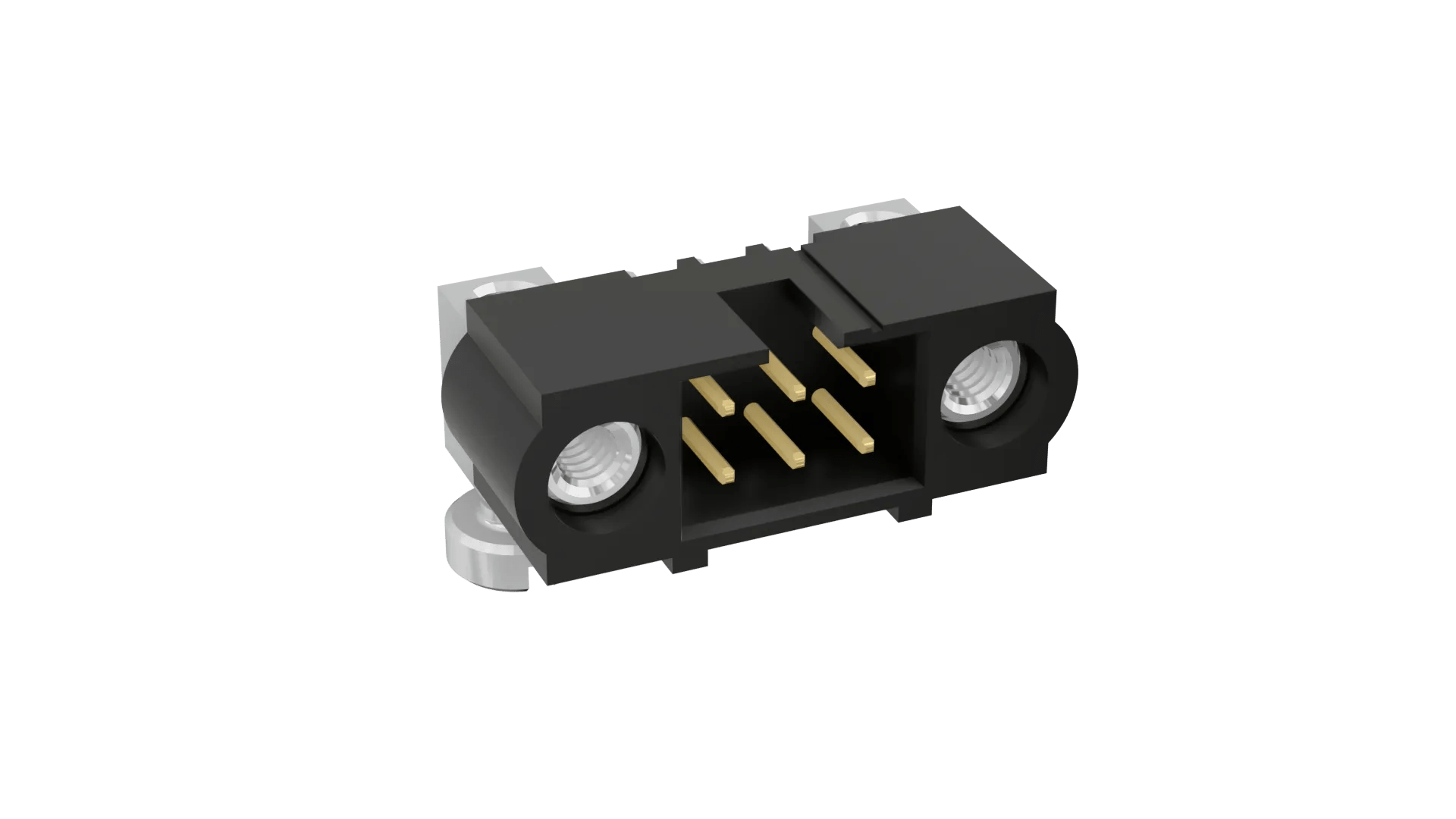

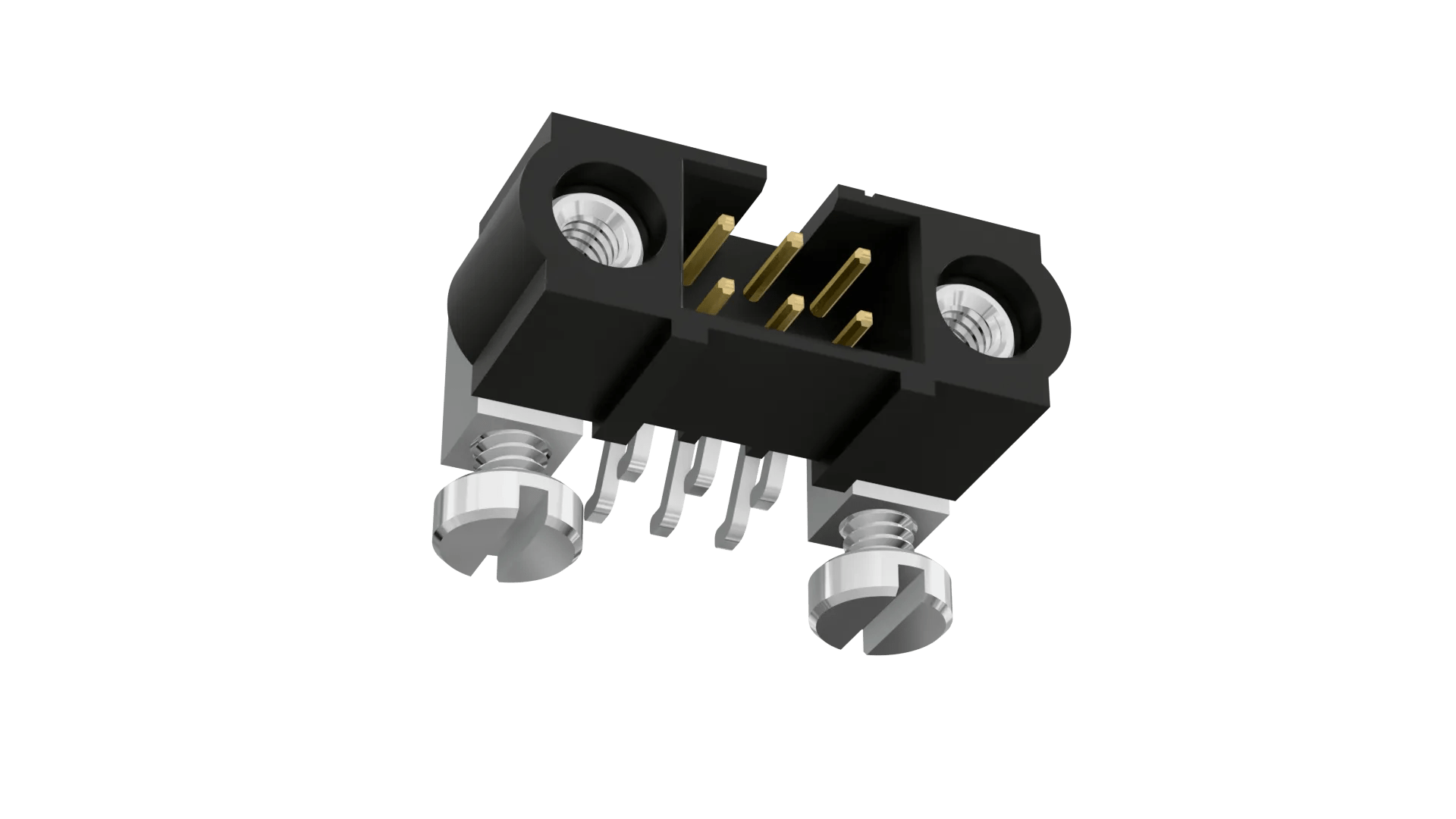

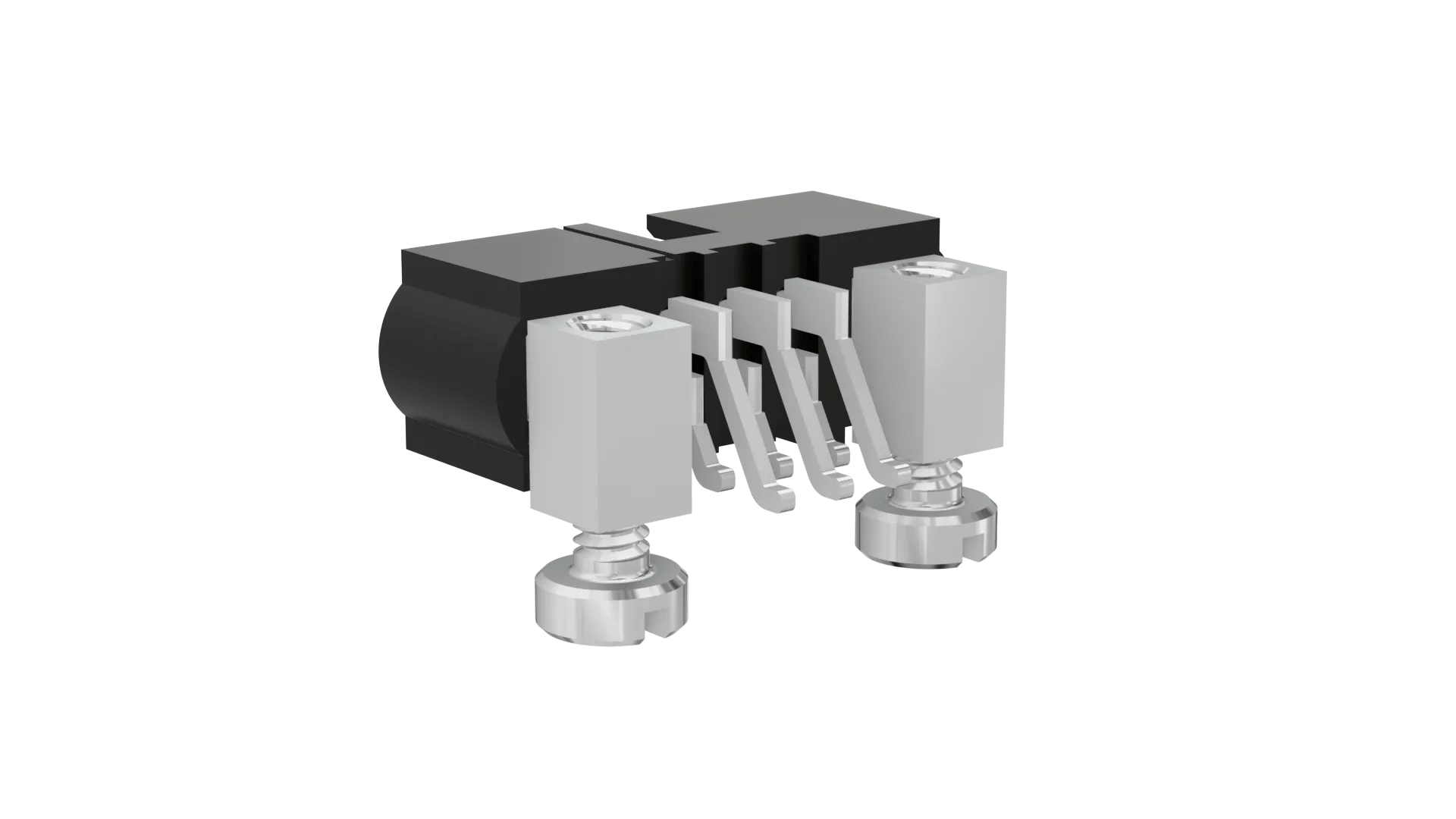

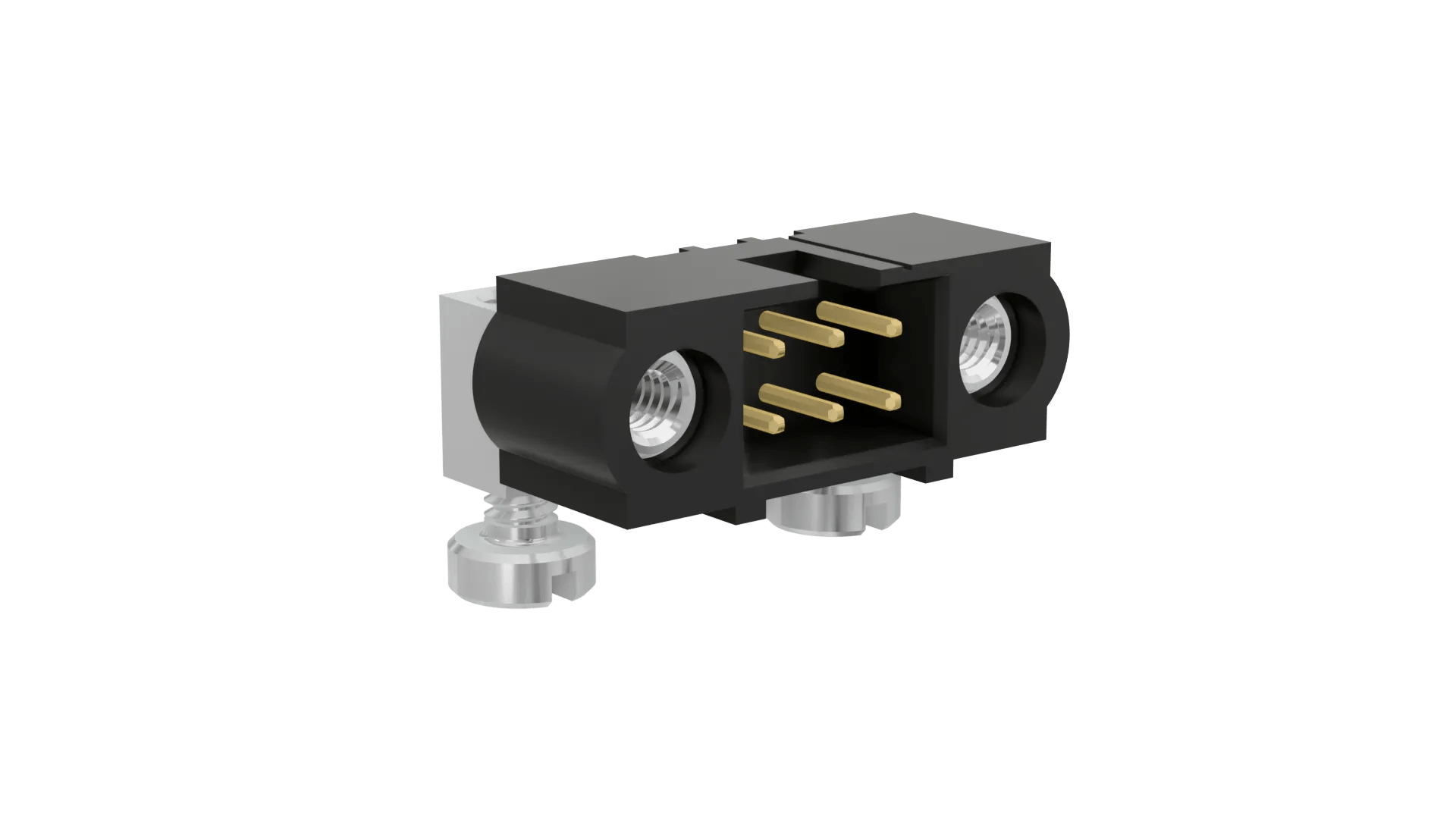

3+3 Pos. Male DIL Horizontal SMT Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, Surface Mount connector with 3.5mm board mount jackscrews – 6 contacts (3+3).
  • Gold finish on contact area, Tin finish on termination. Slotted bolts provided for assembly to panel mount jackscrew.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating connector

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Jackscrew with Board Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.856g

Overall Dimensions (L x W x D) in mm:

16.00 x 10.10 x 6.00

Thread Size:

M2

Height of Connector above PCB:

6.00mm

Availability

Distributor Location Quantity
Digi-Key
Global
Status80
Mouser Electronics Inc
Global
Status616
TTI Europe
Europe
Status64
TTI Inc
USA
Status304

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
