  • M80-5322642 - 13+13 Pos. Male DIL Horizontal SMT Conn. Jackscrews

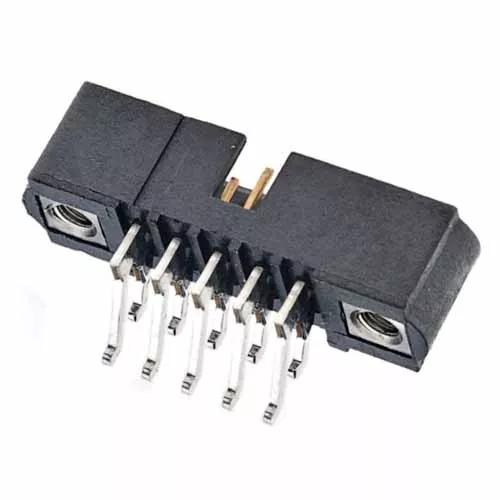

Representative image of product family.

M80-5322642

13+13 Pos. Male DIL Horizontal SMT Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, Surface Mount connector with jackscrews (internal only) - 26 contacts (13+13).
  • Gold finish on contact area, Tin finish on termination. Packaged in tubes.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Mouser Electronics Inc Global 9 Buy Now

View more stock

Part Number Stock Count View Stock
M80-5320642 153 View Stock
M80-5321042 529 View Stock
M80-5322642 9 View Stock
M80-5324242 36 View Stock

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Horizontal
Connection Type: Surface Mount (SMT)
Mating Pin Size: Ø0.5mm
Current Rating: Dependent on mating connector
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews: Jackscrew

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Brass
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.879g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 26
Body Length: 36mm
Height of Connector above PCB: 6mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Mating Profiles/Heights

Related Products

+
Product Family: M80-532

Mating Products

Previous Next

Alternative products

M80-5322605 - 13+13 Pos. Male DIL Horizontal SMT Conn. Jackscrews

Closest alternative:

M80-5322605

13+13 Pos. Male DIL Horizontal SMT Conn. Jackscrews
