Home > M80-5304242
Active Product

M80-5304242

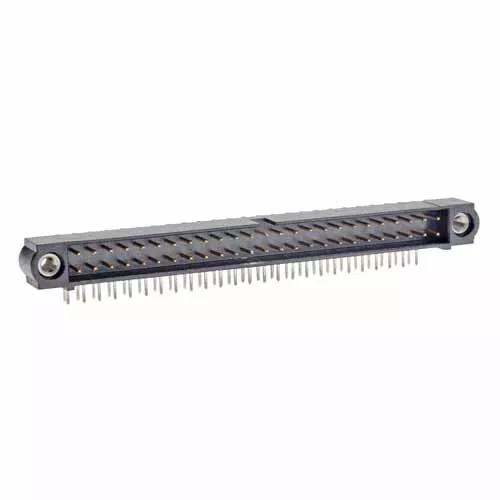

21+21 Pos. Male DIL Horizontal Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Add to Favorites

Loading…   Check availability

7 similar products View products

Traceparts account required

Product Description

  • Double Row, 3mm PC Tail connector with jackscrews (internal only) – 42 contacts (21+21).
  • Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

42

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

2.522g

Overall Dimensions (L x W x D) in mm:

52.00 x 8.25 x 9.00

Thread Size:

M2

Height of Connector above PCB:

6.00mm

Length of Throughboard Tail:

3.00mm

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS

How can we help you?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.


Contact us
