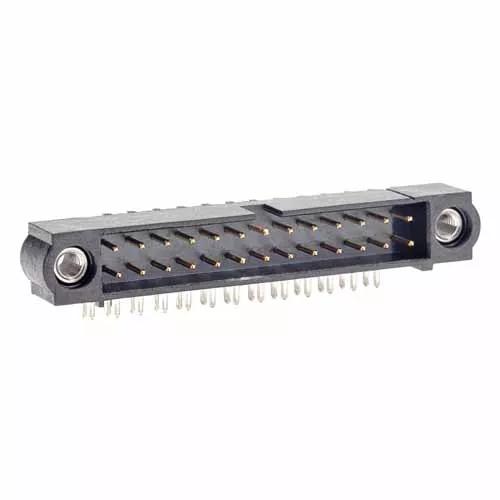

  • M80-5302642 - 13+13 Pos. Male DIL Horizontal Throughboard Conn. Jackscrews

M80-5302642

13+13 Pos. Male DIL Horizontal Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, 3mm PC Tail connector with jackscrews (internal only) - 26 contacts (13+13).
  • Gold finish on contact area, Tin finish on termination.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 28 Website
Digi-Key Global 444 Buy Now
Farnell Europe 114 Buy Now
Mouser Electronics Inc Global 127 Buy Now
TTI Europe Europe 105 Website
TTI Inc USA 28 Website
Harwin Europe 385

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Horizontal
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: Dependent on mating connector
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews: Jackscrew

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.803g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 26
Body Length: 36mm
Height of Connector above PCB: 6mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Length of PC Tail: 3mm
Mating Profiles/Heights
