Home > M80-5201042
Active Product

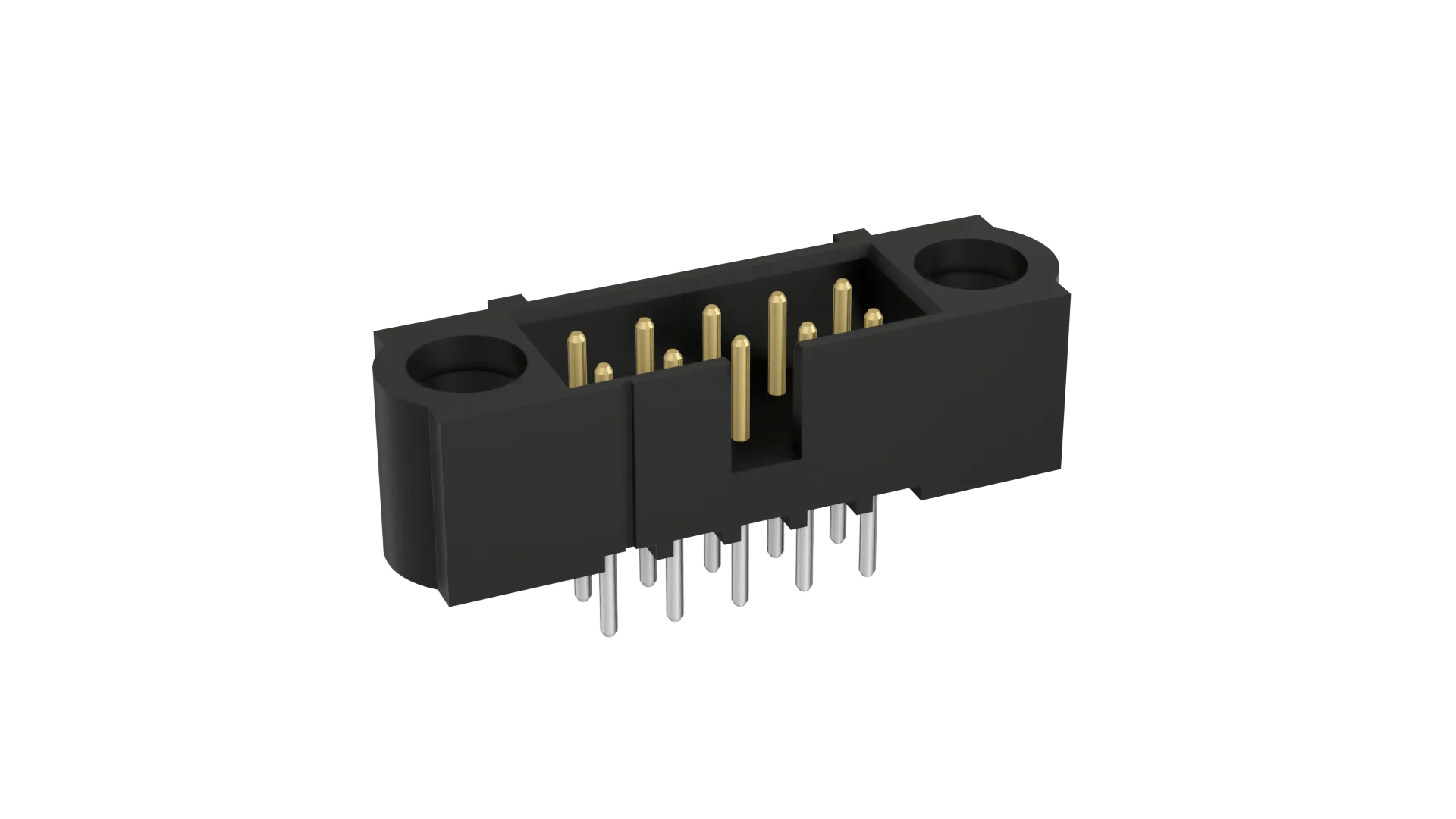

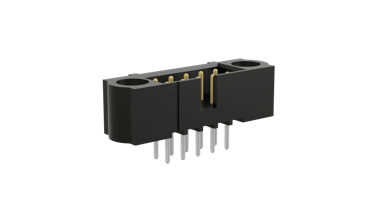

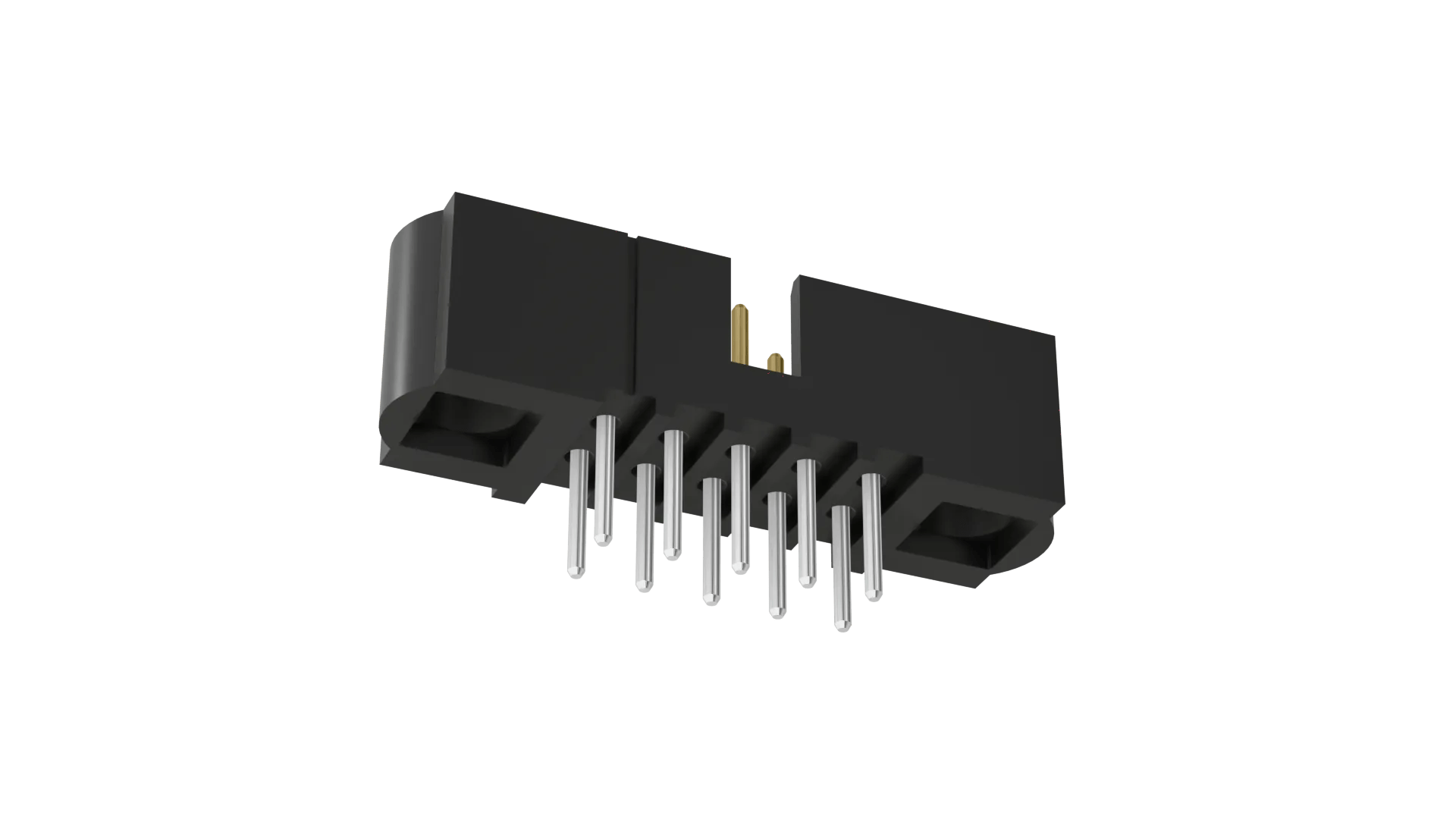

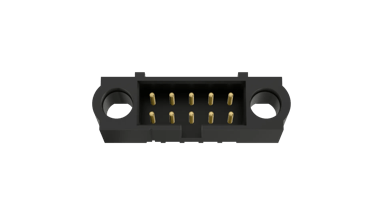

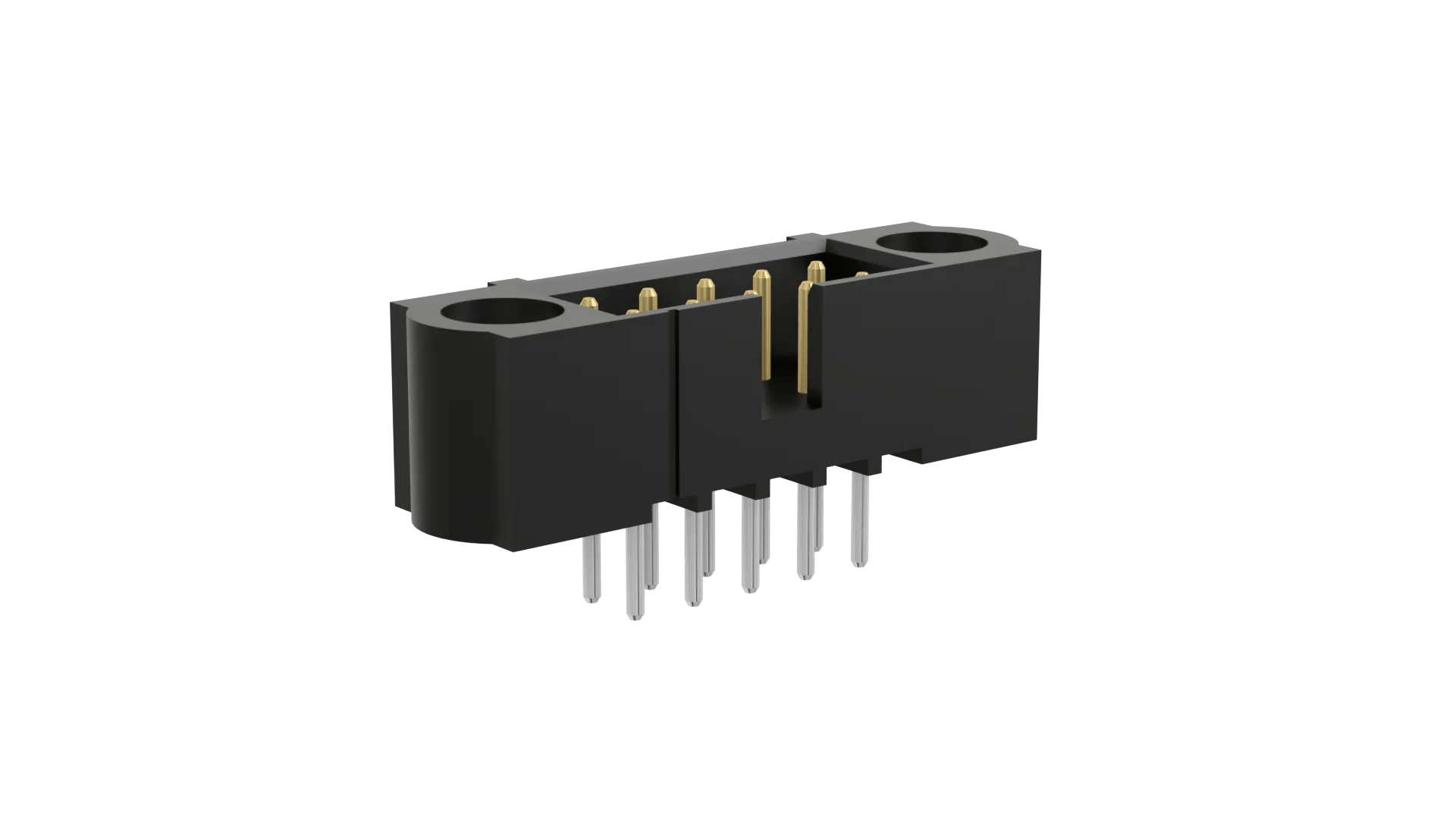

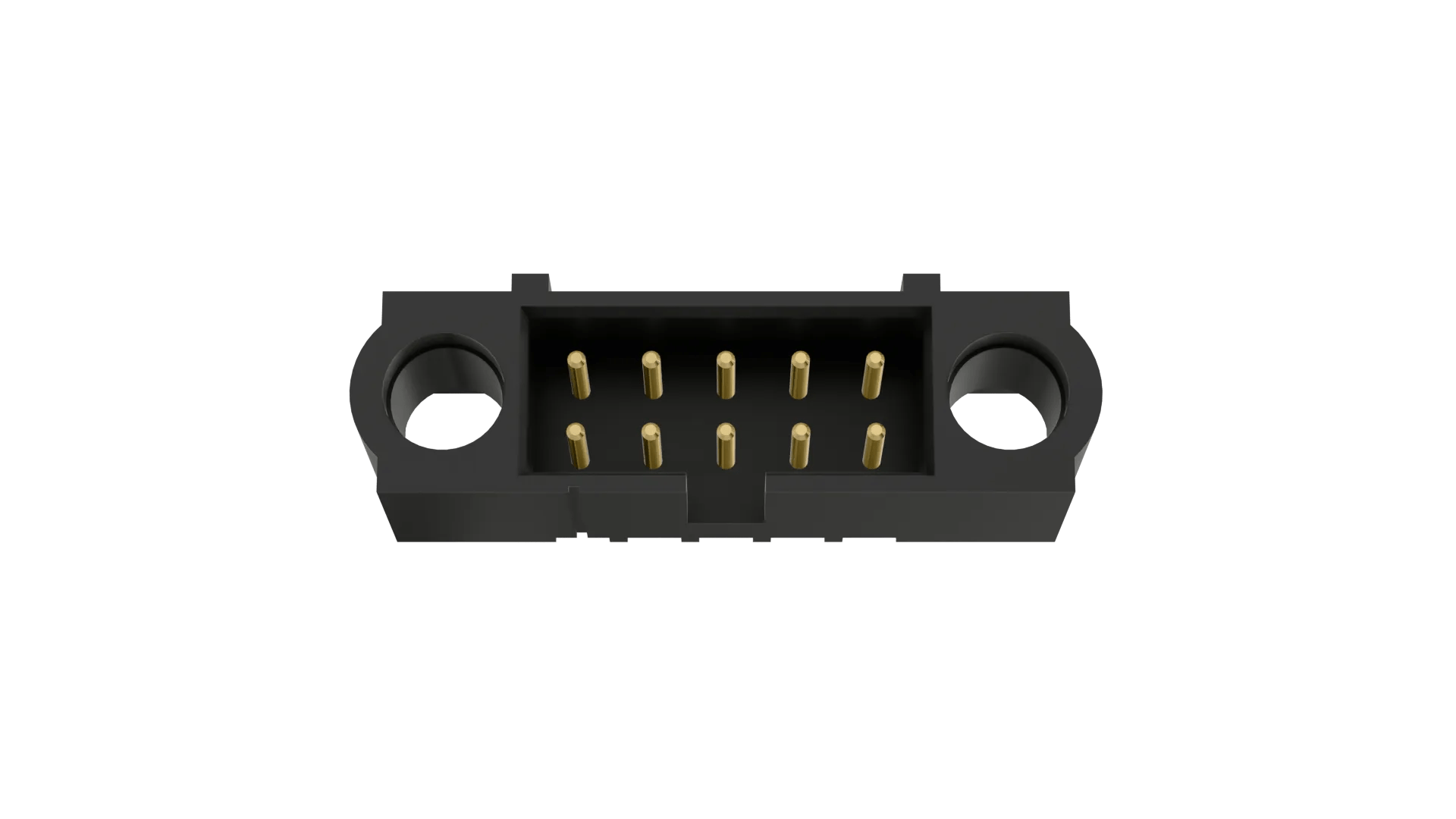

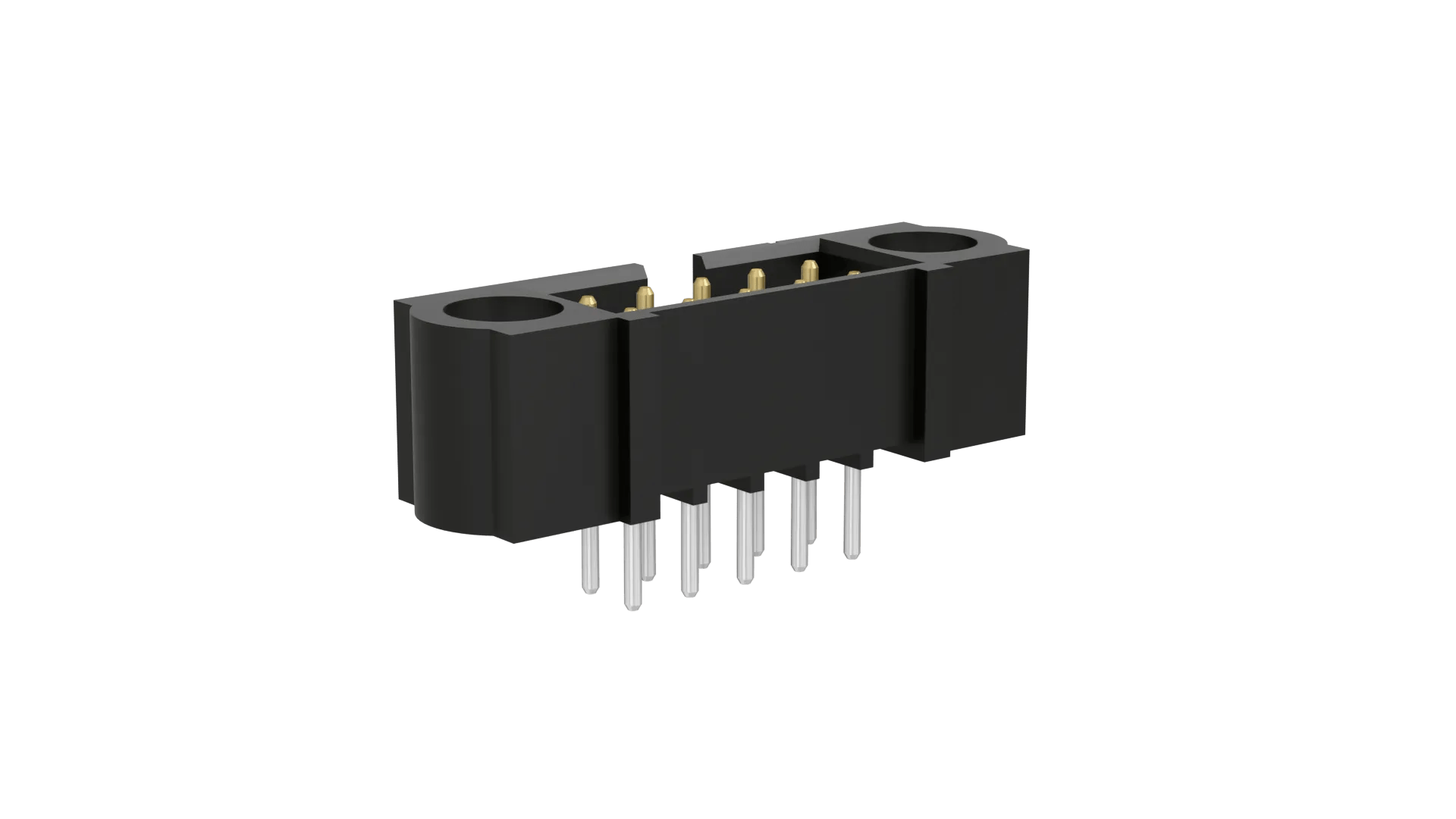

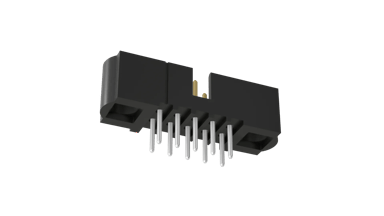

M80-5201042

5+5 Pos. Male DIL Vertical Throughboard Conn. No Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Add to Favorites

152 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row, 3mm PC Tail connector without jackscrews – 10 contacts (5+5).
  • Gold finish on contact area, Tin finish on termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

None fitted

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.684g

Overall Dimensions (L x W x D) in mm:

20.00 x 6.00 x 8.85

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.30mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
