M80-5122642

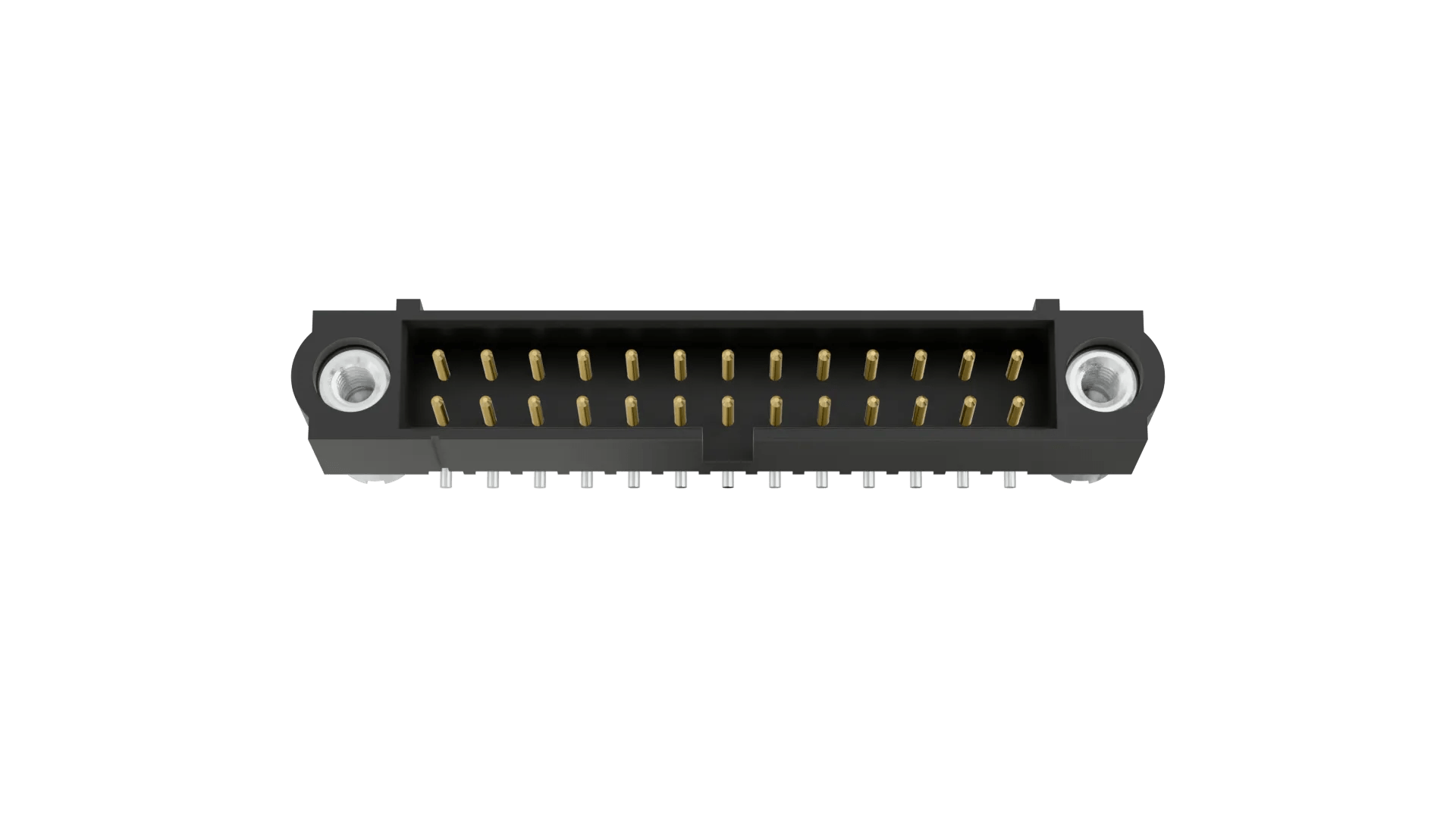

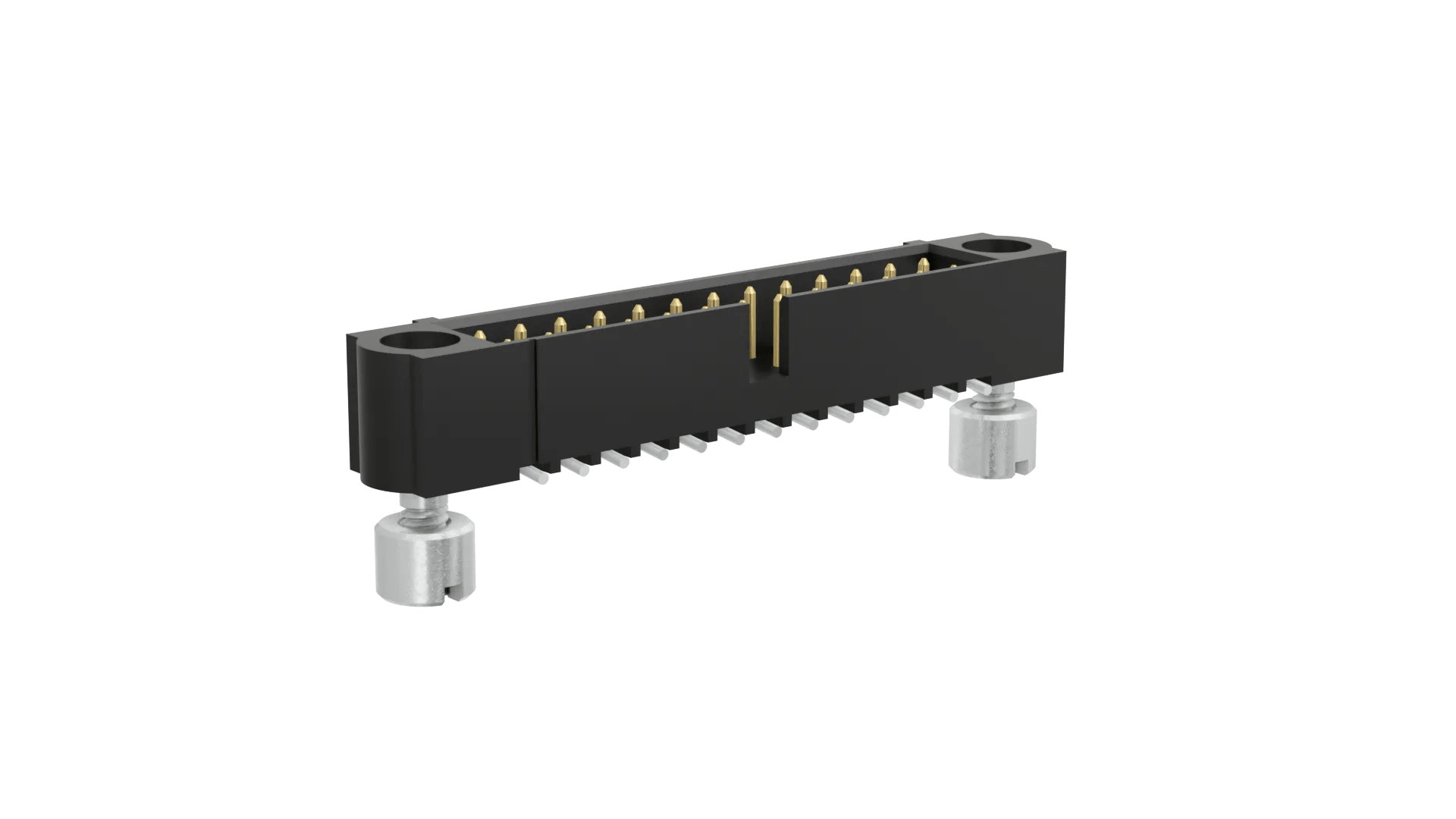

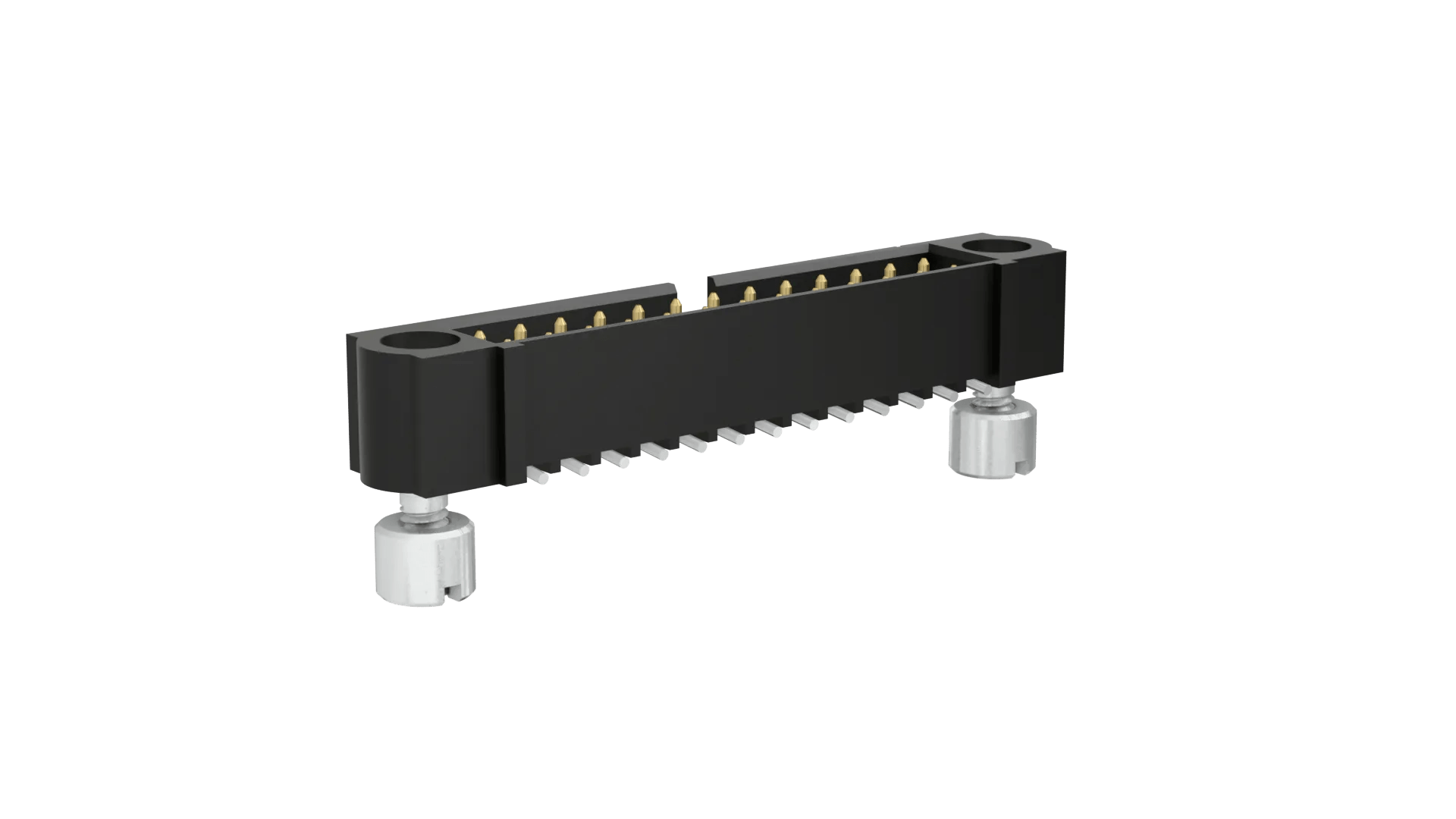

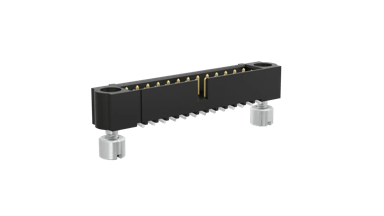

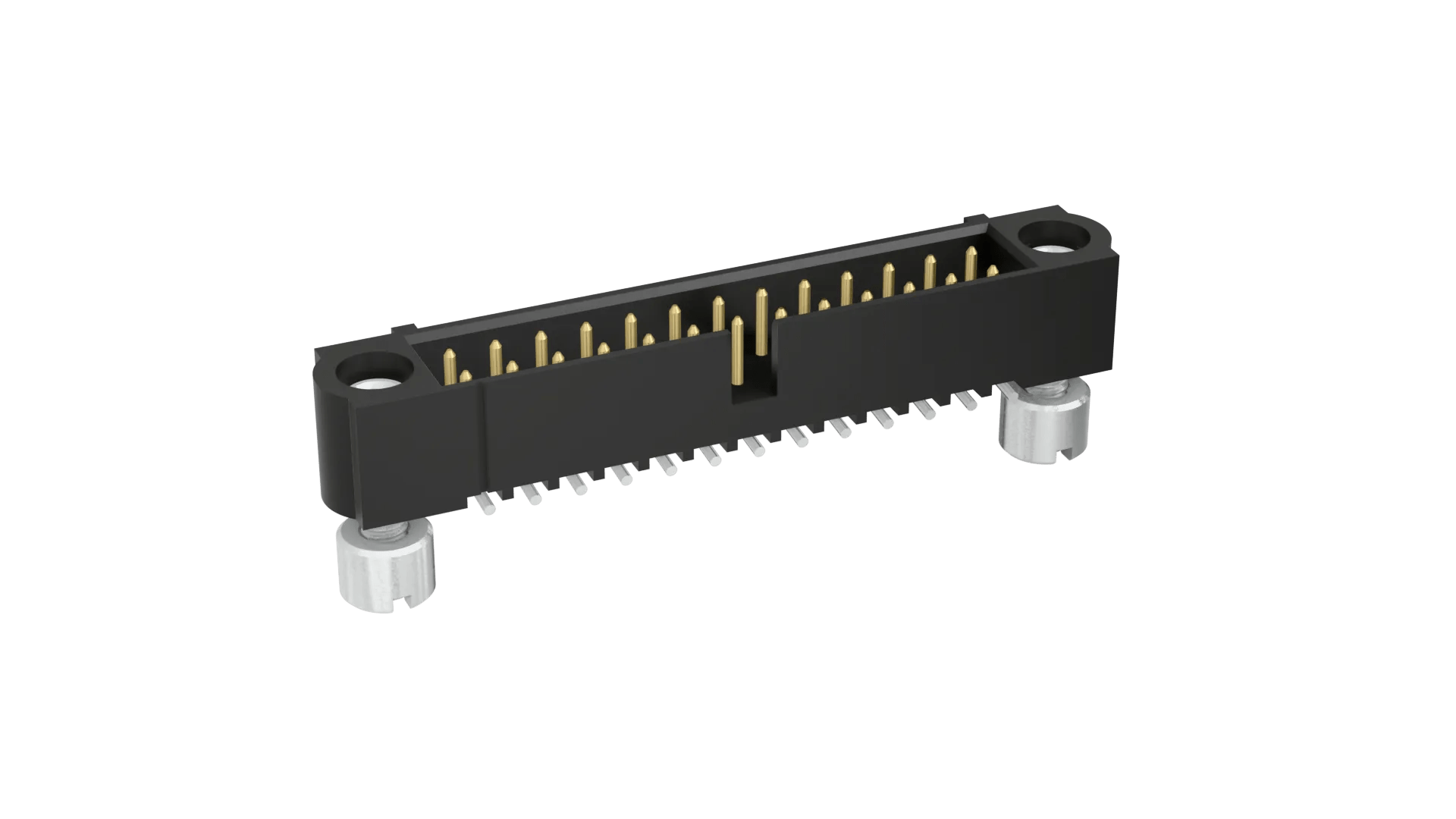

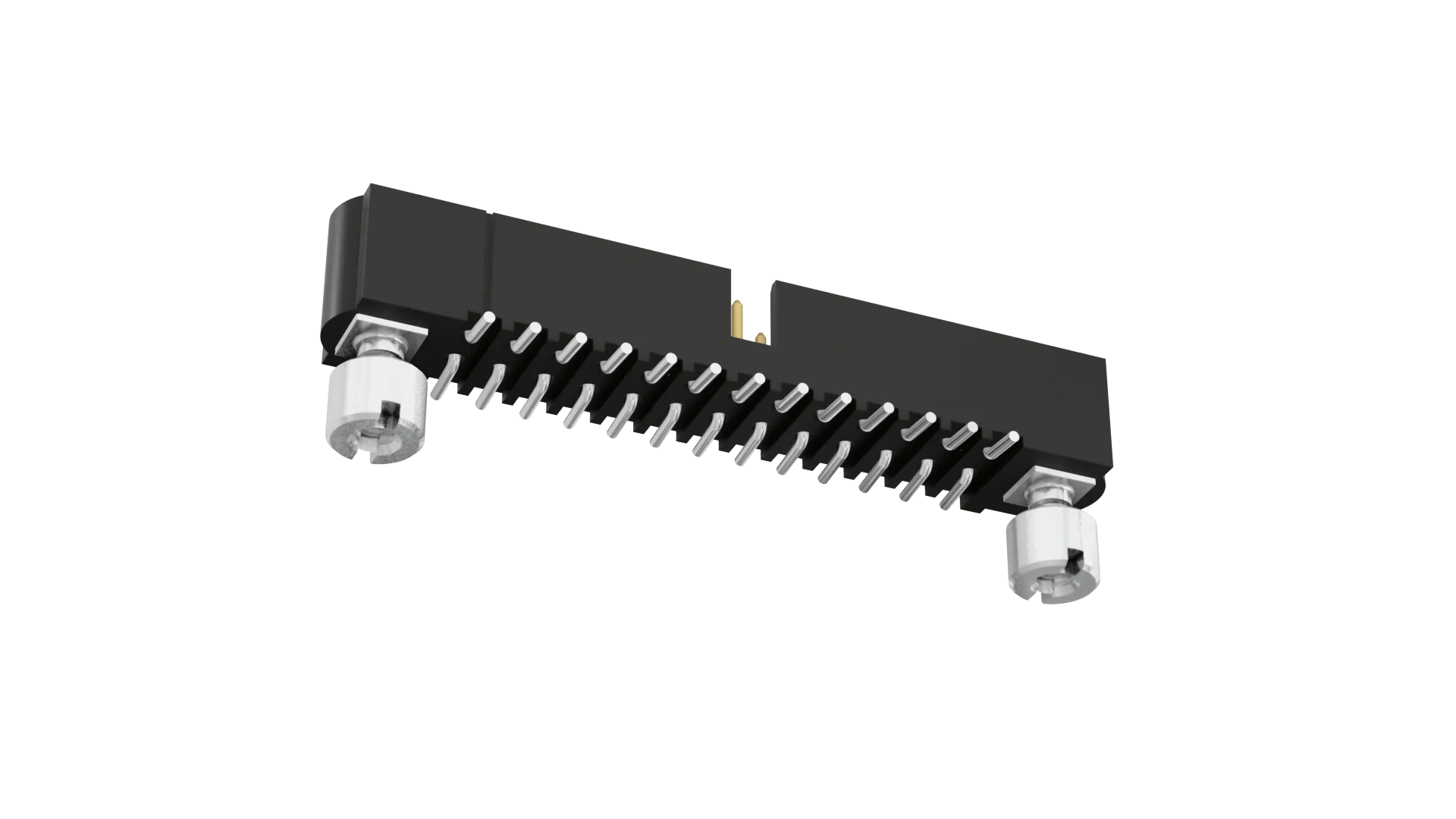

13+13 Pos. Male DIL Vertical SMT Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, Surface Mount connector with 3.5mm board mount jackscrews (with slotted nuts) – 26 contacts (13+13).
  • Gold finish on contact area, Tin finish on termination. Packaged in tubes.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating connector

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Jackscrew with Board Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

26

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.906g

Overall Dimensions (L x W x D) in mm:

36.00 x 6.75 x 9.30

Thread Size:

M2

Height of Connector above PCB:

5.80mm

Availability

Distributor Location Quantity
Anglia
Europe
Status19
Avnet Abacus
Europe
Status21
Digi-Key
Global
Status176
Farnell
Europe
Status40
Harwin
Europe
Status511
Mouser Electronics Inc
Global
Status91
Newark
USA
Status39
TTI Inc
USA
Status28

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
