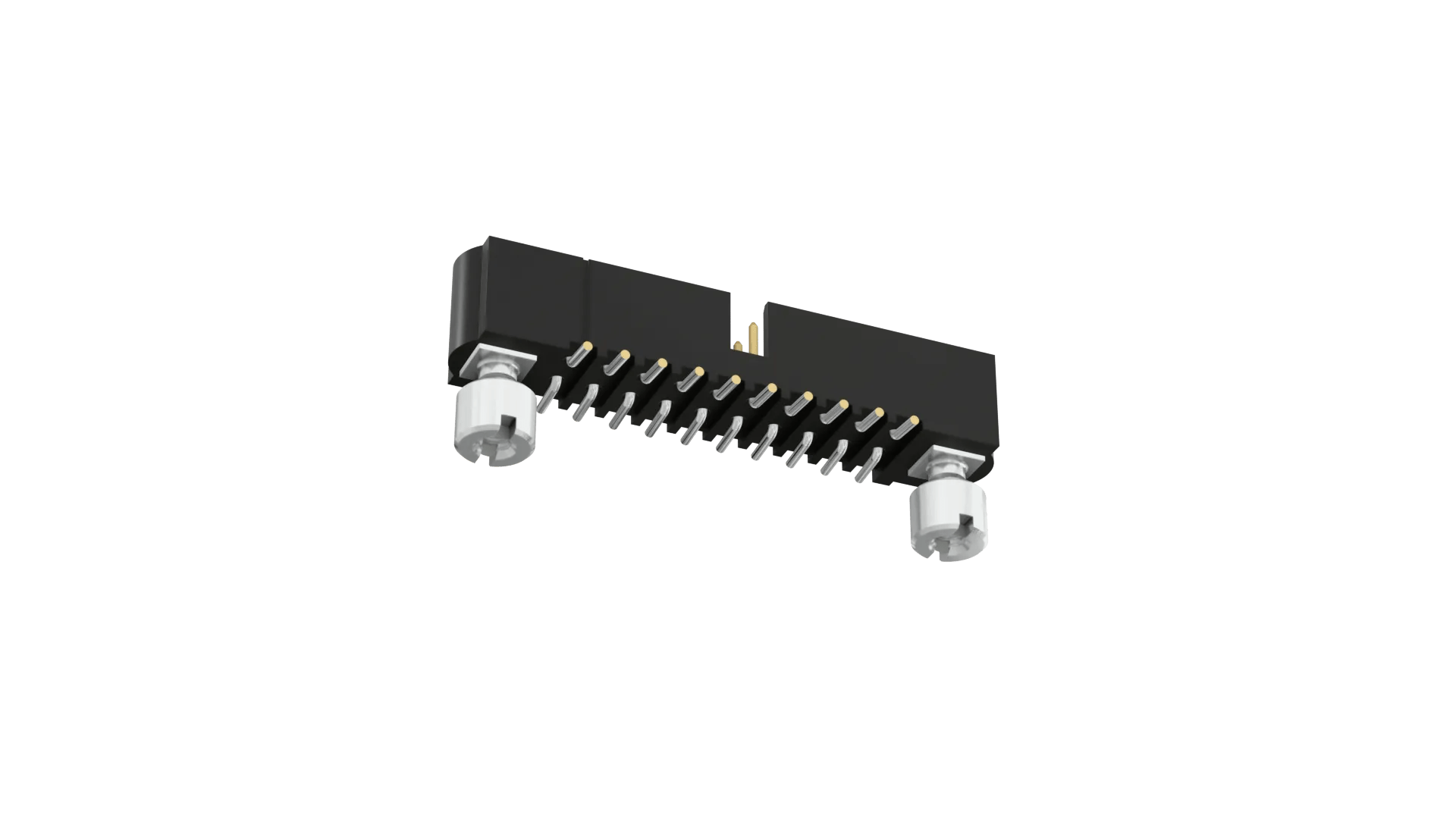

Representative image of product family.

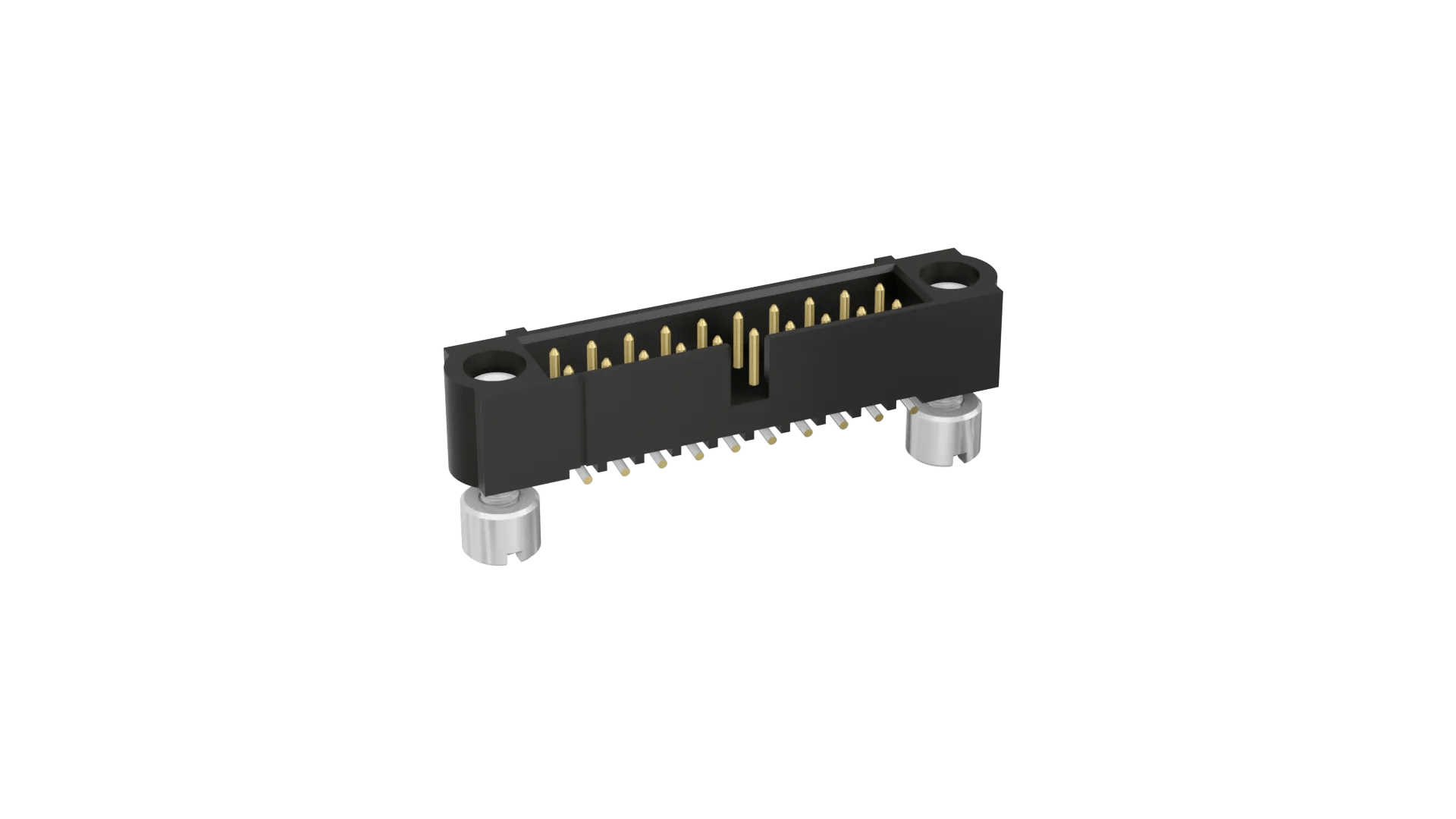

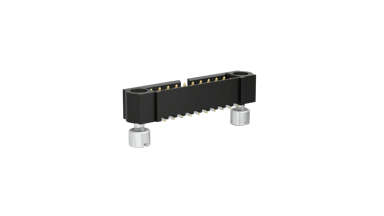

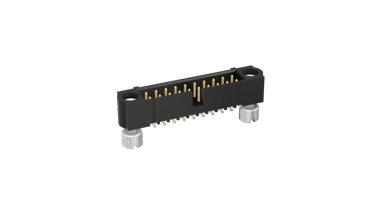

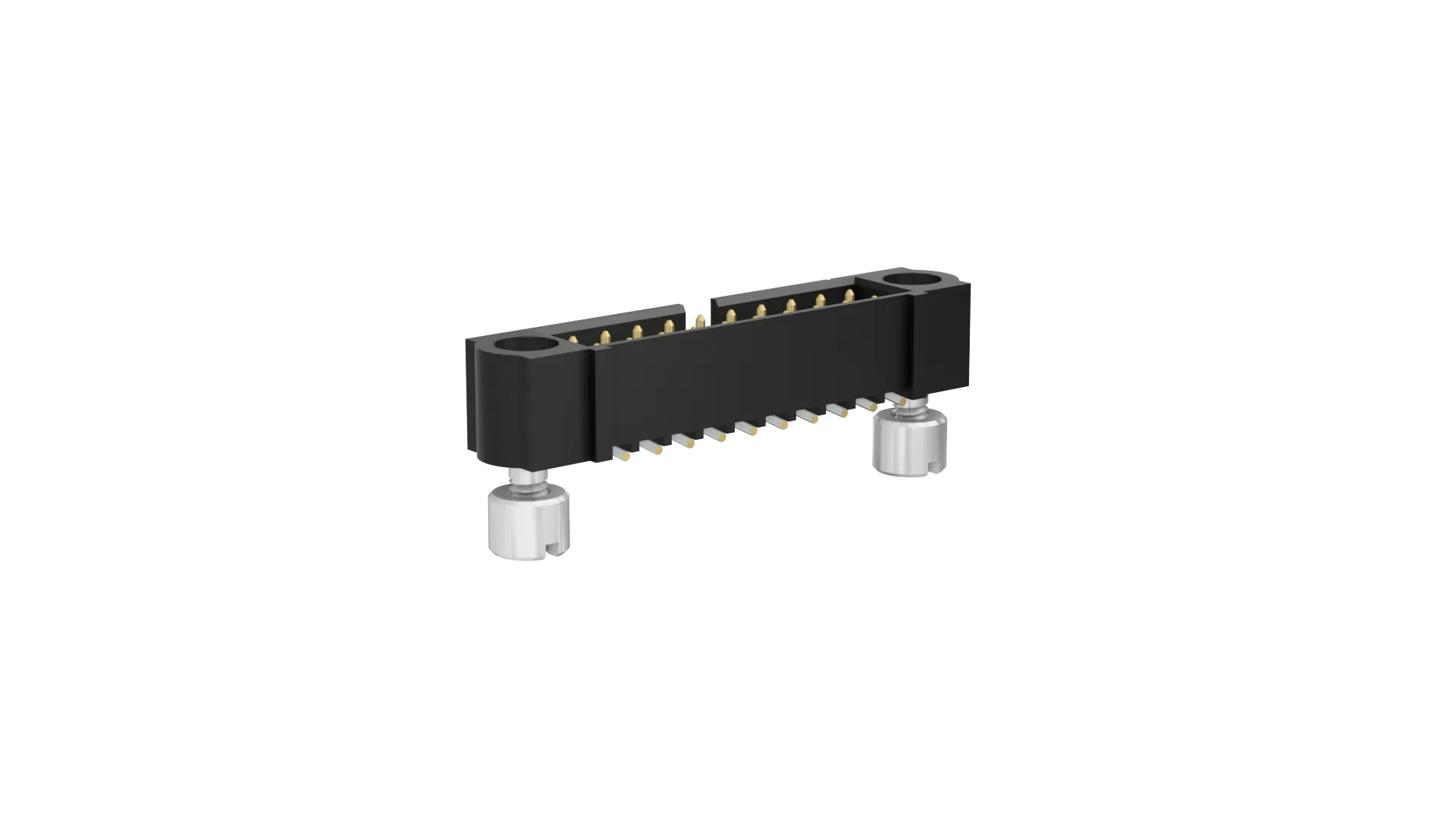

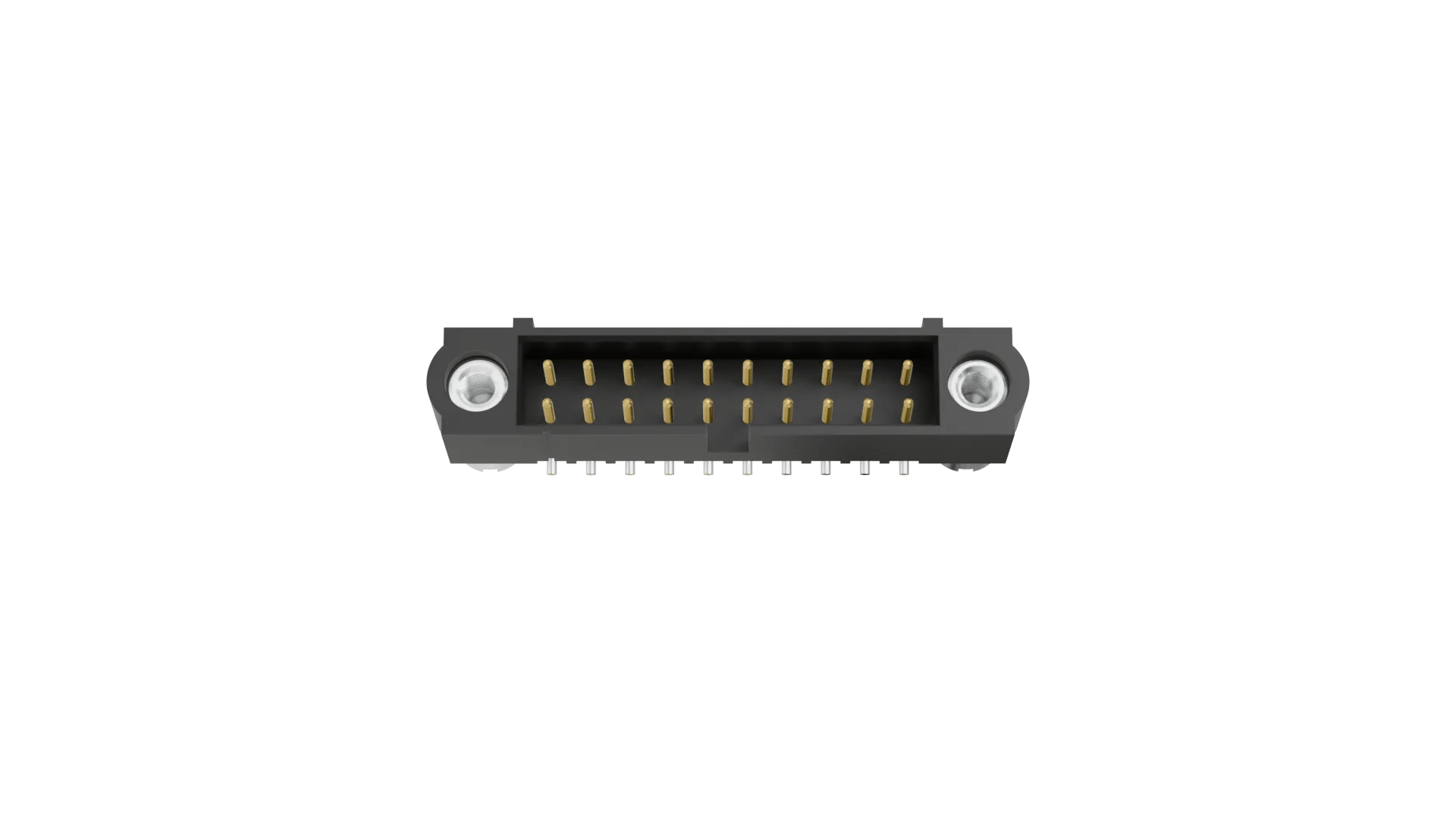

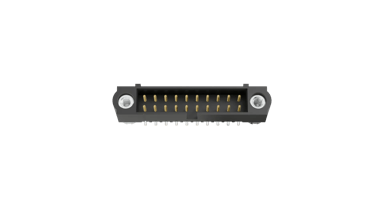

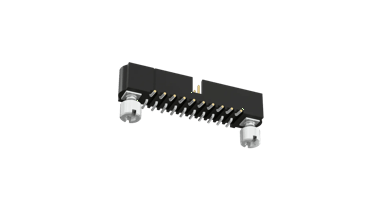

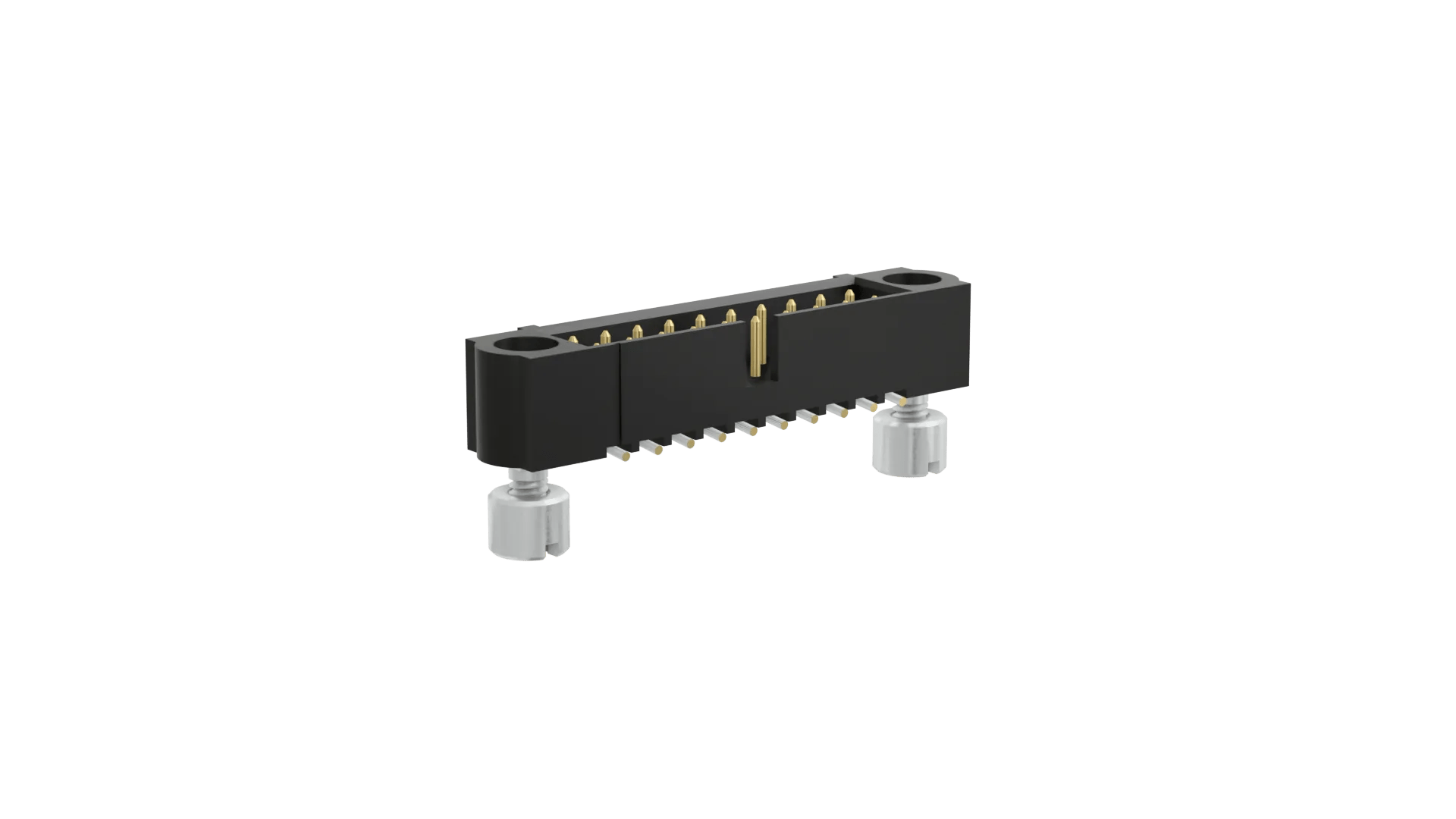

M80-5122042

10+10 Pos. Male DIL Vertical SMT Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, Surface Mount connector with 3.5mm board mount jackscrews (with slotted nuts) - 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination. Packaged in tubes.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 93 Website
Digi-Key Global 515 Buy Now
Farnell Europe 446 Buy Now
Mouser Electronics Inc Global 311 Buy Now
Newark USA 436 Buy Now
TTI Inc USA 176 Buy Now
Harwin Europe 272

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: Ø0.5mm
Current Rating: Dependent on mating connector
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews: Jackscrew with Board Mount

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.694g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 20
Body Length: 30mm
Height of Connector above PCB: 5.8mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Mating Profiles/Heights

Related Products

+
Screwdriver (for board mount units): Z80-298
Product Family: M80-512
