  • M80-5101442 - 7+7 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

M80-5101442

7+7 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

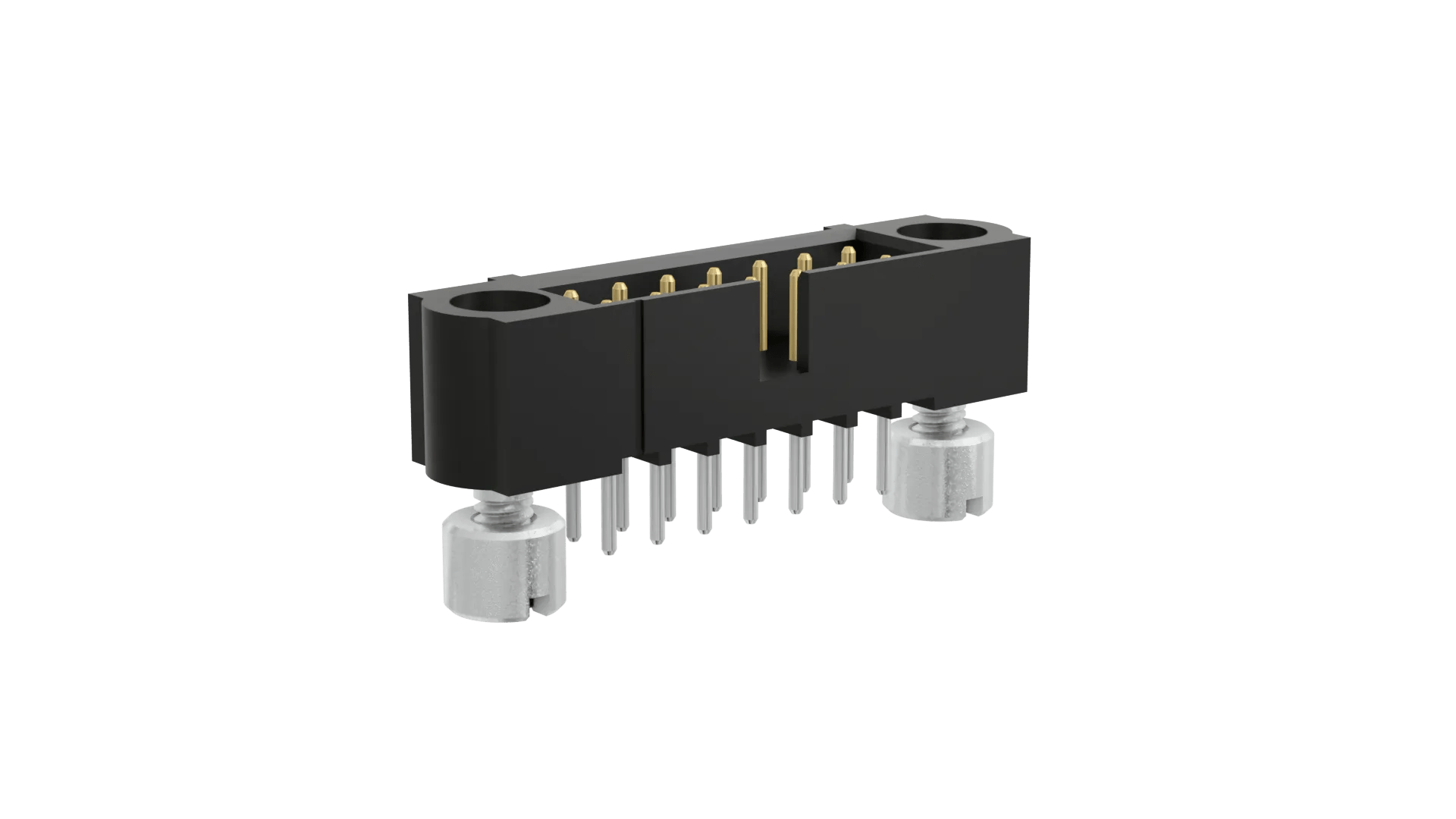

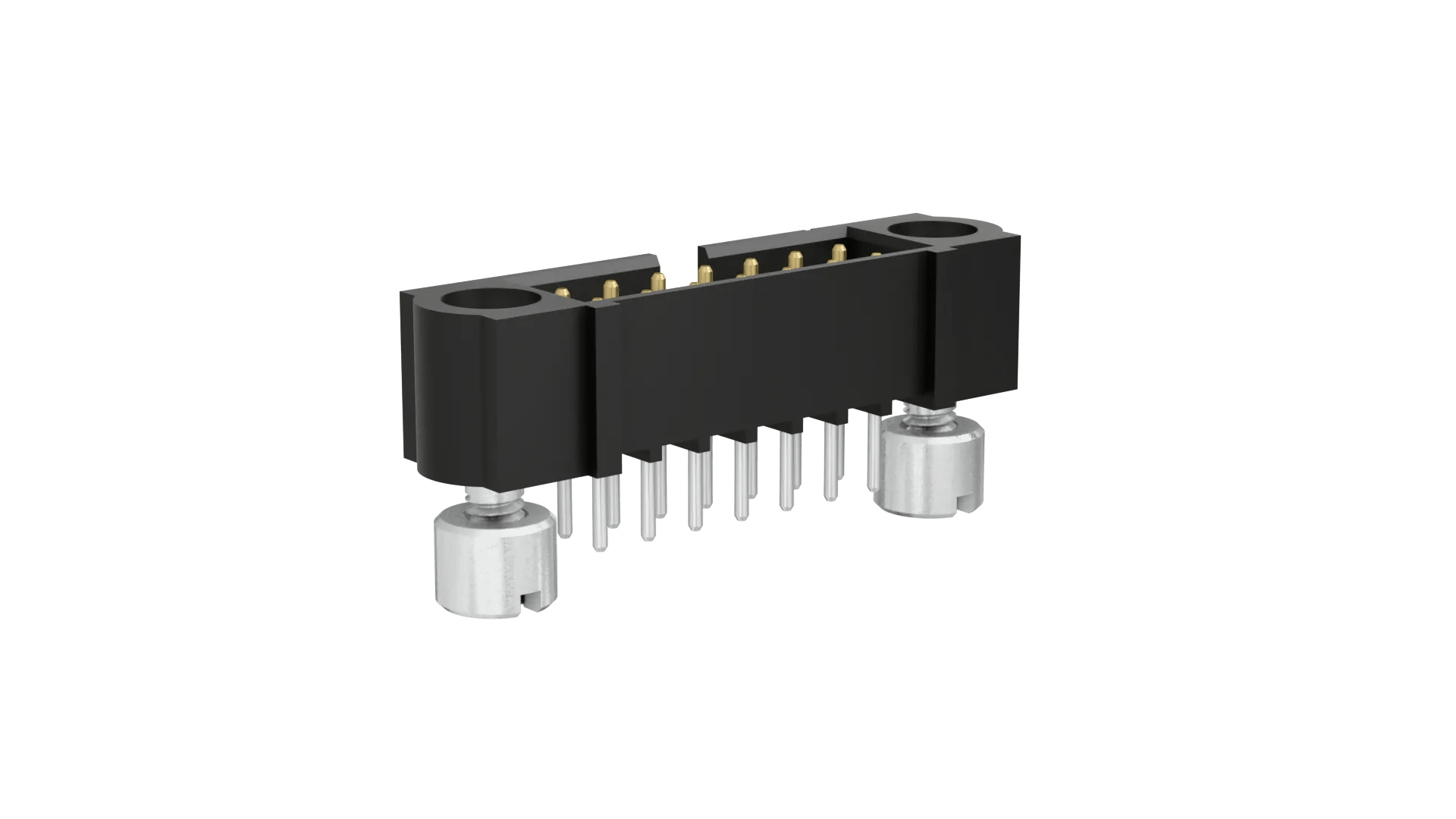

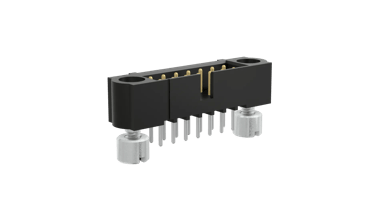

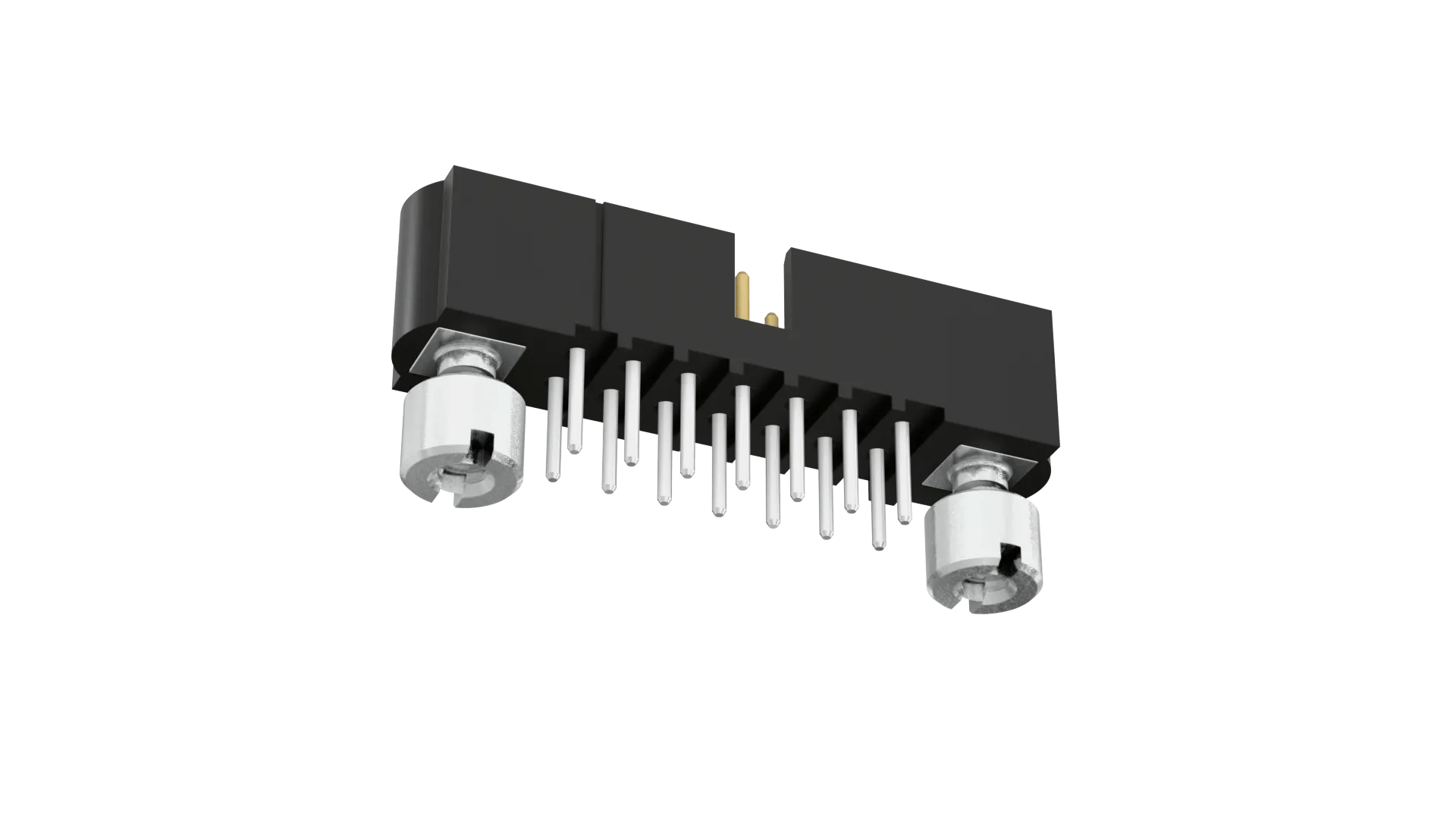

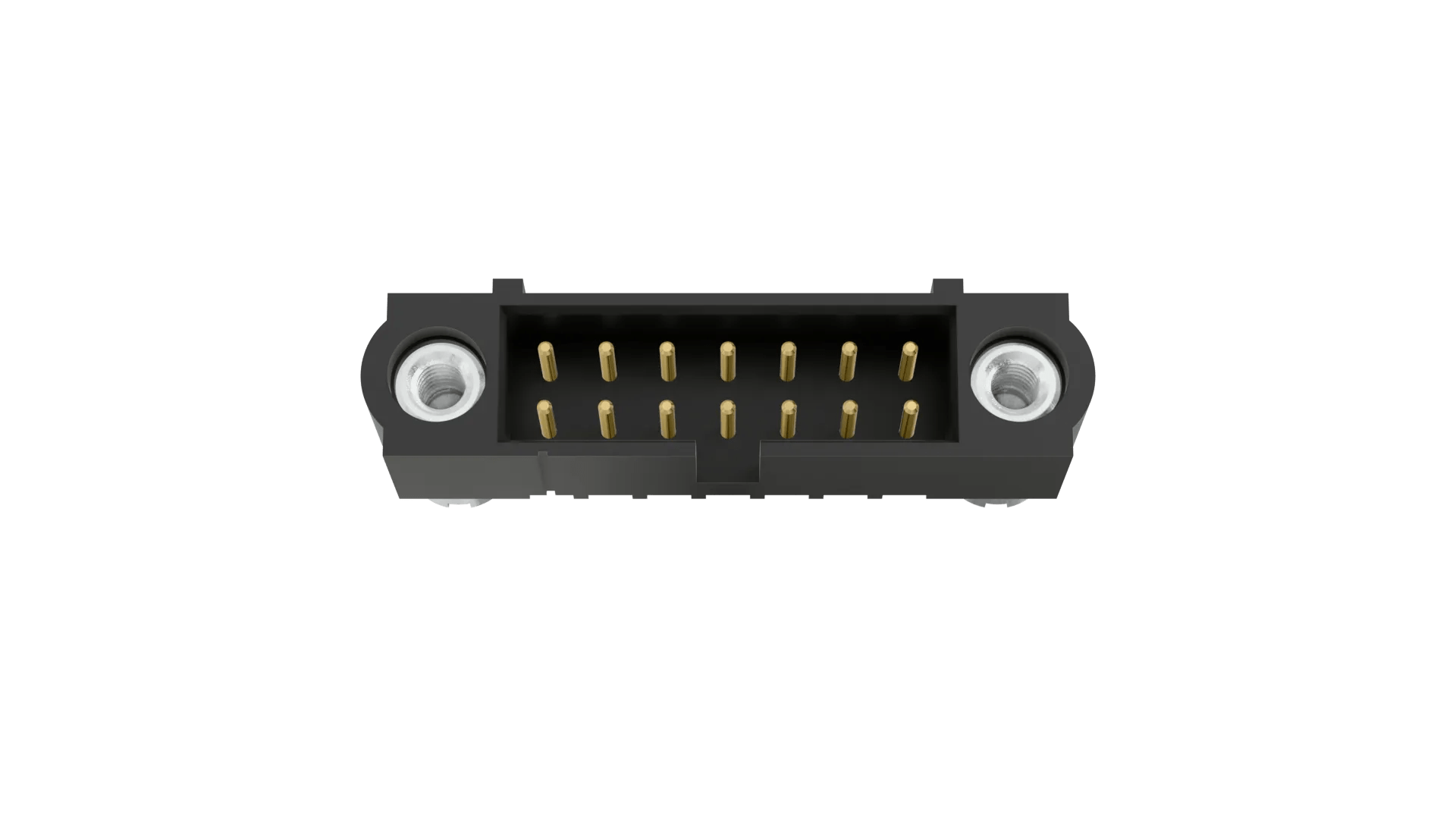

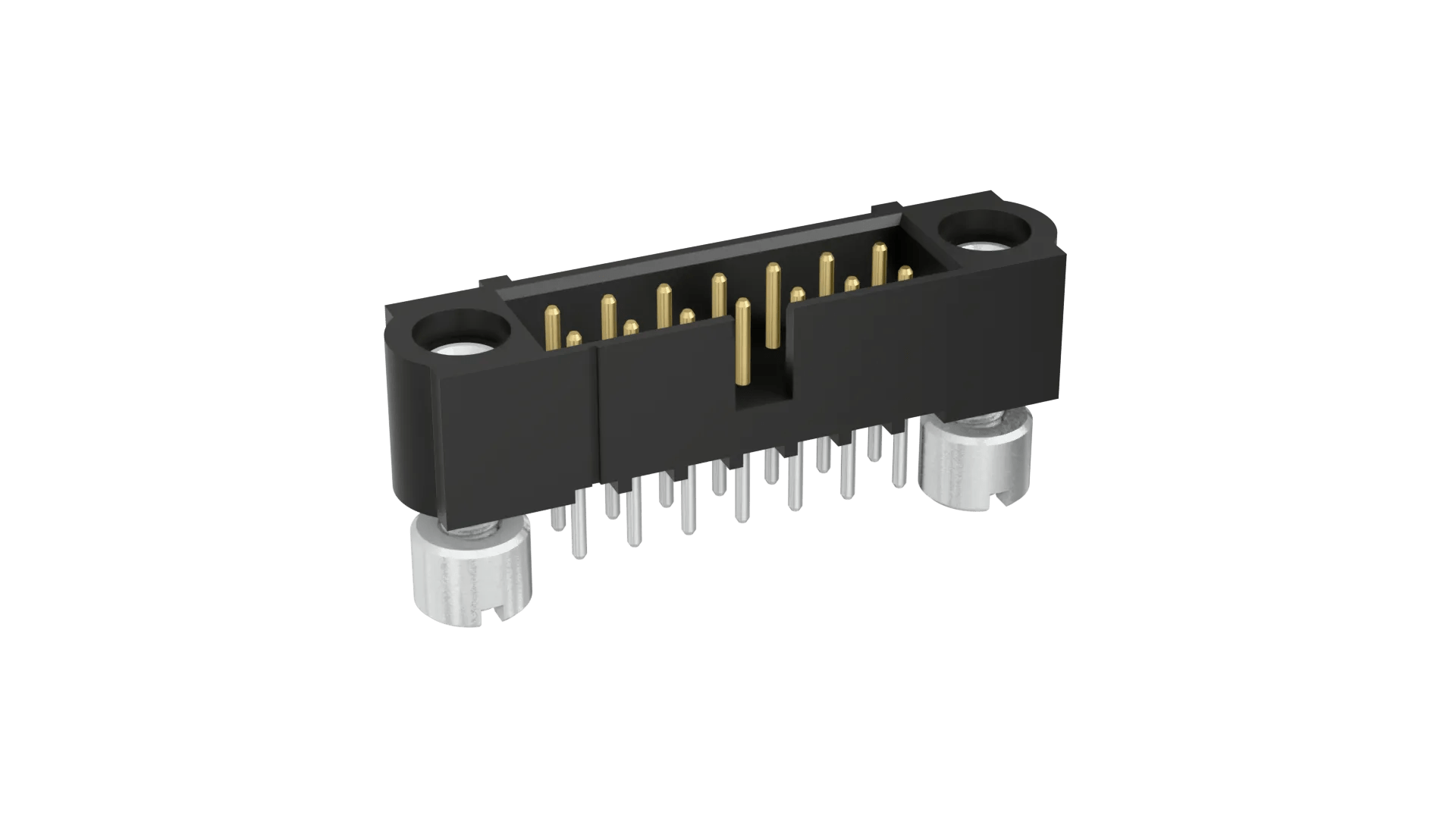

  • Double Row, 3mm PC Tail connector with 3.5mm board mount jackscrews - 14 contacts (7+7).
  • Gold finish on contact area, Tin finish on termination. Slotted nuts provided for assembly to panel mount stud.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Avnet Abacus Europe 44 Buy Now
Digi-Key Global 229 Buy Now
Mouser Electronics Inc Global 70 Buy Now
TTI Europe Europe 132 Buy Now
TTI Inc USA 11 Buy Now
Harwin Europe 902

Stock available: contact distributor to purchase

Harwin Inc USA 33

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: Dependent on mating connector
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews: Jackscrew with Board Mount

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.757g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 14
Body Length: 24mm
Height of Connector above PCB: 5.5mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Length of PC Tail: 3mm
Mating Profiles/Heights

Related Products

+
Strain-Relief Hoods/Backshells: M80-9061402
Other products to be used with this item: M80-9061402
Screwdriver (for board mount units): Z80-298
Product Family: M80-510
