  • M80-5100842 - 4+4 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

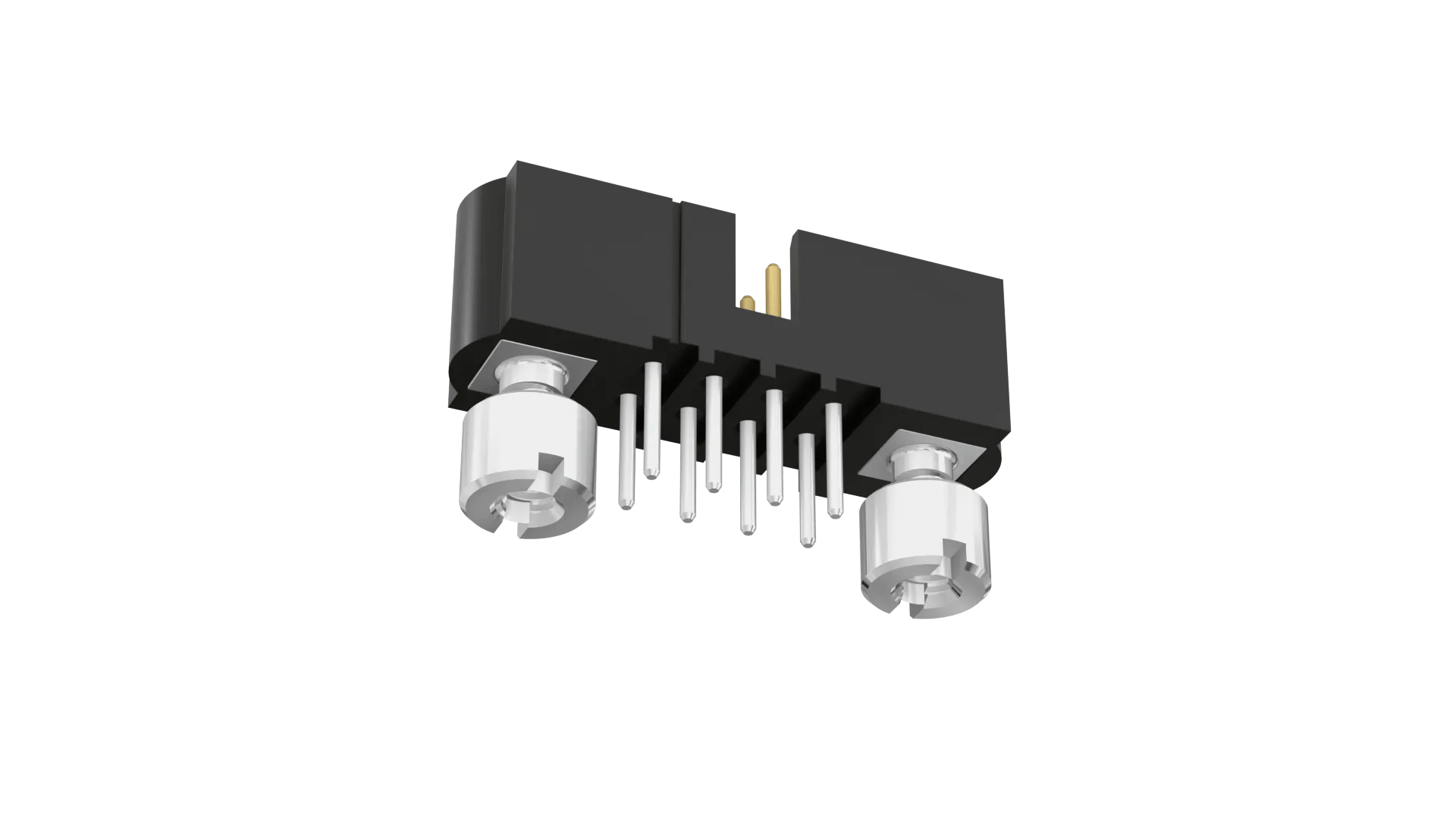

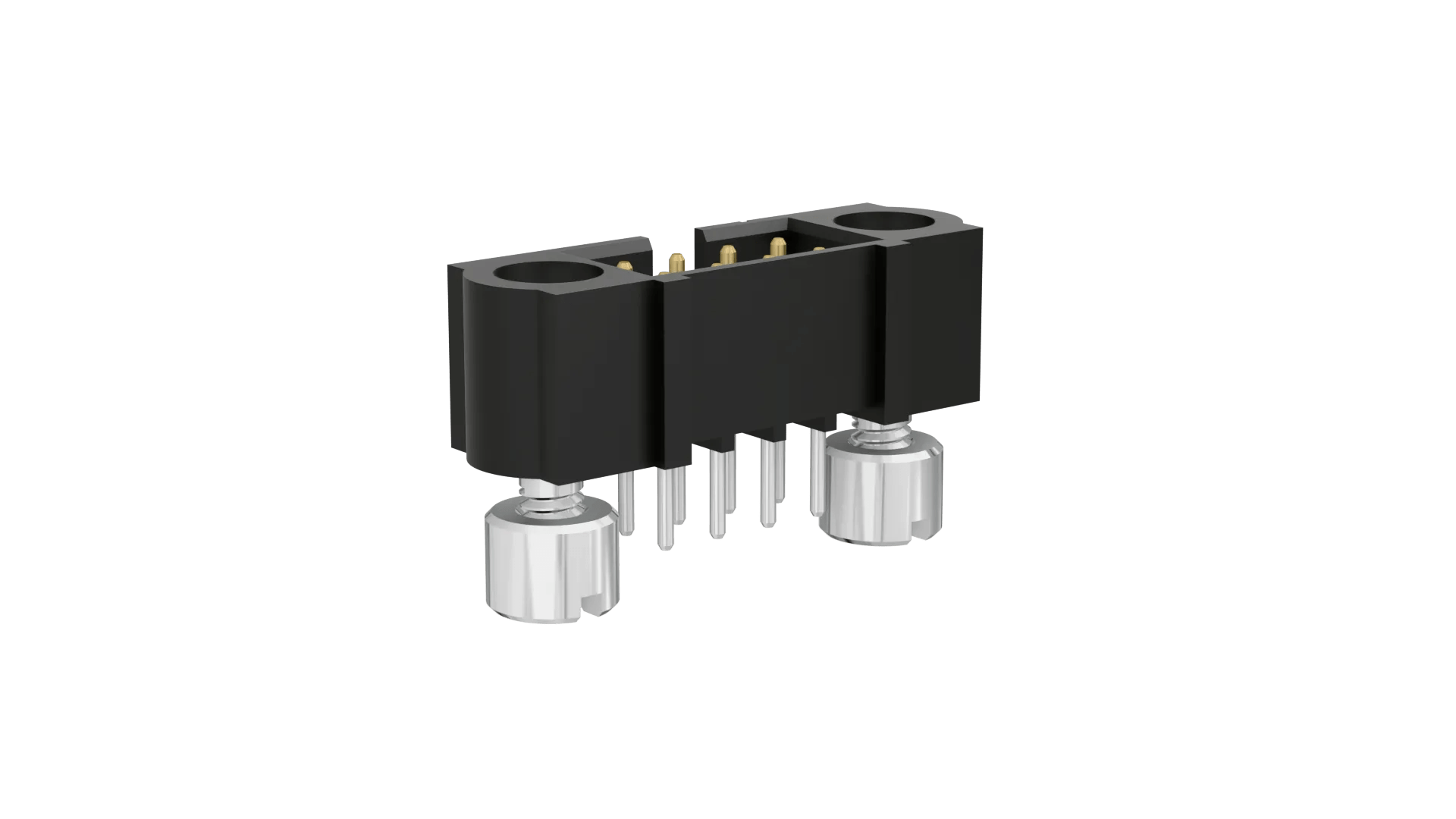

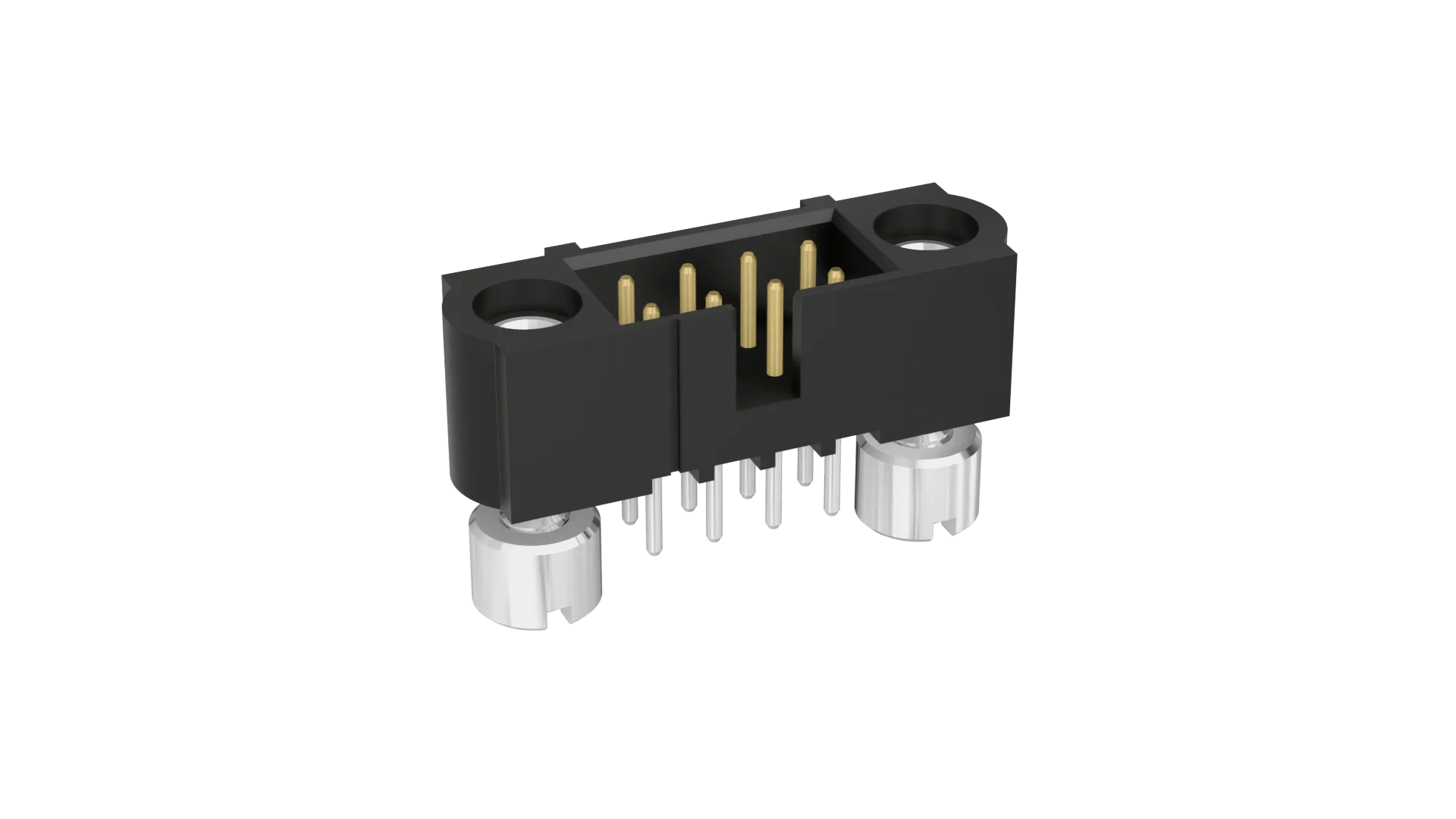

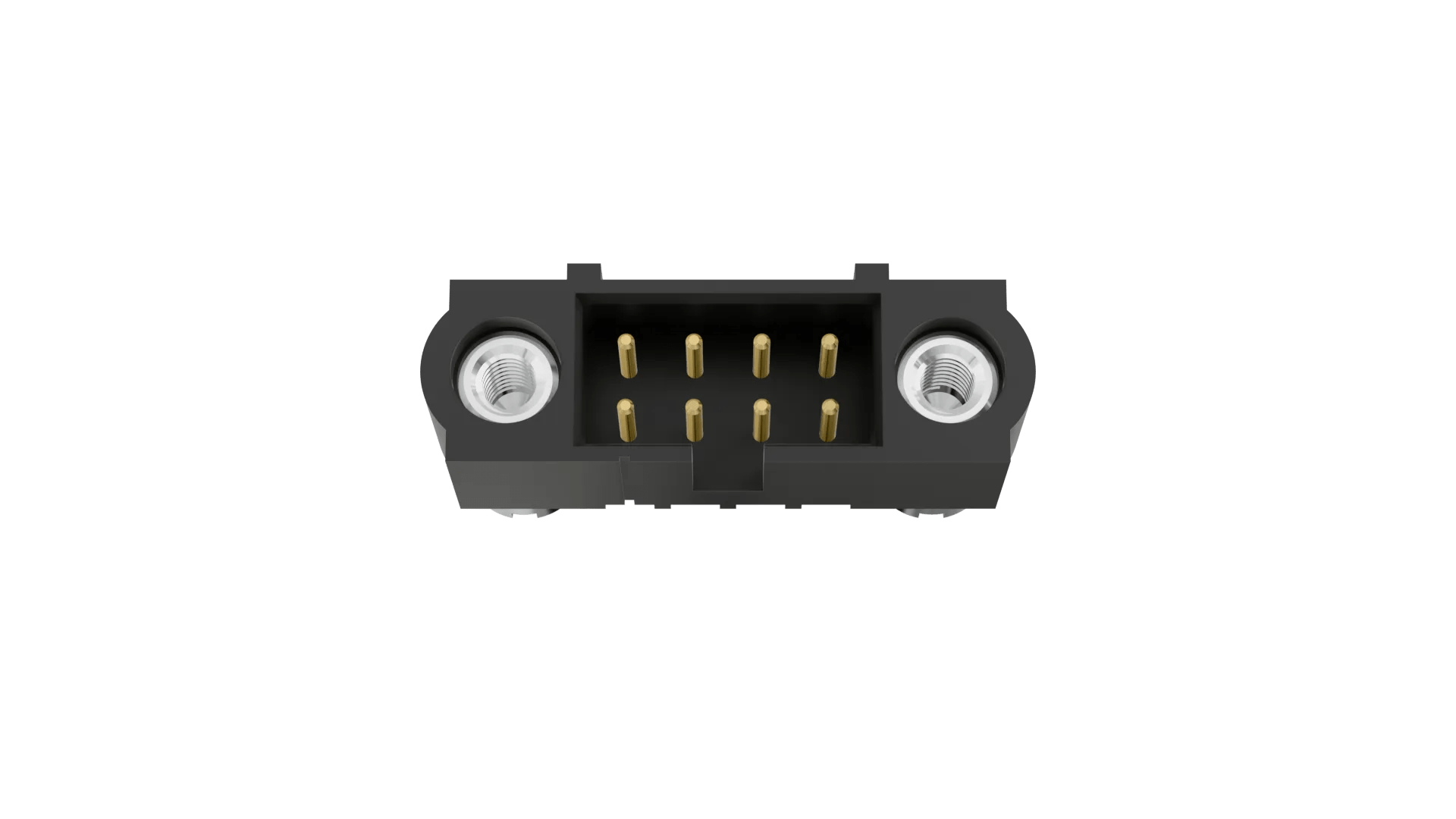

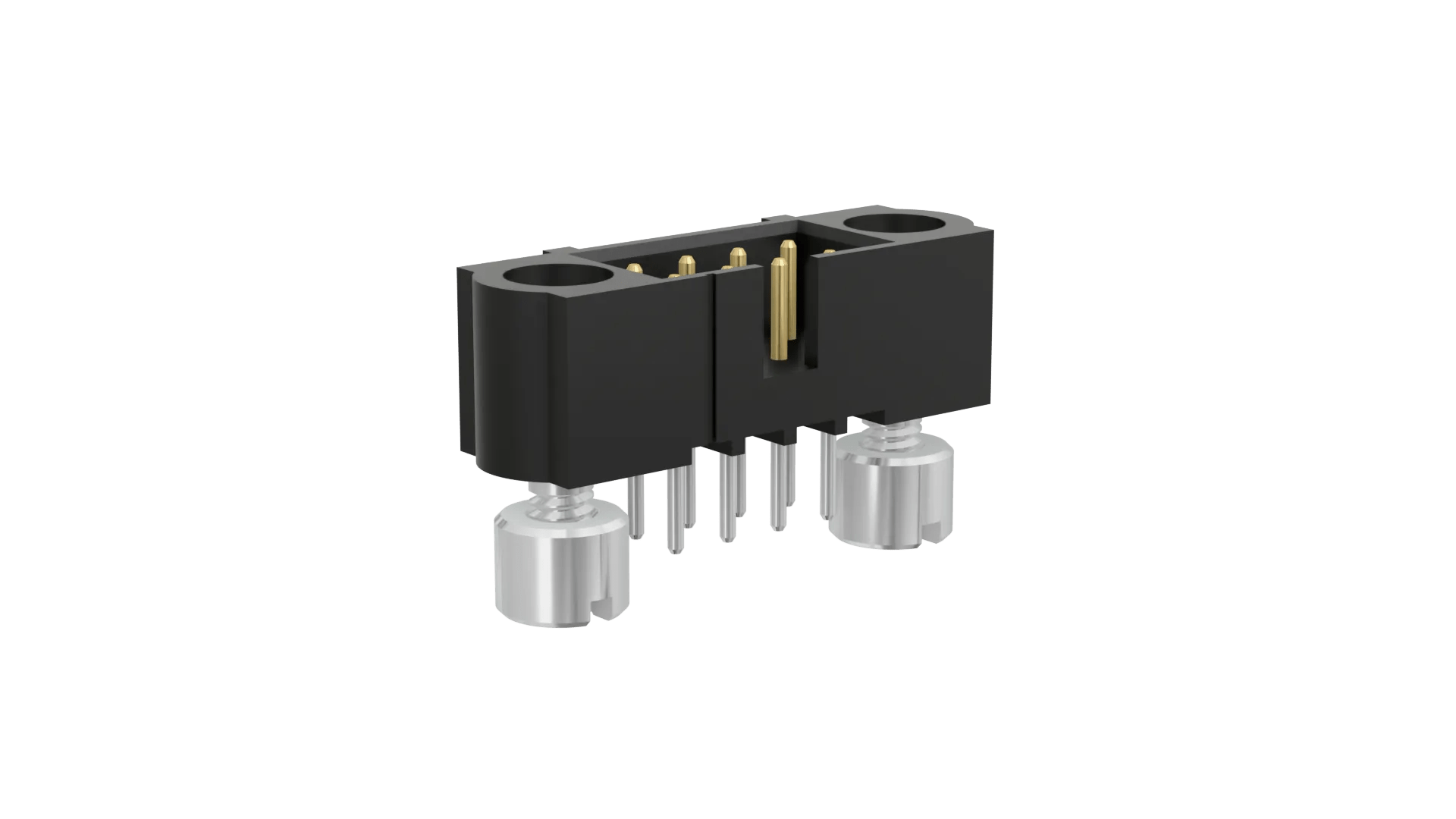

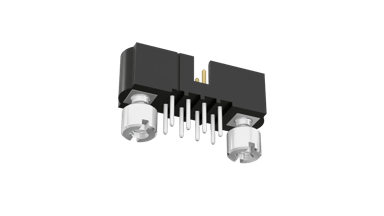

Representative image of product family.

M80-5100842

4+4 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, 3mm PC Tail connector with 3.5mm board mount jackscrews - 8 contacts (4+4).
  • Gold finish on contact area, Tin finish on termination. Slotted nuts provided for assembly to panel mount stud.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 82 Website
Avnet Abacus Europe 126 Buy Now
Digi-Key Global 442 Buy Now
Farnell Europe 185 Buy Now
Mouser Electronics Inc Global 266 Buy Now
TTI Europe Europe 42 Buy Now
TTI Inc USA 42 Buy Now
Harwin Europe 714

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: Dependent on mating connector
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews: Jackscrew with Board Mount

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.531g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 8
Body Length: 18mm
Height of Connector above PCB: 5.5mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Length of PC Tail: 3mm
Mating Profiles/Heights

Related Products

+
Strain-Relief Hoods/Backshells: M80-9060802
Other products to be used with this item: M80-9060802
Screwdriver (for board mount units): Z80-298
Product Family: M80-510
