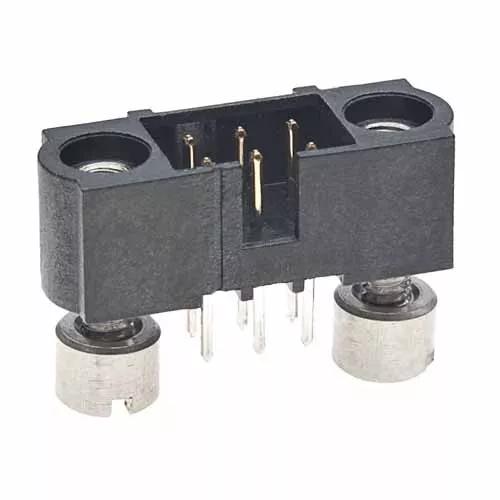

  • M80-5100622 - 3+3 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

M80-5100622

3+3 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

  • Double Row, 3mm PC Tail connector with 3.5mm board mount jackscrews - 6 contacts (3+3).
  • Gold finish on contact area, Tin/Lead finish on termination. Slotted nuts provided for assembly to panel mount stud.

Active

Popular product: currently in stock in network

Not RoHS Compliant - 2011/65/EU

RoHS Compliant alternative - M80-5100642

Product Information

Specification

+
Product Type: 2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: PC Tail / Throughboard
Mating Pin Size: Ø0.5mm
Current Rating: Dependent on mating connector
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 235°C for 5 seconds
Style of Jackscrews: Jackscrew with Board Mount

Materials

+
Finish/Plating on Termination: Tin/Lead
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Phosphor Bronze
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.456g
Packaging Style: Tube

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 6
Body Length: 16mm
Height of Connector above PCB: 5.5mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Thread Size: M2
Length of PC Tail: 3mm
Mating Profiles/Heights

Related Products

+
Screwdriver (for board mount units): Z80-298
Product Family: M80-510
