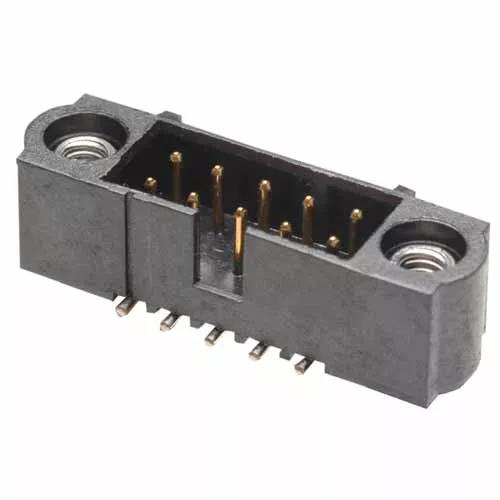

6+6 Pos. Male DIL Vertical SMT Conn. Jackscrews
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Double Row, Surface Mount connector with jackscrews (internal only) – 12 contacts (6+6).
- Gold finish on contact area, Tin finish on termination. Packaged in tubes.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
Dependent on mating contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
22.00 x 6.75 x 5.80
Height of Connector above PCB:
133 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
