M80-5003442

17+17 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

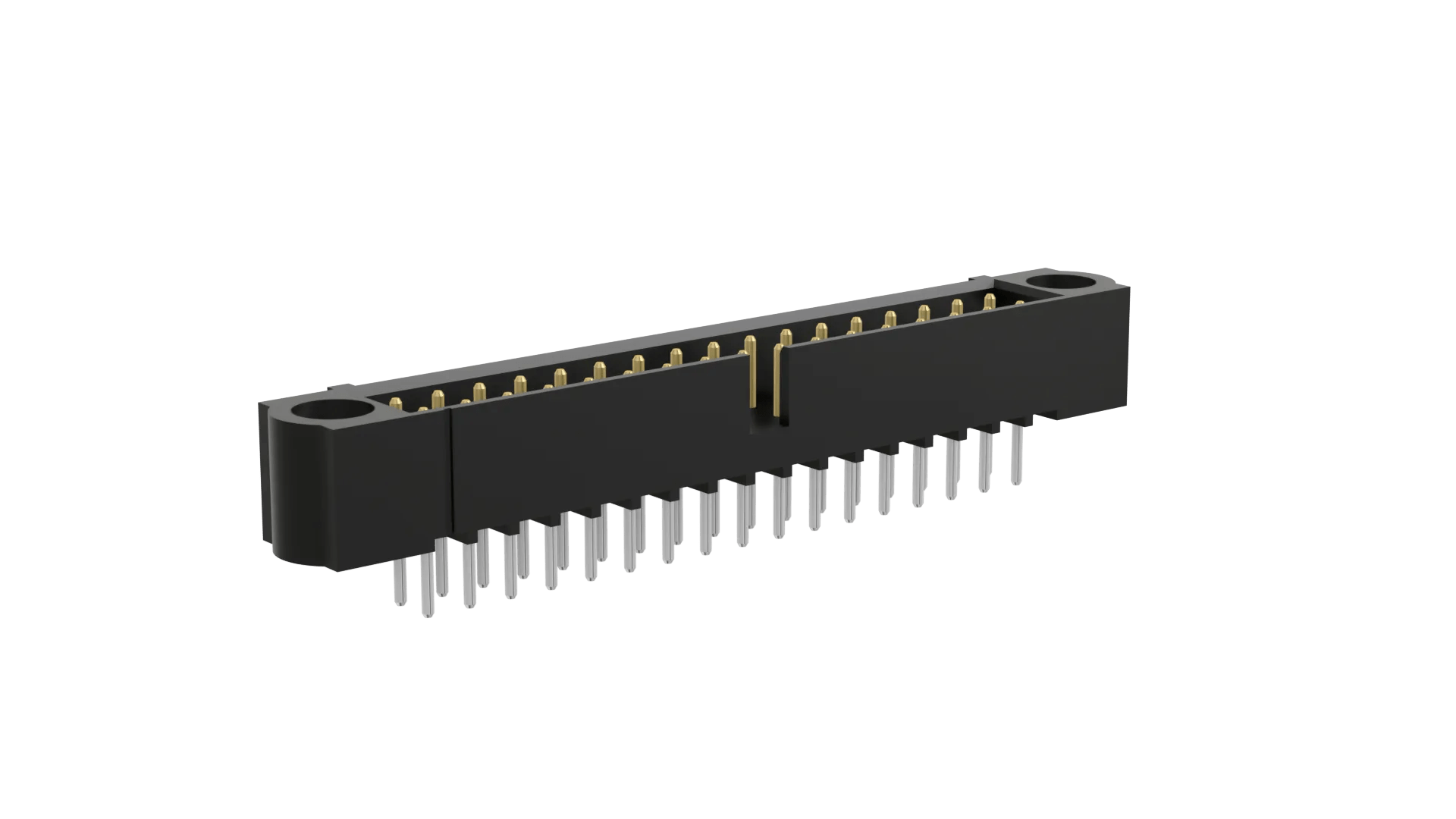

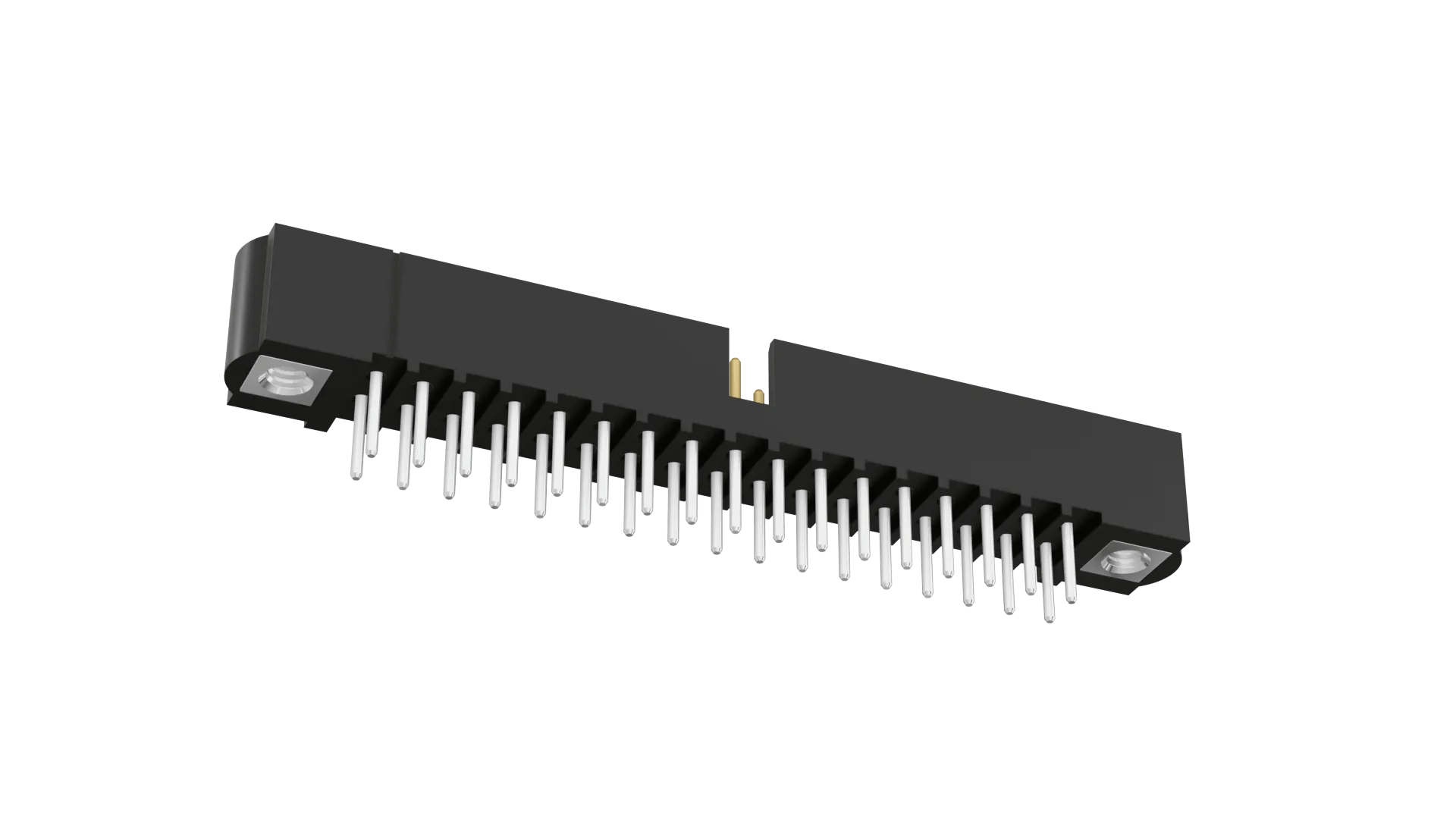

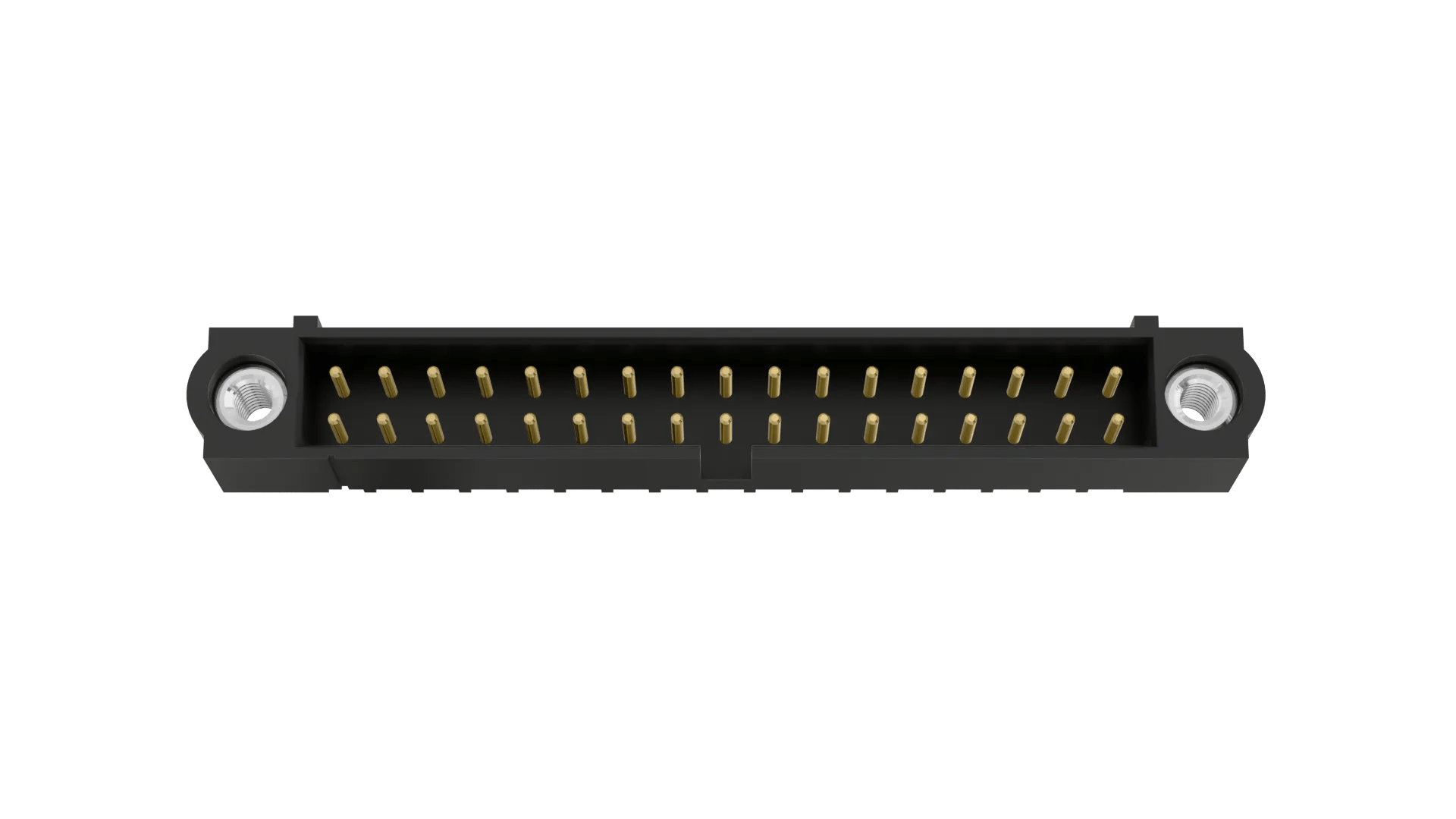

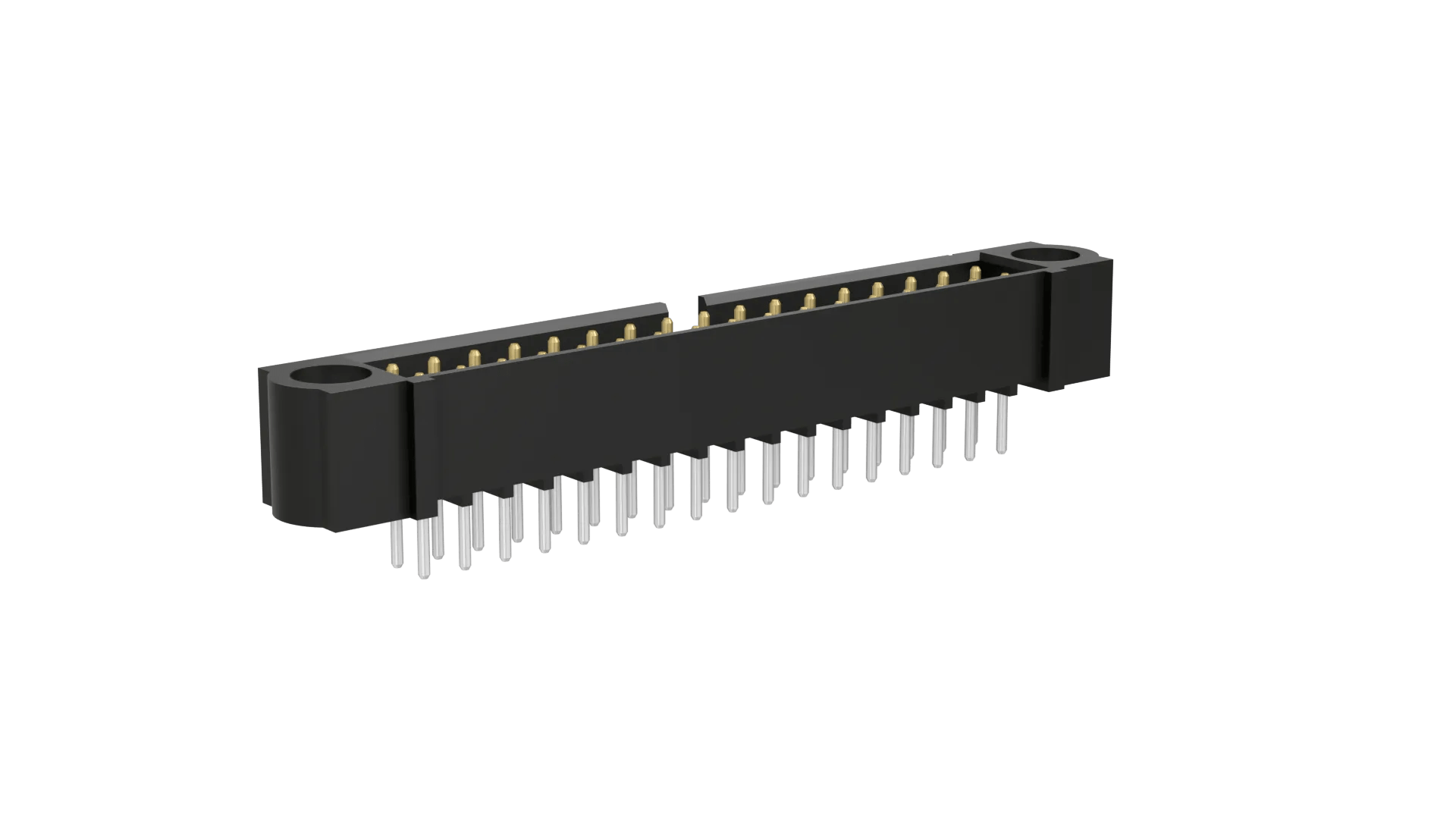

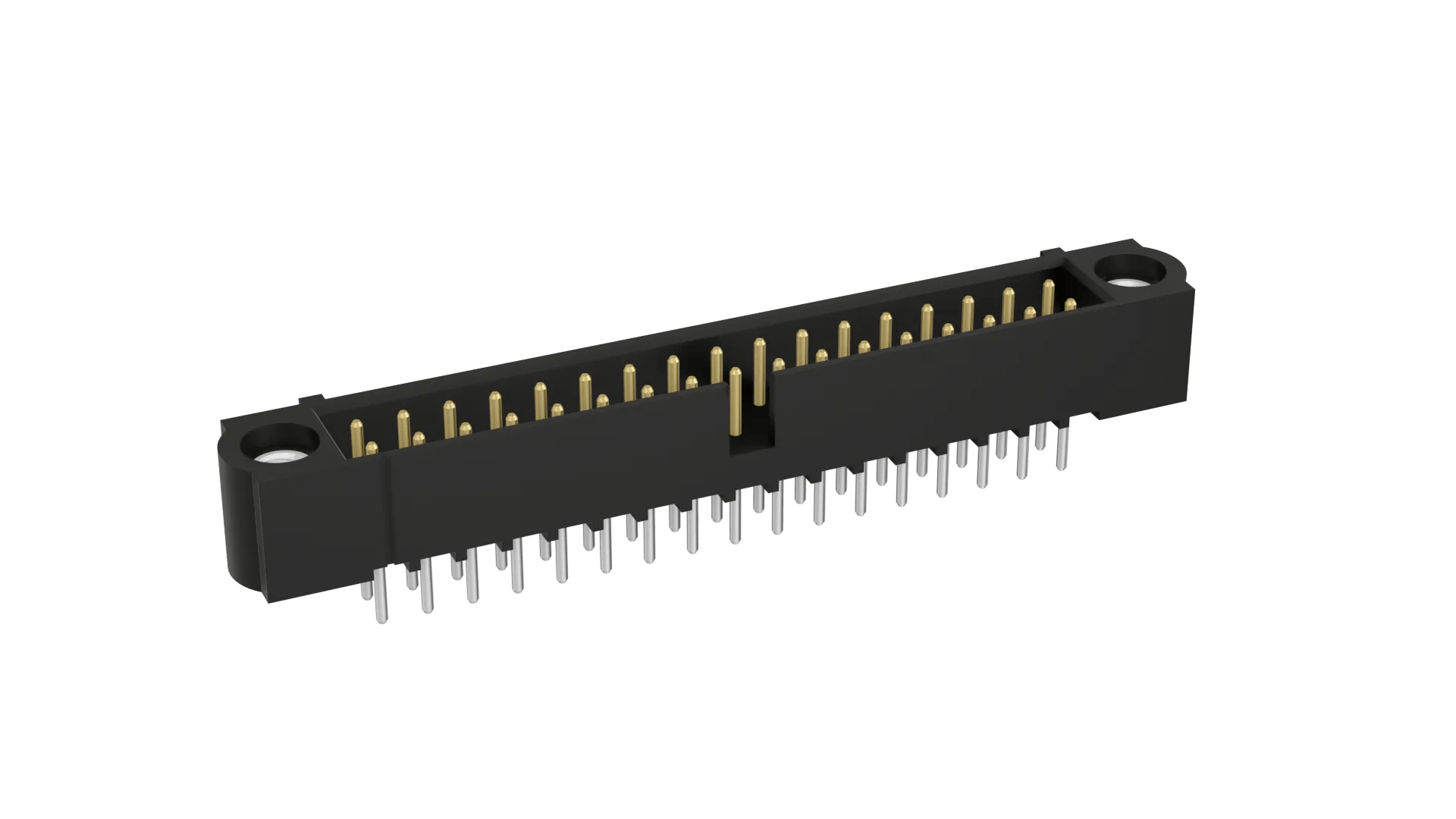

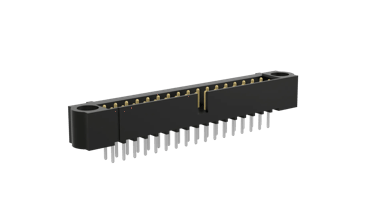

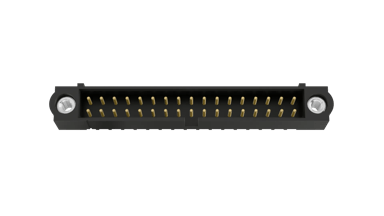

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Order Sample

Add to Favorites

Loading… Check availability

7 similar products View products

Traceparts account required

Product Description

Double Row, 3mm PC Tail connector with jackscrews (internal only) – 34 contacts (17+17).
Gold finish on contact area, Tin finish on termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-5003442 - 17+17 Pos. Male DIL Vertical Throughboard Conn. Jackscrews

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

Dependent on mating contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

1.916g

Overall Dimensions (L x W x D) in mm:

44.00 x 6.00 x 8.85

Thread Size:

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.30mm

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles

Frequently Asked Questions Ask a Question

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
