4 Pos. Male SIL Vertical Throughboard Conn. 101Lok
4.00mm Pitch High-Reliability Connector - Datamate Power
Made to order
11 similiar products View products

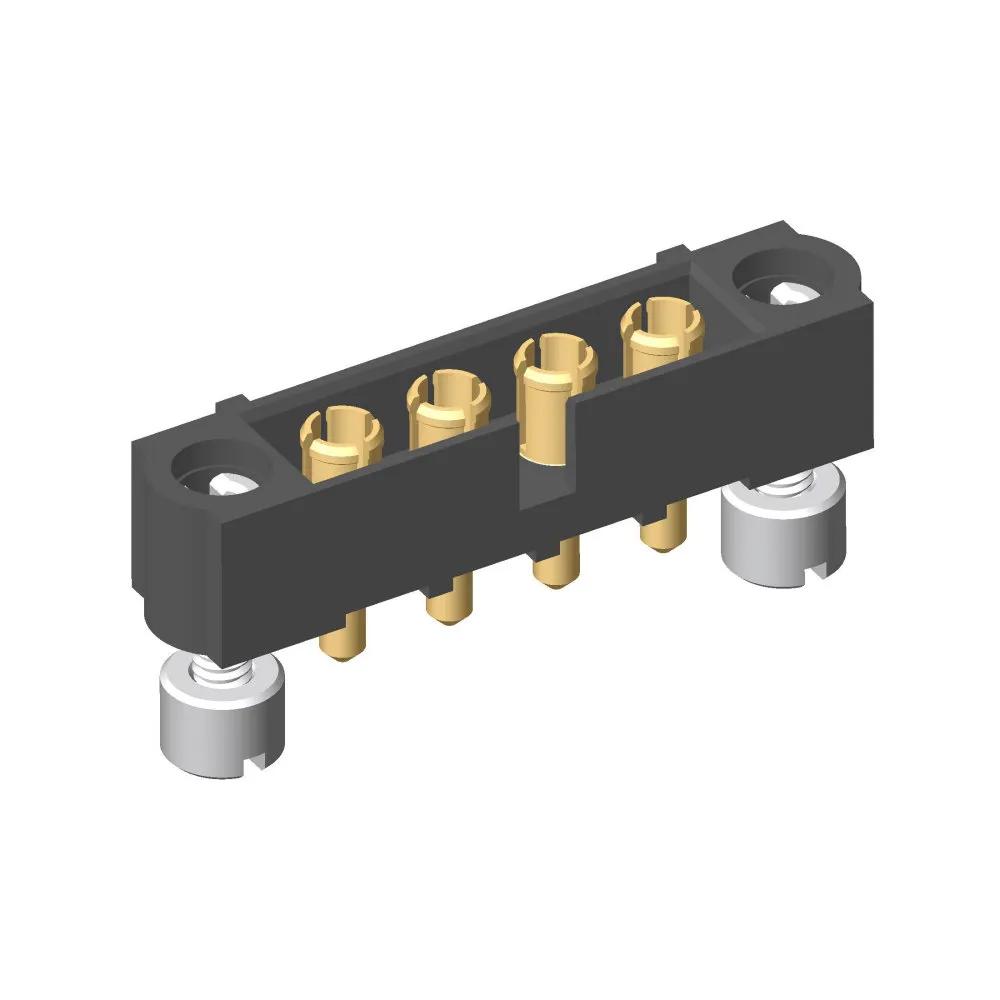

- 101Lok retainers + 5mm board mount (with slotted nuts), 4 x power contacts assembled for vertical PCB connection. For spare board mount nuts, order M80-2130000B.
- Rated to 40A nominal, 3.5mm length PC Tail. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
40A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
101Lok Bayonet Receptacle with Board Mount Stud and Slotted Nuts
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
26.00 x 6.00 x 11.55
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
