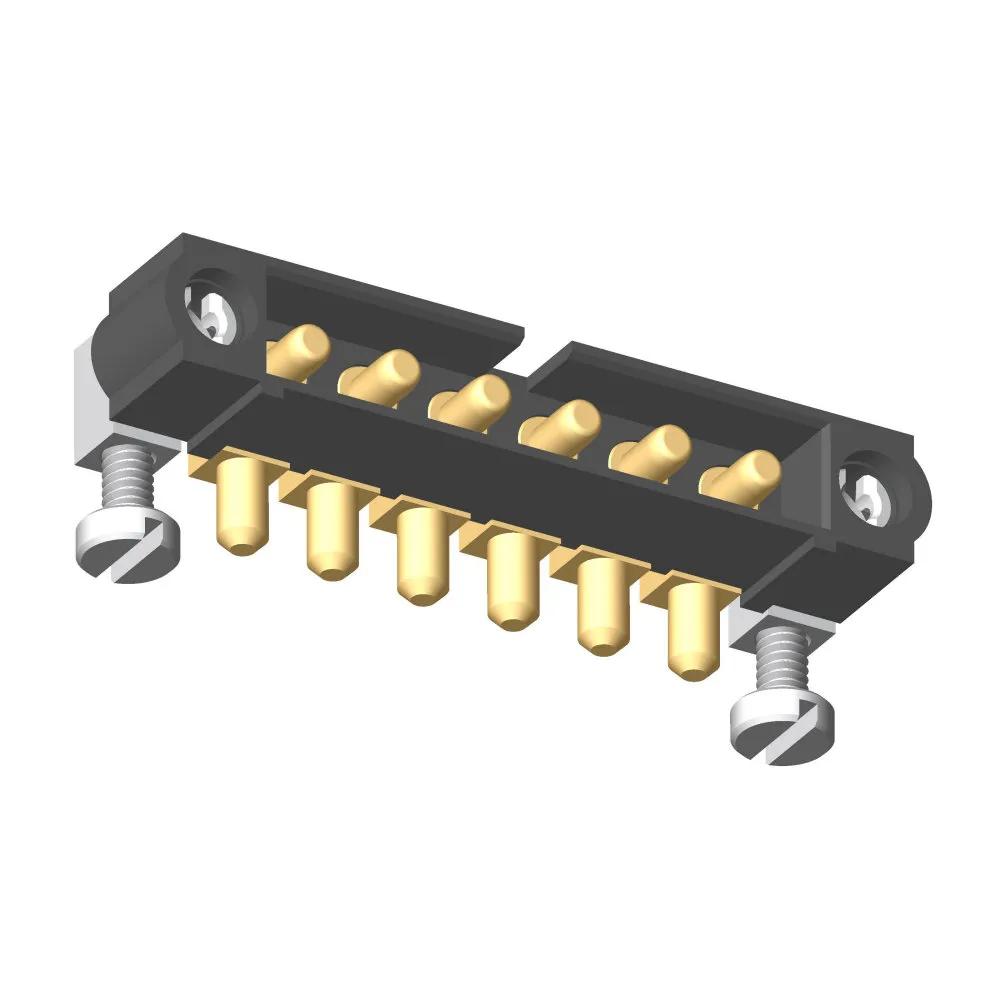

101Lok retainers with 5mm board mount, 6 x high power contacts assembled for horizontal PCB connection.
Rated to 40A nominal, 3.5mm length PC Tail. Gold finish on contact area and termination. For spare board mount bolts, order M80-2270000B.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details
Out of Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
101Lok Receptacle with Board/Front Panel Mount
Number of Rows:
1
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
6
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
40A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
5.165g
Dimensions:
34.00 x 7.55 x 9.50
Thread Size:
M2
PC Tail Length:
3.50mm
Height of Connector above PCB:
6.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-5000000MD-XX-XXX-00-000.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate power and coax contacts
Product Information
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Reports
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS - M80-5000000MD-06-PM3-00-000
