2 Pos. Male SIL Horizontal Throughboard Conn. 101Lok
4.00mm Pitch High-Reliability Connector - Datamate Power
Made to order
7 similiar products View products

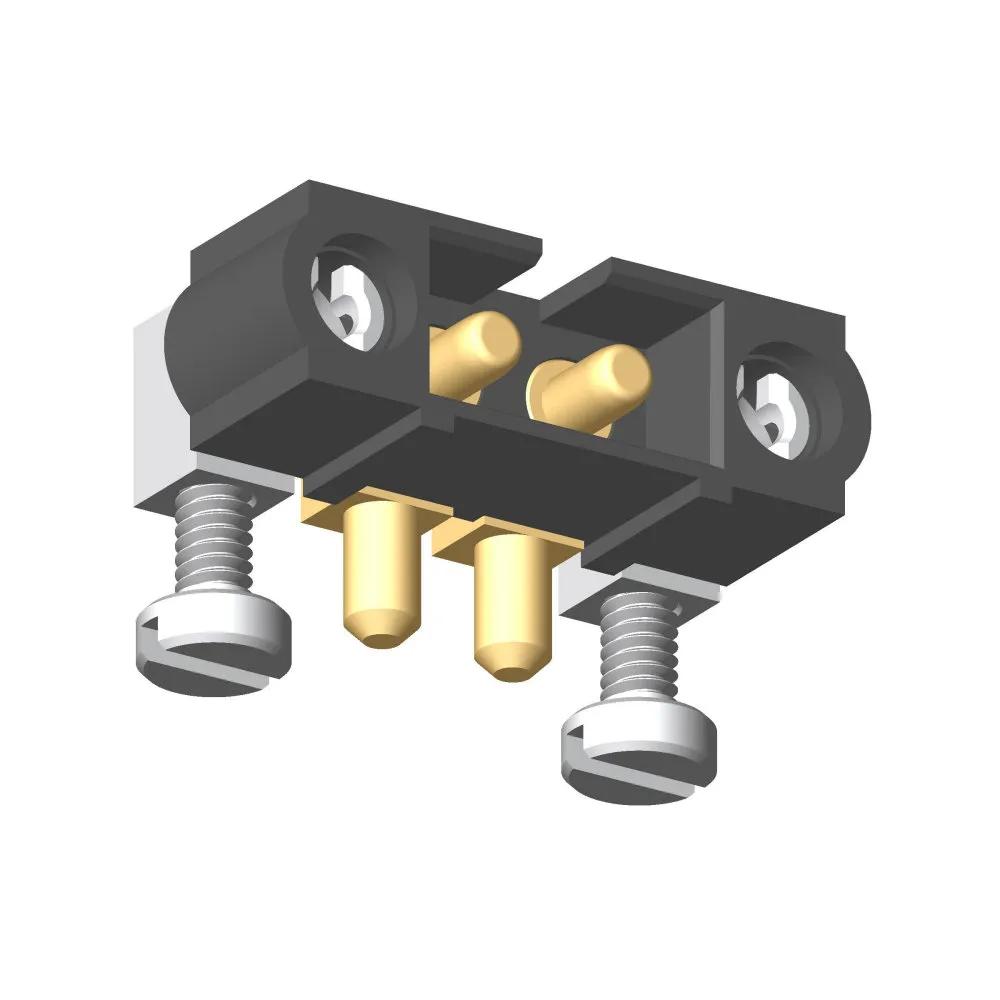

- 101Lok retainers with 5mm board mount, 2 x high power contacts assembled for horizontal PCB connection.
- Rated to 40A nominal, 3.5mm length PC Tail. Gold finish on contact area and termination. For spare board mount bolts, order M80-2270000B.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
40A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
101Lok Bayonet Receptacle with Board Mount Stud
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
18.00 x 7.55 x 9.50
Height of Connector above PCB:
Length of Throughboard Tail:
