M80-5000000MB-09-339-00-000

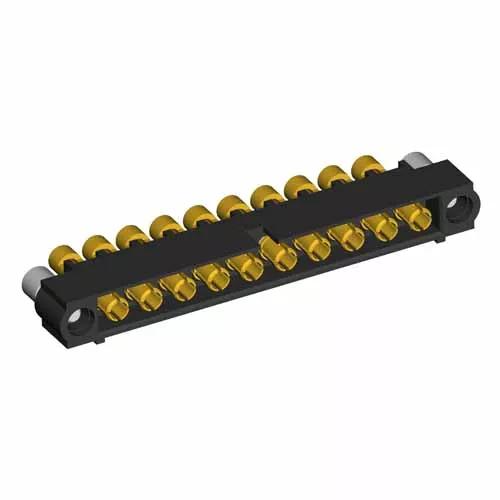

9 Pos. Male SIL 20AWG Cable Conn. Kit, Reverse Fix


4.00mm Pitch High-Reliability Connector - Datamate Power

  • Complete kit: housing (with Reverse fix jackscrews, hex socket head) with 9 x power contacts supplied loose.

  • Power crimp contact suitable for 20 AWG. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C005XX.

View Technical Details & Downloads


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Floating Jackscrew with Hex Socket Head (Reverse Fix)

  • Number of Rows:

    1

  • Connector Orientation:

    Straight

  • Side Stackable:

    No

  • Number of Special (Power or Coax) Contacts:

    9

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    5A max per contact

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Brass

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Single Pack

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    4.00mm (0.157")

  • Weight:

    6.222g

  • Dimensions:

    46.00 x 6.00 x 14.00

  • Thread Size:

    M2

  • Wire Size:

    20 AWG

Downloads

    Technical Documentation

  • Outgassing data for Harwin products (plastics)

  • Environmental Compliance

  • RoHS - M80-5000000MB-09-339-00-000

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
