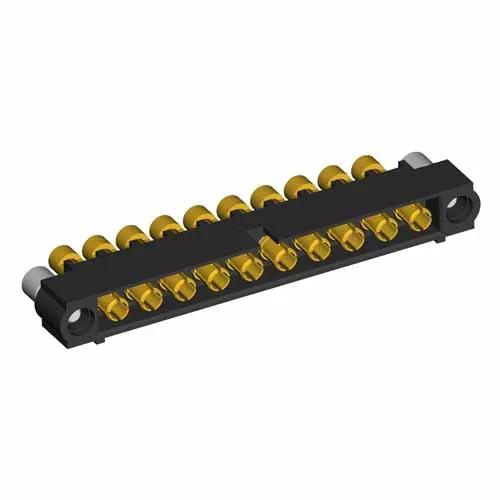

4.00mm Pitch High-Reliability Connector - Datamate Power
Complete kit: housing (with Reverse fix jackscrews, hex socket head) with 3 x power contacts supplied loose.
Power solder contact suitable for 16 AWG. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Floating Jackscrew with Hex Socket Head (Reverse Fix)
Number of Rows:
1
Connector Orientation:
Straight
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
3
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
10A max per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Single Pack
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
3.001g
Dimensions:
22.00 x 6.00 x 12.70
Thread Size:
M2
Wire Size:
16 AWG
