M80-5000000M5-12-333-00-000

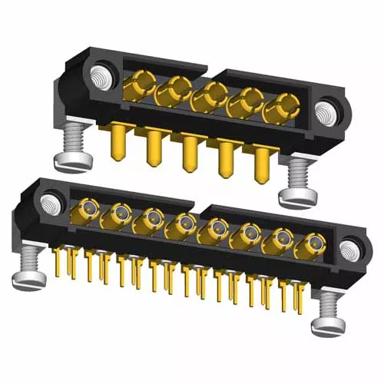

12 Pos. Male SIL Horizontal Throughboard Conn. Jackscrews


4.00mm Pitch High-Reliability Connector - Datamate Power

  • Jackscrews + 5mm board mount (with slotted bolts), 12 x power contacts assembled for horizontal PCB connection. For spare board mount bolts, order M80-2270000B.

  • 3.5mm length PC Tail. Gold finish on contact area and termination.

  • For complete pin numbering or pin out information, see Component Specification C005XX.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Technical Details

Specifications

  • Contact Pitch:

    4.00mm (0.157")

  • Contact Gender:

    Male/Plug

  • Connector Orientation:

    Horizontal

  • Style of Jackscrews:

    Internal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    1

  • Number of Special (Power or Coax) Contacts:

    12

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Height of Connector above PCB:

    6.00mm

  • PC Tail Length:

    3.50mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    PC Tail / Throughboard

  • Current Rating:

    20A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    8.149g

  • Dimensions:

    58.00 x 8.60 x 9.50

  • Operating Temperature:

    -55°C to +125°C

  • Polarised:

    Yes

  • Cuttable:

    No

  • Housing Colour:

    Black

  • Thread Size:

    M2
