M80-5000000M5-08-33A-00-000

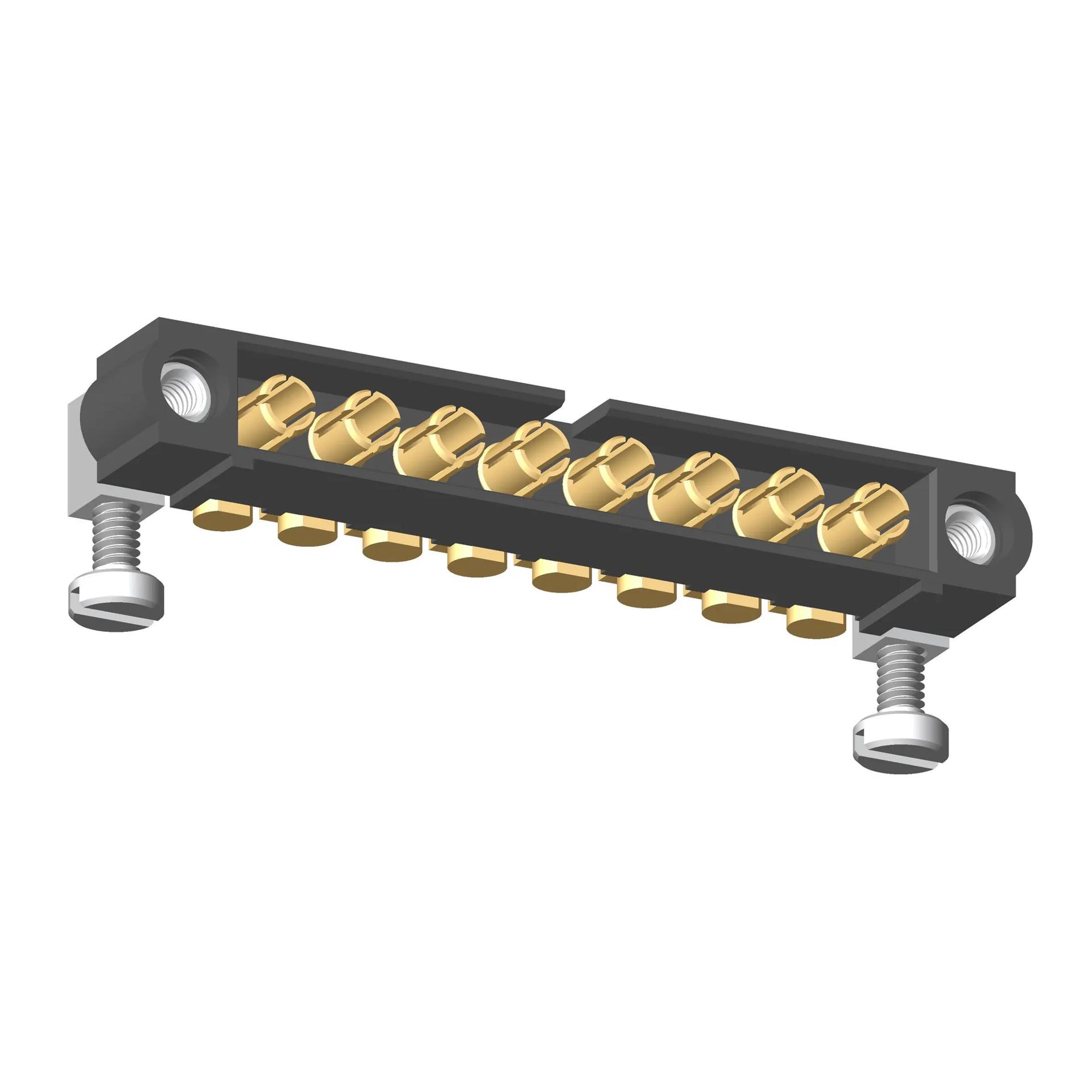

8 Pos. Male SIL Horizontal Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

Add to Favorites

54 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Jackscrews + 5mm board mount (with slotted bolts), 8 x power contacts assembled for horizontal PCB connection. For spare board mount bolts, order M80-2270000B.
  • Surface Mount power contacts. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

8

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

5.824g

Overall Dimensions (L x W x D) in mm:

42.00 x 8.60 x 9.50

Thread Size:

M2

Height of Connector above PCB:

6.00mm
