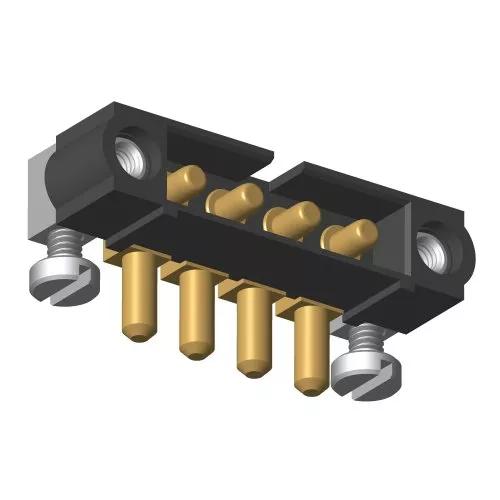

4 Pos. Male SIL Horizontal Throughboard Conn. Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Power
- Jackscrews + 5mm board mount (with slotted bolts), 4 x high power contacts assembled for horizontal PCB connection. For spare board mount bolts, order M80-2270000B.
- Rated to 40A nominal, 5mm length PC Tail. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
40A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
26.00 x 8.60 x 11.00
Height of Connector above PCB:
Length of Throughboard Tail:
Frequently Asked Questions Ask a Question
Are the board/panel mount bolts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount bolts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2270000B to order more.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
