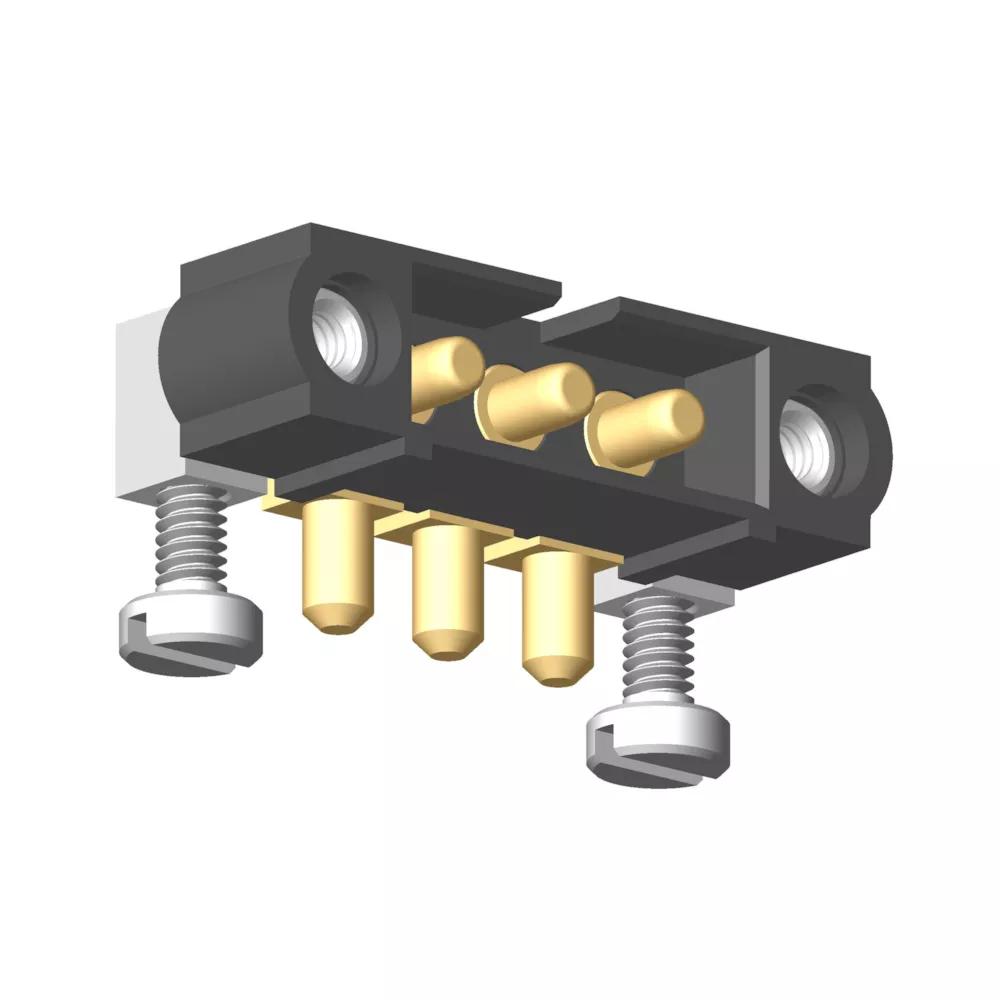

Jackscrews + 5mm board mount (with slotted bolts), 3 x high power contacts assembled for horizontal PCB connection. For spare board mount bolts, order M80-2270000B.
Rated to 40A nominal, 3.5mm length PC Tail. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see the Component Specification C005XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Internal Thread Fixing with Board/Front Panel Mount
Number of Rows
1
Connector Orientation
Horizontal
Country of Origin
GB
Side Stackable
No
Number of Power/Coax Contacts
3
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
40A max per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
PPS
Base Material of Contact
Beryllium Copper
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
4.00mm (0.157")
Weight
3.397g
Dimensions
22.00 x 8.60 x 9.50
Thread Size
M2
PC Tail Length
3.50mm
Height of Connector above PCB
6.00mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-5000000M5-XX-XXX-00-000.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate power and coax contacts
Product Information
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Reports
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-5000000M5-XX-PM3-00-000 series
RoHS Declaration - M80-5000000M5-03-PM3-00-000
