M80-5000000M3-08-332-00-000

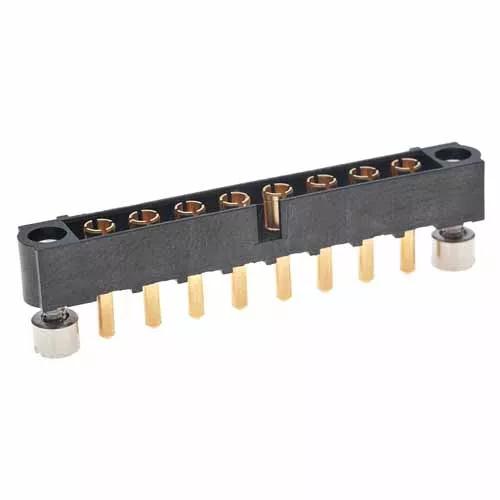

8 Pos. Male SIL Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

  • Jackscrews + 5mm board mount (with slotted nuts), 8 x power contacts assembled for vertical PCB connection. For spare board mount nuts, order M80-2130000B.
  • 5mm length PC Tail. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

8

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

3.879g

Overall Dimensions (L x W x D) in mm:

42.00 x 6.00 x 10.55

Thread Size:

M2

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

5.00mm

Availability

62 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 52
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 10

Questions & Answers Ask a Question

Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?

Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
