Home > M80-5000000M2-02-PM1-00-000
Active

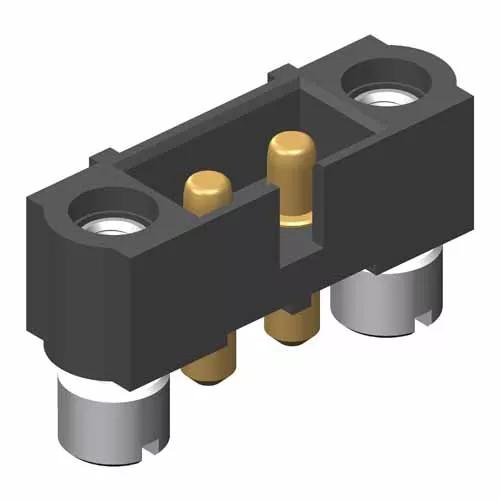

M80-5000000M2-02-PM1-00-000

2 Pos. Male SIL Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

  • Jackscrews + 3.5mm board mount (with slotted nuts), 2 x high power contacts assembled for vertical PCB connection.
  • Rated to 40A nominal, 3.5mm length PC Tail. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

40A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Jackscrew with Board Mount

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

2

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.88g

Overall Dimensions (L x W x D) in mm:

18.00 x 6.00 x 9.05

Thread Size:

M2

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.50mm

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status4
Mouser Electronics Inc
Global
Status1

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-5000000M2-XX-XXX-00-000.pdf

ZIP

M80-5000000M2-02-PM1-00-000 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT002 - Datamate Voltage Proof, Voltage Flashover, and Insulation Resistance

PDF

Test Report HT004 - Datamate J-Tek Environmental - Vibration, Shock, Bump, Acceleration and other tests

PDF

Test Report HT015 - Datamate Environmental (Vibration, Shock, Bump) - J-Tek and 101Lok

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-5000000M2-XX-PM1-00-000 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

OTHER DOWNLOADS

PDF

Catalog page - Datamate Power Male Vertical Throughboard

PDF

Catalog page - Datamate Power Standard products

PDF

Catalog page - Datamate Mix-Tek Specification

PDF

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles

PDF

Catalog page - Datamate Introduction

PDF

Product Summary - Datamate Mix-Tek Off-The-Shelf Connectors
