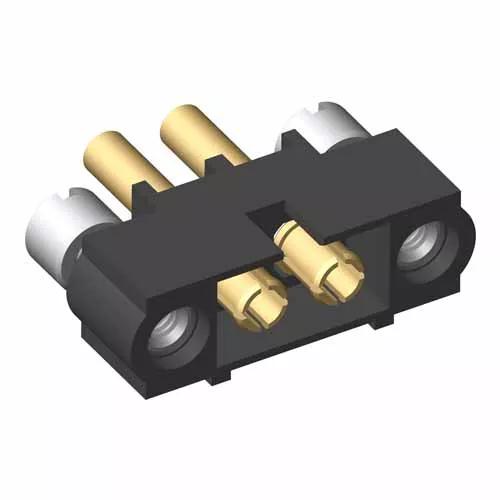

2 Pos. Male SIL 20AWG Cable Conn. Kit, Panel Mount
4.00mm Pitch High-Reliability Connector - Datamate Power
- Complete kit: housing (with Jackscrews + 3.5mm panel mount) with 2 x power contacts supplied loose. For spare panel mount nuts, order M80-2130000B.
- Power crimp contact suitable for 20AWG. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
Cable Conductor Size:
5A max per contact
-55°C to +125°C
Style of Jackscrews:
Internal Thread Jackscrew with Front Panel Mount Stud and Slotted Nuts (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
18.00 x 6.00 x 14.00
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. The torque value for mating jackscrews is 23cmN max. Both values are given in the Component Specification C005xx (page 14).
