Active Product

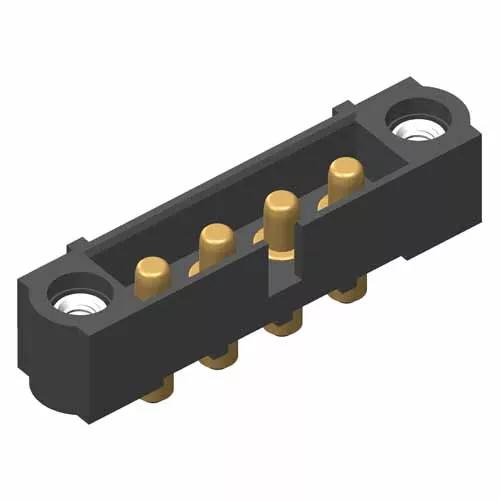

M80-5000000M1-04-PM1-00-000

4 Pos. Male SIL Vertical Throughboard Conn. Jackscrews

4.00mm Pitch High-Reliability Connector - Datamate Power

Add to Favorites

7,510 in stock   Check availability

6 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Jackscrews, 4 x high power contacts assembled for vertical PCB connection.
  • Rated to 40A nominal, 3.5mm length PC Tail. Gold finish on contact area and termination.
  • For complete pin numbering or pin out information, see Component Specification C005XX.

Technical Details

Specification

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

40A max per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

Internal Thread Jackscrew (Standard Gender)

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

1

Number of Special (Power or Coax) Contacts:

4

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.947g

Overall Dimensions (L x W x D) in mm:

26.00 x 6.00 x 9.05

Thread Size:

M2

Height of Connector above PCB:

5.55mm

Length of Throughboard Tail:

3.50mm

Frequently Asked Questions Ask a Question

What torque value should be used for these jackscrews?

The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c
