M80-5000000M1-04-331-00-000

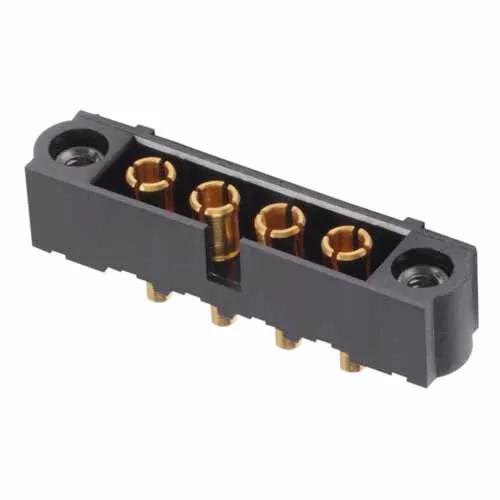

4 Pos. Male SIL Vertical Throughboard Conn. Jackscrews
4.00mm Pitch High-Reliability Connector - Datamate Power
151 in stock Check availability
6 similiar products View products
Samacsys account required
No login is required
Product Description
- Jackscrews, 4 x power contacts assembled for vertical PCB connection.
- 3.5mm length PC Tail. Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
4.00mm (0.157")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Current Rating:
20A max per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
1
Number of Special (Power or Coax) Contacts:
4
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
1.887g
Overall Dimensions (L x W x D) in mm:
26.00 x 6.00 x 9.05
Thread Size:
M2
Height of Connector above PCB:
5.55mm
Length of Throughboard Tail:
3.50mm
Mating Profiles:
Frequently Asked Questions Ask a Question
Does the M80-5000000M1-04-331-00-000 mate with the M80-4000000F1-04-PF1-00-000?
The M80-5000000M1-04-331-00-000 does not mate with the M80-4000000F1-04-PF1-00-000. Standard power contacts (3xx) are not compatible with high power contacts (Pxx), you would need to choose another standard power contact. So a mating PCB connector for M80-5000000M1-04-331-00-000 would be M80-4000000F1-04-321-00-000.
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
