Image may be representative. Refer to the product title for more information.

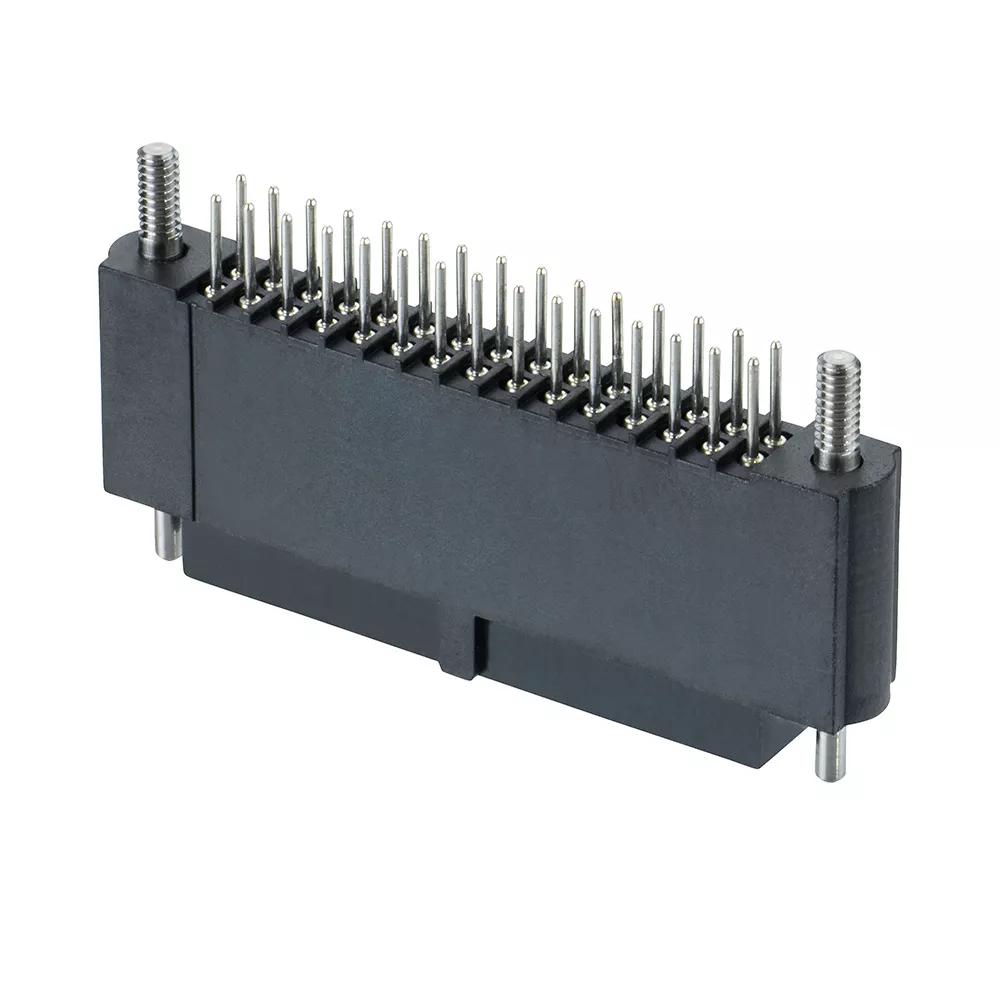

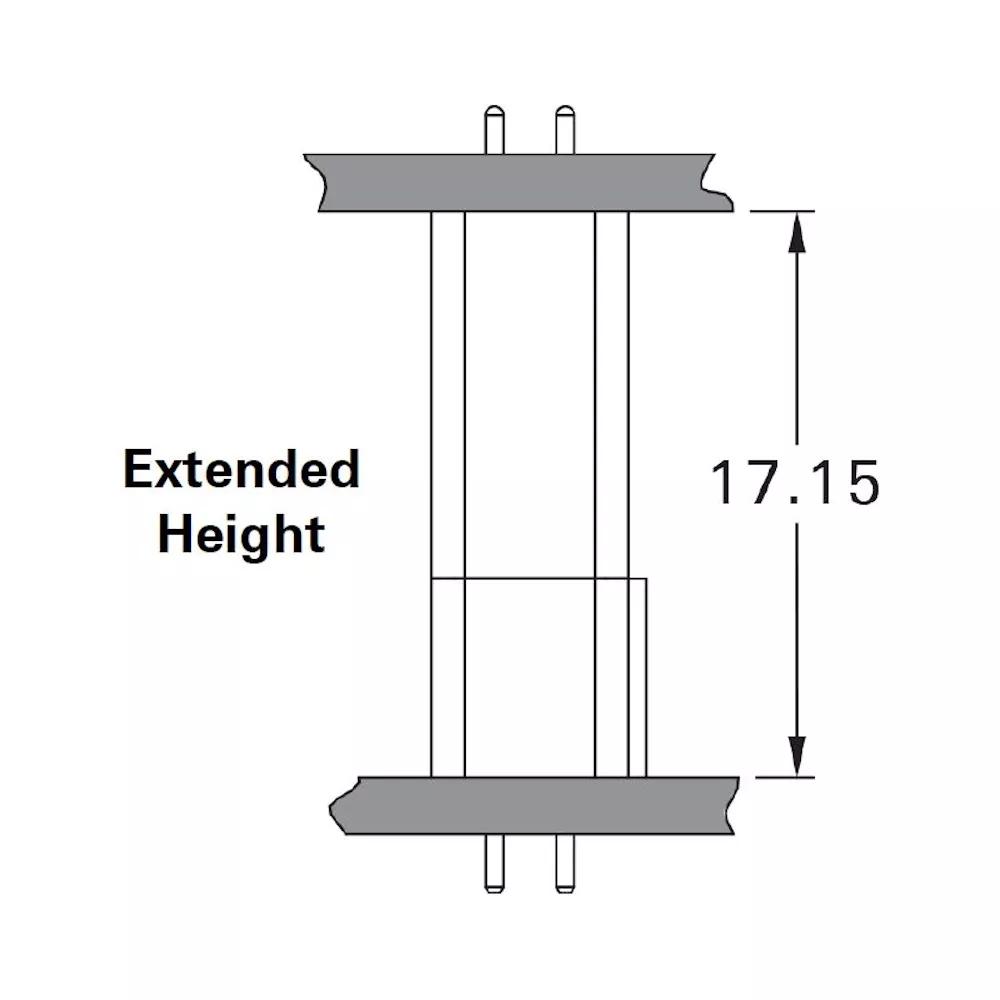

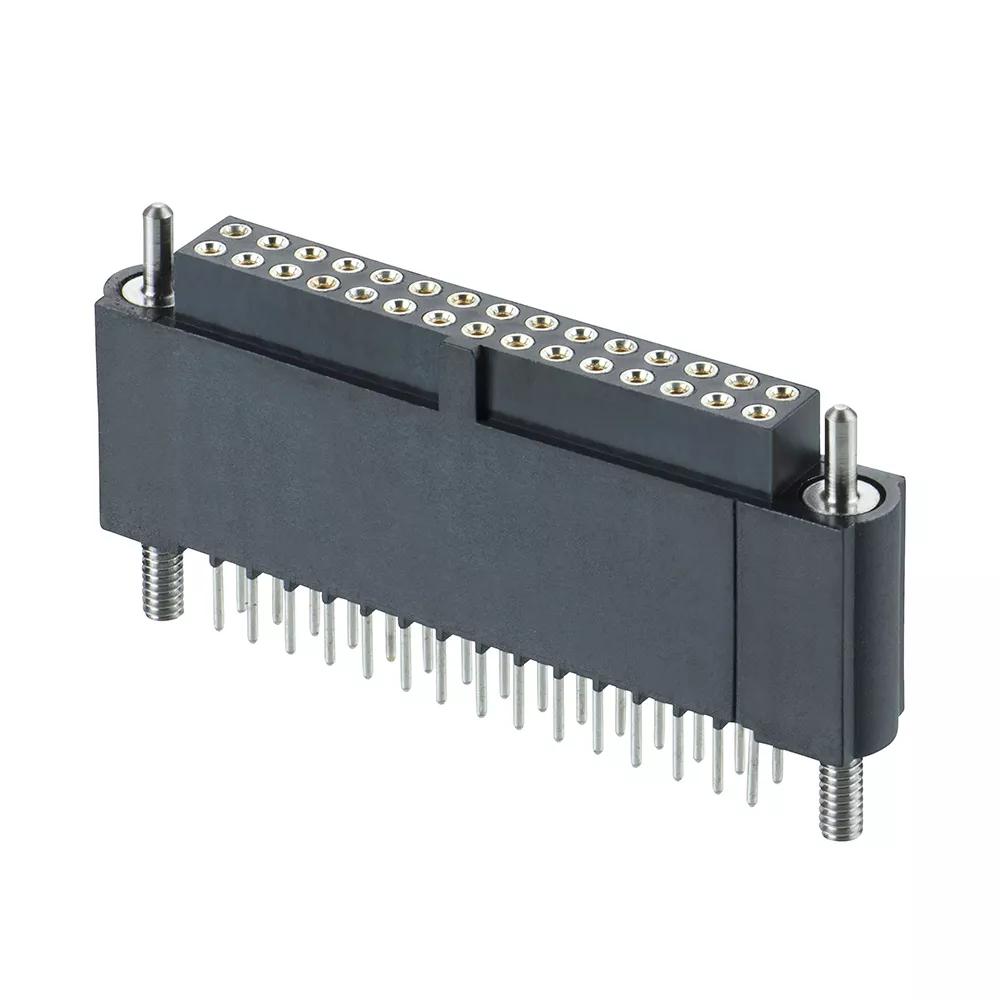

Double Row, 4.4mm PC Tail extended height connector with Guide pin + 5mm board mount studs - 30 contacts (15+15). Board-to-board height is 17.15mm when mated to a male vertical throughboard connector.
Gold finish on contact area, Tin finish on termination. Nuts for assembly to PCB to be purchased separately - use M80-2130000B slotted nuts or M80-2130000B hexagonal nuts.
For complete pin numbering or pin out information, see the Component Specification C005XX.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Style of Jackscrews
Guide Pin with Board/Front Panel Mount
Mating Pin Size
Ø0.5mm
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
GB
Side Stackable
No
Number of Signal Contacts
30
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
PPS
Base Material of Contact
Beryllium Copper contact clip, Brass shell
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
100% Tin over Nickel
Housing Colour
Black
Dimensions
Contact Pitch
2.00mm (0.079")
Weight
8.23g
Dimensions
40.00 x 5.50 x 20.70
Thread Size
M2
PC Tail Length
4.40mm
Height of Connector above PCB
15.70mm
