M80-4TE1005F3
5+5 Pos. Female DIL Extended Vertical Throughboard Conn. Guide Pin
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
Loading… Check availability
9 similar products View products
Traceparts account required
Product Description

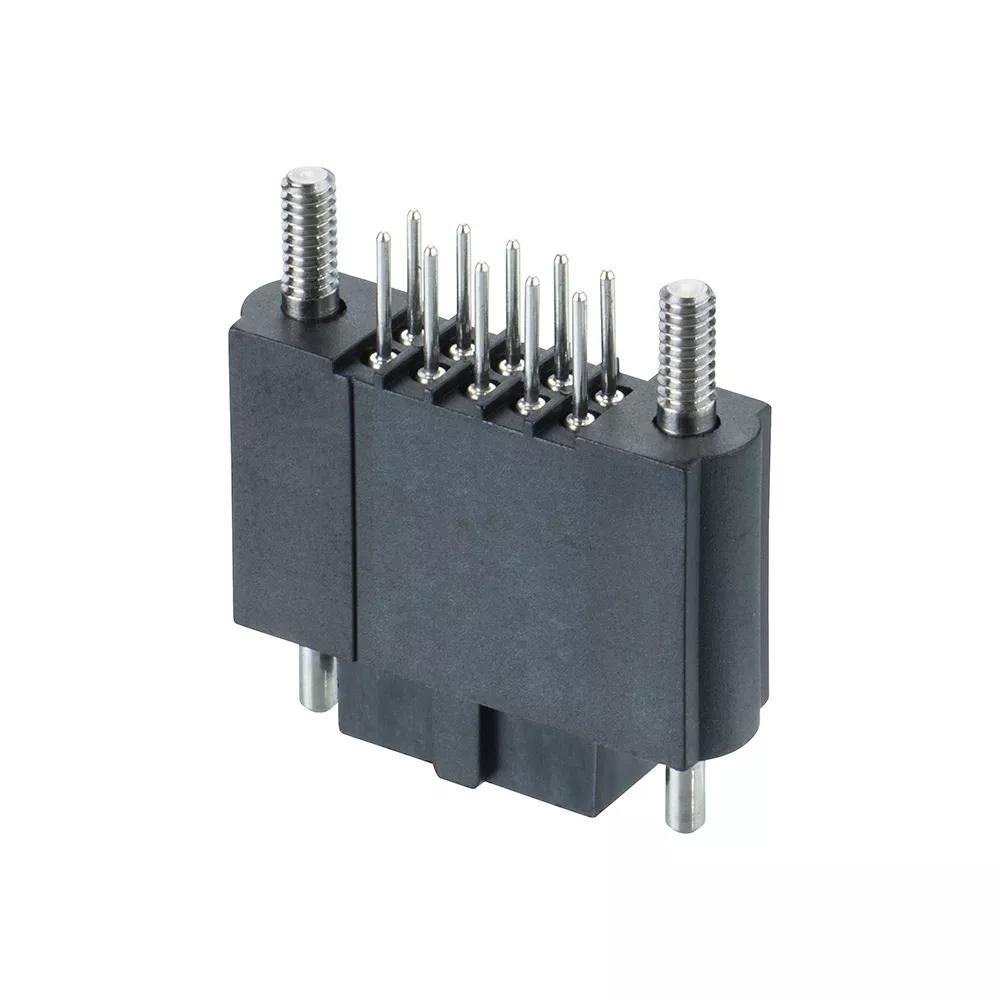

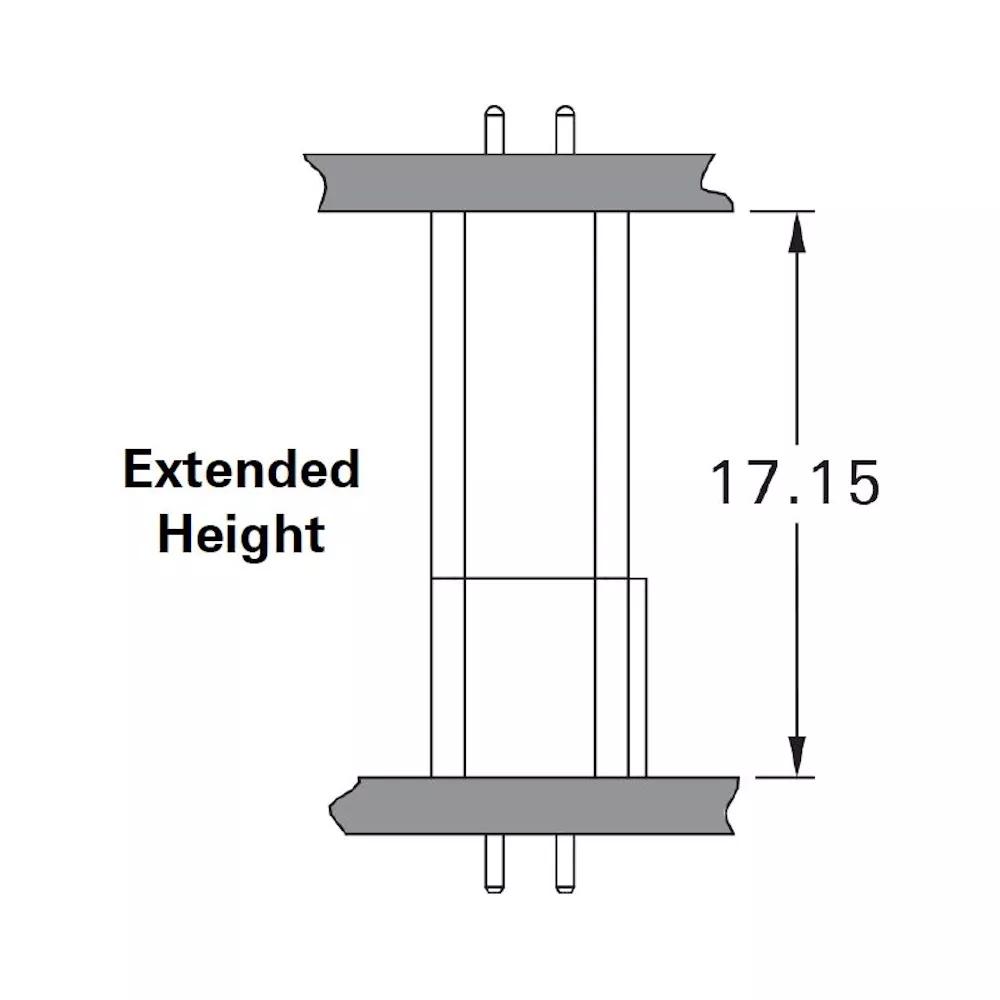

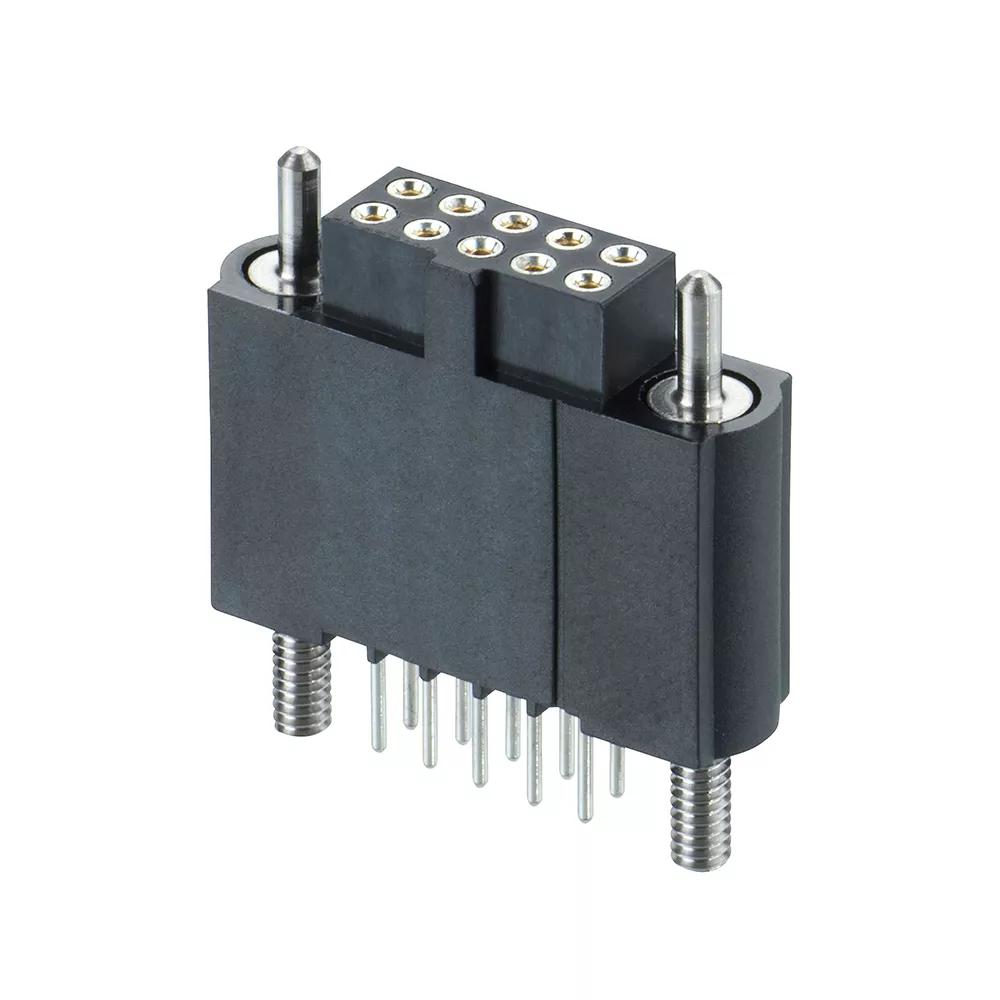

- Double Row, 4.4mm PC Tail extended height connector with Guide pin + 5mm board mount studs – 10 contacts (5+5). Board-to-board height is 17.15mm when mated to a male vertical throughboard connector.
- Gold finish on contact area and termination. Nuts for assembly to PCB to be purchased separately – use M80-2130000B slotted nuts or M80-2130000B hexagonal nuts.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Guide Pin with Board Mount Stud (Standard Gender)
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
10
Entry Style:
Top Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material:
PPS
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
3.847g
Overall Dimensions (L x W x D) in mm:
20.00 x 5.50 x 20.70
Thread Size:
M2
Height of Connector above PCB:
15.70mm
Length of Throughboard Tail:
4.40mm
Frequently Asked Questions Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
No, these connectors are not supplied with the board/panel mount nuts – you will need to order them separately. You have a choice of M80-2130000B (slotted circular nut), or M80-2430000B (hexagonal nut).
Was this answer useful?
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
