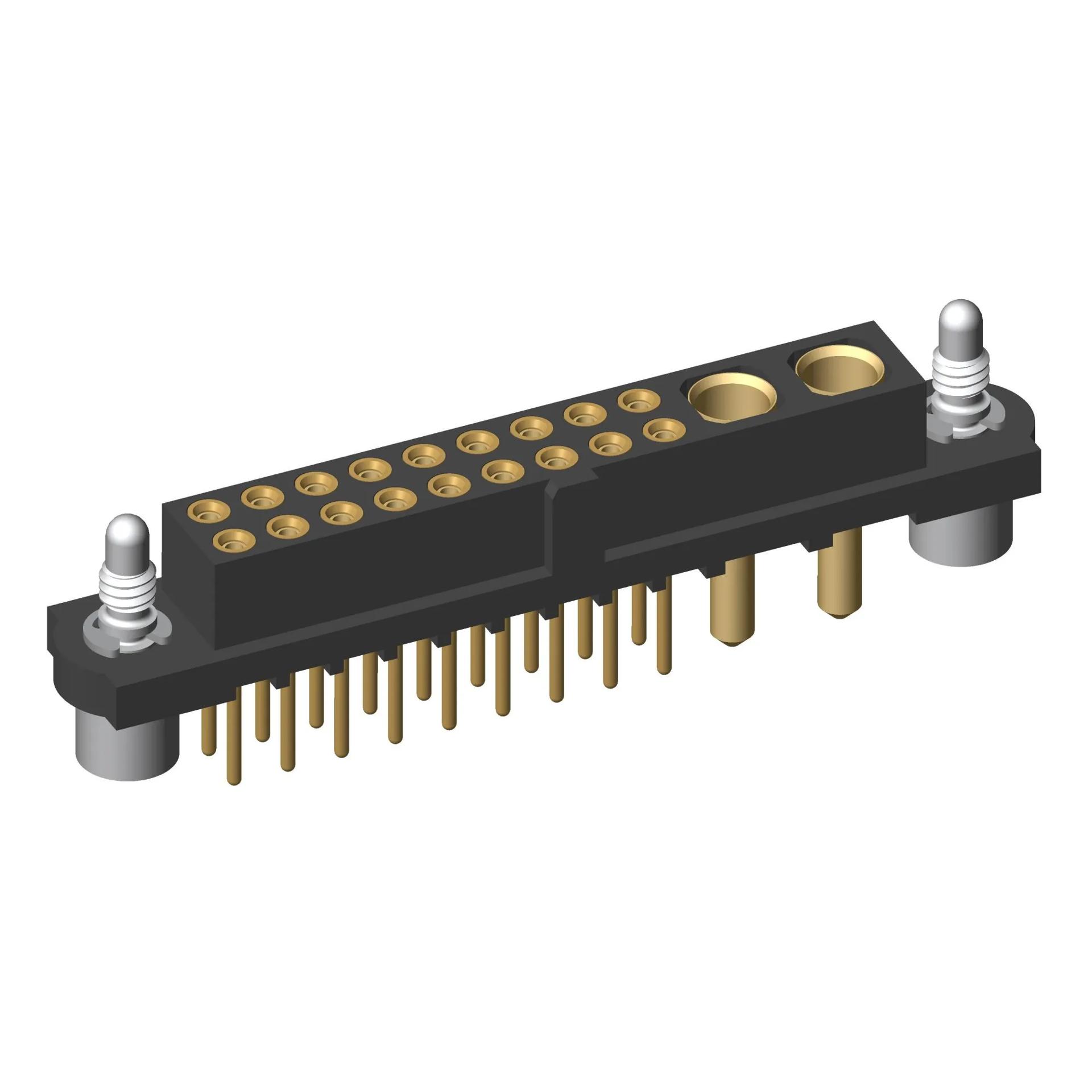

18+2 Pos. Female Signal+Power Vertical Throughboard Conn. Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Made to order
3 similiar products View products
- Jackscrew with hex socket head (floating with Guide Pin), 18 x signal and 2 x power contacts assembled for vertical PCB connection. 4.5mm length PC Tail signal contacts, 5mm length PC Tail power contacts.
- Signal: Gold finish on contact area, Tin finish on termination. Power: Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Floating Jackscrew and Guide Pin with Hex Socket Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
100% Tin over Nickel (signal), Gold (power)
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Brass (power)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
36.00 x 5.50 x 11.50
Height of Connector above PCB:
Length of Throughboard Tail:
4.50mm & 5.00mm
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
