Active Product

M80-4T15042FD

25+25 Pos. Female DIL Vertical Throughboard Conn. 101Lok

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

Order Sample

Add to Favorites

Made to order

8 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Double Row, 3mm PC Tail connector with 101Lok bayonet-style fixings (slotted head) – 50 contacts (25+25).
Gold finish on contact area, Tin finish on termination. Fast and simple 101° turn to fix connector to mating half.
For complete pin numbering or pin out information, see Component Specification C005XX.

M80-4T15042FD - 25+25 Pos. Female DIL Vertical Throughboard Conn. 101Lok

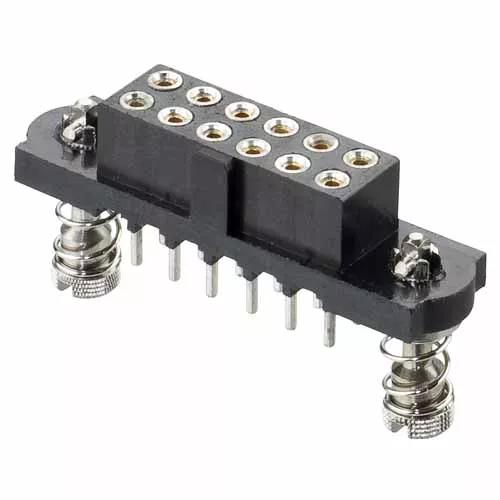

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Style of Jackscrews:

101Lok Bayonet Fixing with Slotted Head

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

4.095g

Overall Dimensions (L x W x D) in mm:

60.00 x 5.50 x 10.88

Height of Connector above PCB:

5.18mm

Length of Throughboard Tail:

3.00mm

Mating Profiles:

Catalog page - Datamate J-Tek Mating Profiles
