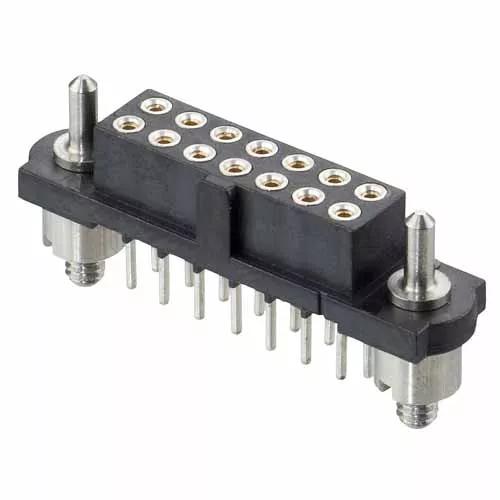

13+13 Pos. Female DIL Vertical Throughboard Conn. Guide Pin
2.00mm Pitch High-Reliability Connector - Datamate J-Tek
- Double Row, 3mm PC Tail connector with Guide pin + 5mm board mount (slotted nuts) jackscrews – 26 contacts (13+13).
- Gold finish on contact area, Tin finish on termination. Slotted nuts provided for assembly to panel mount stud. For spare board mount nuts, order M80-2130000B.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
3.3A max individual contact, 3A max simultaneous (25°C)
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Guide Pin with Board Mount Stud (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
36.00 x 5.50 x 11.00
Height of Connector above PCB:
Length of Throughboard Tail:
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
Are the board/panel mount nuts supplied with this connector, or do I have to order them separately?
Yes, these connectors are supplied with the board/panel mount nuts – they will come packaged in a separate bag. If you need some spares, you can use part number M80-2130000B to order more.
What torque value should be used for these jackscrews?
The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).
