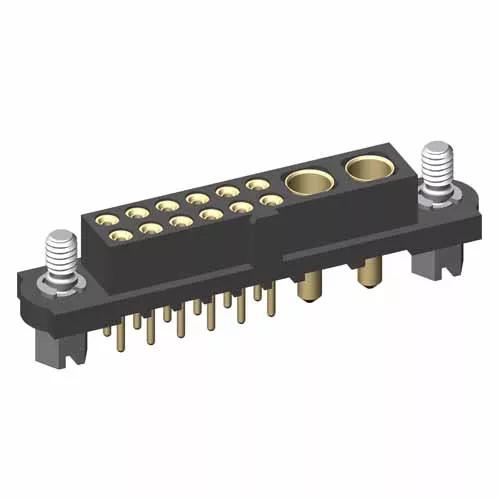

12+2 Pos. Female Signal+Power Vertical Throughboard Conn. Jackscrews
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Made to order
0 similiar products View products
- Hexagonal slotted jackscrews, 12 x signal and 2 x power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
- Gold finish on contact area and termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Brass (power)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.00 x 5.50 x 9.00
Height of Connector above PCB:
Length of Throughboard Tail:
3.00mm and 3.50mm
Frequently Asked Questions Ask a Question
What torque value should be used for these jackscrews?
The torque value for mating jackscrews is 23cmN max. This value is given in the Component Specification C005xx (page 14).
