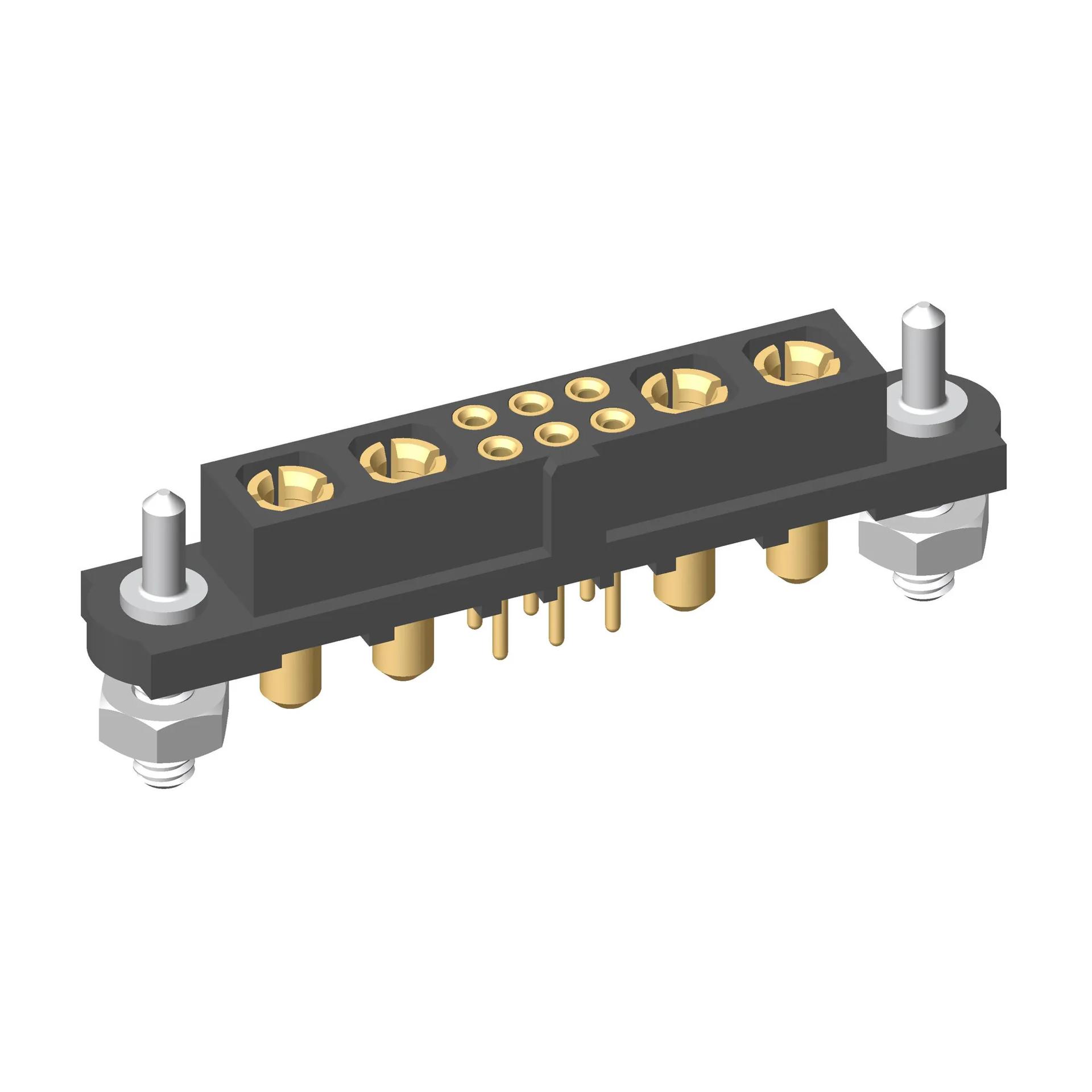

Guide pin + 5mm board mount jackscrews (with slotted nuts), 6 x signal and 4 x high power contacts assembled for vertical PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail high power contacts.
Gold finish on contact area and termination. For spare board mount nuts, order M80-2430000B.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details
Out of Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Guide Pin with Board/Front Panel Mount
Mating Pin Size:
Ø0.5mm (signal)
Number of Rows:
Mixed
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
4
Number of Signal Contacts:
6
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Beryllium Copper (power)
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
2.558g
Dimensions:
32.00 x 5.50 x 11.10
Thread Size:
M2
PC Tail Length:
3.00mm and 3.50mm
Height of Connector above PCB:
5.68mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M80-4T10605FH-02-PF1-02-PF1.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
Plating thickness on Datamate power and coax contacts
Product Information
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate Mix-Tek range (HRi)
Test Reports
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
RoHS - M80-4T10605FH-02-PF1-02-PF1
