M80-4D10205F1-04-325-00-000

M80-4D10205F1-04-325-00-000

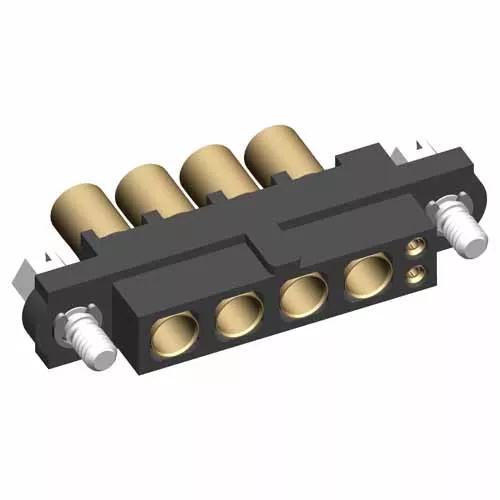

2+4 Pos. Female 22AWG+12AWG Cable Conn. Kit, Jackscrews

Traceparts account required

M80-4D10205F1-04-325-00-000

2+4 Pos. Female 22AWG+12AWG Cable Conn. Kit, Jackscrews


2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Technical Details

Specifications

  • Contact Pitch:

    2.00mm/4.00mm (0.079"/0.157")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Straight

  • Wire Size:

    22 AWG + 12 AWG

  • Mating Pin Size:

    Ø0.5mm (signal)

  • Style of Jackscrews:

    Floating Jackscrew with Hex Slotted Head (Standard Gender)

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    Mixed

  • Number of Signal Contacts:

    2

  • Number of Special (Power or Coax) Contacts:

    4

  • Finish / Plating on Termination:

    Gold

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Beryllium Copper contact clip + Brass shell (signal), Brass (power)

  • Housing Material:

    PPS

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Single Pack

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Connection Type:

    Cable (Solder + Crimp)

  • Current Rating:

    Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

  • Weight:

    2.91g

  • Dimensions:

    28.00 x 5.50 x 13.00

  • Operating Temperature:

    -55°C to +125°C

Downloads

    Environmental Compliance

  • M80-4D10205F1-04-325-00-000

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Outgassing data for Harwin products (plastics)
