  • M80-4C10605FC - Datamate J-Tek Female DIL Cable Connector Kit
  • M80-4C10605FC - Datamate J-Tek Female DIL Cable Connector Kit

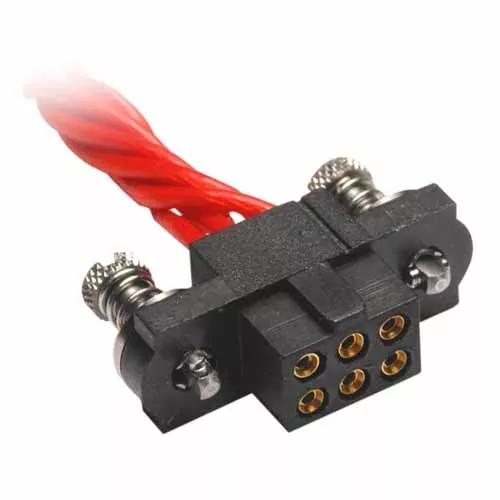

Representative image of product family.

Datamate J-Tek Female DIL Cable Connector Kit - M80-4C10605FC

2.00mm Pitch Datamate J-Tek

  • Complete kit: housing with slotted head 101Lok bayonet-style fixings fitted, 6 x contacts loose - Gold finish on contact clip and crimp shell.
  • Small Bore - suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Spare contacts = M80-0130005.
  • 2.00mm Pitch High-Reliability Datamate connector system.

Active

Limited availability or made-to-order (check alternatives for popular products)

RoHS Compliant - 2011/65/EU

(Requires exemption 6c)

  • Specification

  • Related products

  • Materials

  • Dimensions

Product Type: 2.00mm Pitch Datamate J-Tek
Contact Pitch: 2.00mm (0.079")
Contact Gender: Female/Socket/Jack
Connector Orientation: Straight
Connection Type: Cable (Crimp)
Mating Pin Size: Ø0.5mm
Current Rating: 3A
Operating Temperature: -55°C to +125°C
Style of Jackscrews: 101Lok
Hand Crimp Tool: M22520/2-01
Positioner: T5747
Insertion / Removal Tool: Z80-280
Dummy Contacts (for keying): M80-023
Spare Contacts: M80-0130005
Product Family: M80-4C1XXXXFC
Finish/Plating on Termination: Gold
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Beryllium Copper contact clip, Brass shell
Housing Material: PPS
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.227g
Packaging Style: Bulk/Loose
Number of Rows: 2
Total Number of Contacts: 6
Body Length: 16mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
Conductor Size of compatible cable: 24-28AWG
Mating Profiles/Heights

Mating Products

  • M80-5T10605MC

    Datamate J-Tek Male DIL Vertical PCB Connector

    Discover more
  • M80-5T10605ME

    Datamate J-Tek Male DIL Vertical PCB Connector

    Discover more
  • M80-5L10605MC

    Datamate J-Tek Male DIL Horizontal PCB Connector

    Discover more
  • M80-5L10605MD

    Datamate J-Tek Male DIL Horizontal PCB Connector

    Discover more
  • M80-5C10605MC

    Datamate J-Tek Male DIL Cable Connector Kit

    Discover more
  • M80-5D10605MC

    Datamate J-Tek Male DIL Cable Connector Kit

    Discover more
  • M80-5S10605MC

    Datamate J-Tek Male DIL Vertical PCB Connector

    Discover more
  • M80-5S20642MC

    Datamate J-Tek Male DIL Horizontal PCB Connector

    Discover more
  • View more

Alternative products

M80-4C10642FC - Datamate J-Tek Female DIL Cable Connector Kit

Closest alternative:

M80-4C10642FC

Datamate J-Tek Female DIL Cable Connector Kit
